7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

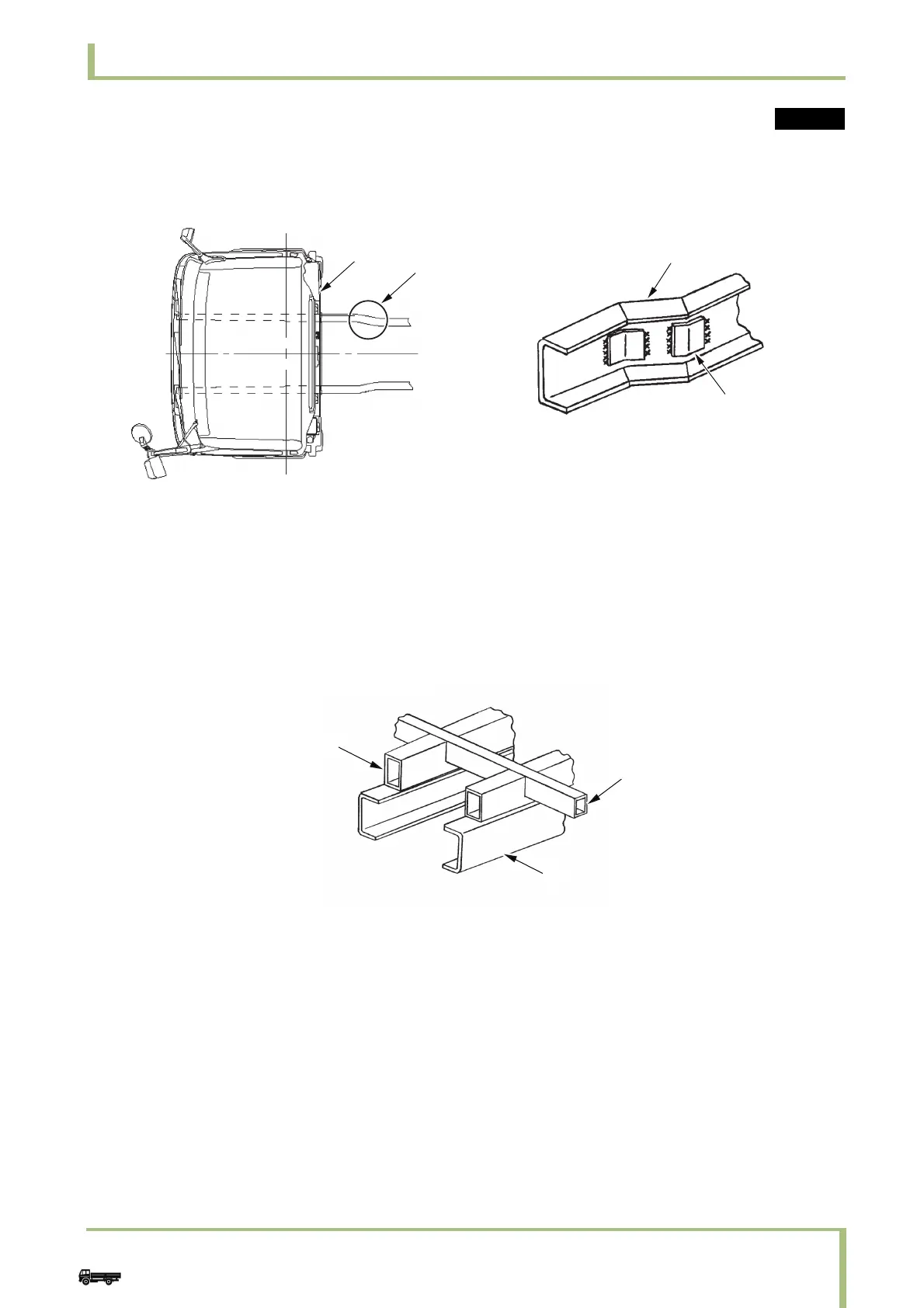

• If the chassis frame changes its width behind the cab back as shown in the picture below and the mounting
frame should extend forward beyond the width-changed portion, the mounting frame must also change its
width along the chassis frame. The portion of the mounting frame where the width changed must have the
internal surface reinforced with stiffeners as shown in the figure.
Other notes
• If, for the sake of a low deck design, the mounting frame and the cross sill must be arranged on the same
plane, pass the cross sill member through the mounting frame.
N31.20-2126-00
1
2
3
4
1Cab back
2 Width-changed portion
3Mounting frame
4Stiffener
N31.20-2128-00
1
3
2
1Mounting frame
2 Cross sill
3 Chassis frame
