7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

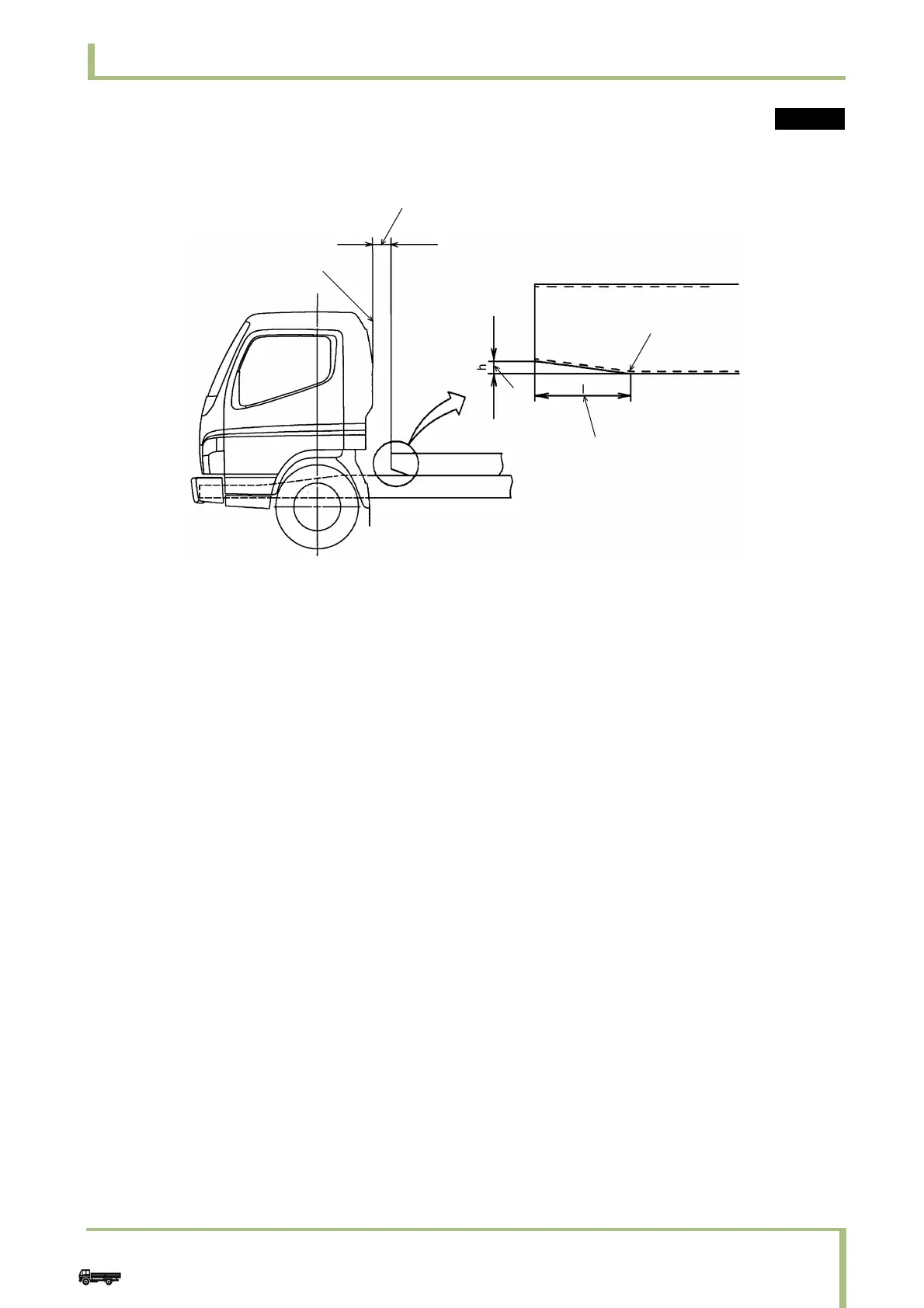

(c) If it is difficult to shape the front end of the mounting frame as described in Fig. 1 and Fig. 2, cut it to the
shape as shown in Fig. 3 before installation.
1CAB BACK
2 Less than 300 mm
3 "h" should be 2 to 3 mm
4 "I" should be 50 to 70 mm
5 This corner should be ground smoothly
