7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

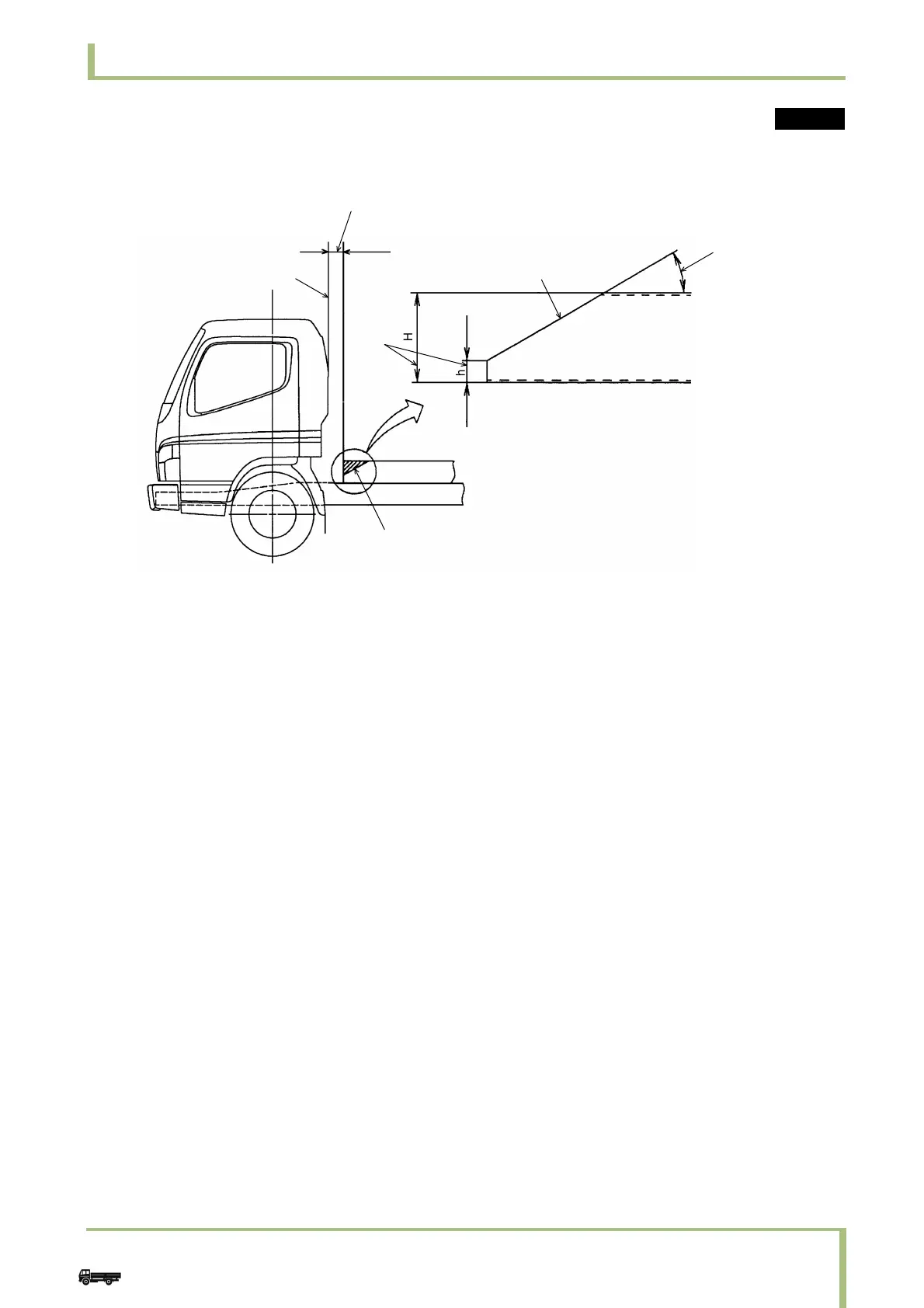

(b) The shape of the mounting frame front end as shown in Fig. 1 is highly desirable. However, if there is
enough room behind the cab, the shape as shown in Fig. 2 is also acceptable.
1CAB BACK
2 Less than 300 mm
3 "h" should be between a fourth and a fifth of "H"
4Left open
5Less than 30°
6 Cut off Obliquely
