7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
• Use the following procedure as a guide for
mounting the mounting frame on a crew cab
vehicle.

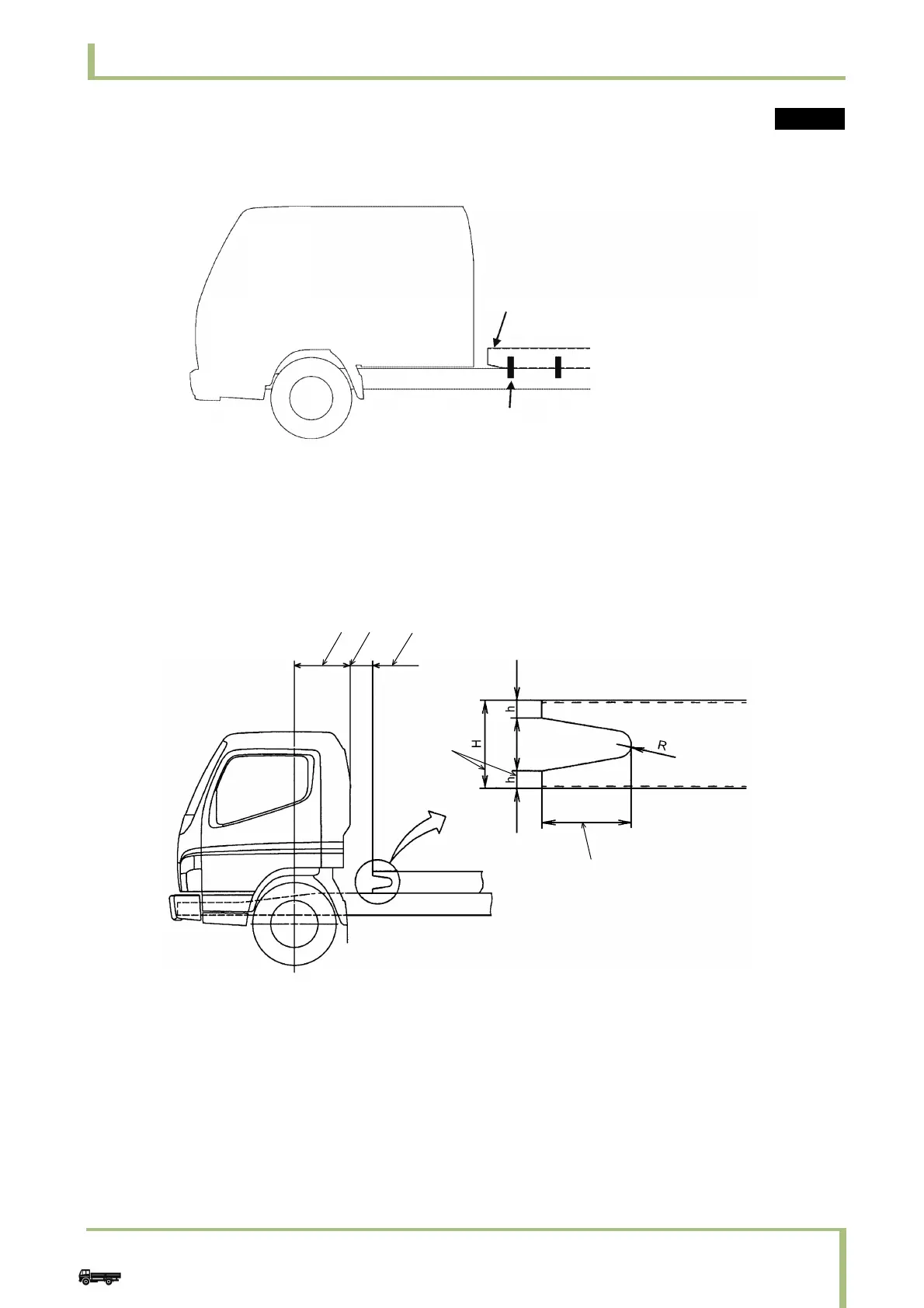

• Examples of front-end shape of mounting frames
(a) Install the mounting frame having the shape as shown in Fig. 1 to gradually reduce the stress concen-
trations in the front end.
1
2
1 Extend the mounting frame forwardly as much as possible.
2 Dispose the frontmost fastening member forwardly as much as possible in the mounting frame.
1525 mm
2CAB BACK
3 Extend the front end of the mounting frame as far
forward as possible; less than 115 mm
4 "h" should be between a fourth and a fifth of "H"
5DRILLING
6 "l" must not be less than 2/3H(two thirds of "H")
Cargo
