7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
Mounting Bracket
When U-bolts cannot be used with a particular body,
use mounting brackets in those positions to attach it
to the mounting frame. Use the following bracket
locations and installation procedures.
• Attach the mounting brackets to the chassis frame
with bolts whenever possible. Be especially careful
not to damage any pipes, hoses, and wiring
harnesses attached to or around the frame.
• Do not attach brackets close to the ends of cross
members, gussets or stiffeners. Brackets should
be installed at least 200 mm away from the end of
these parts.

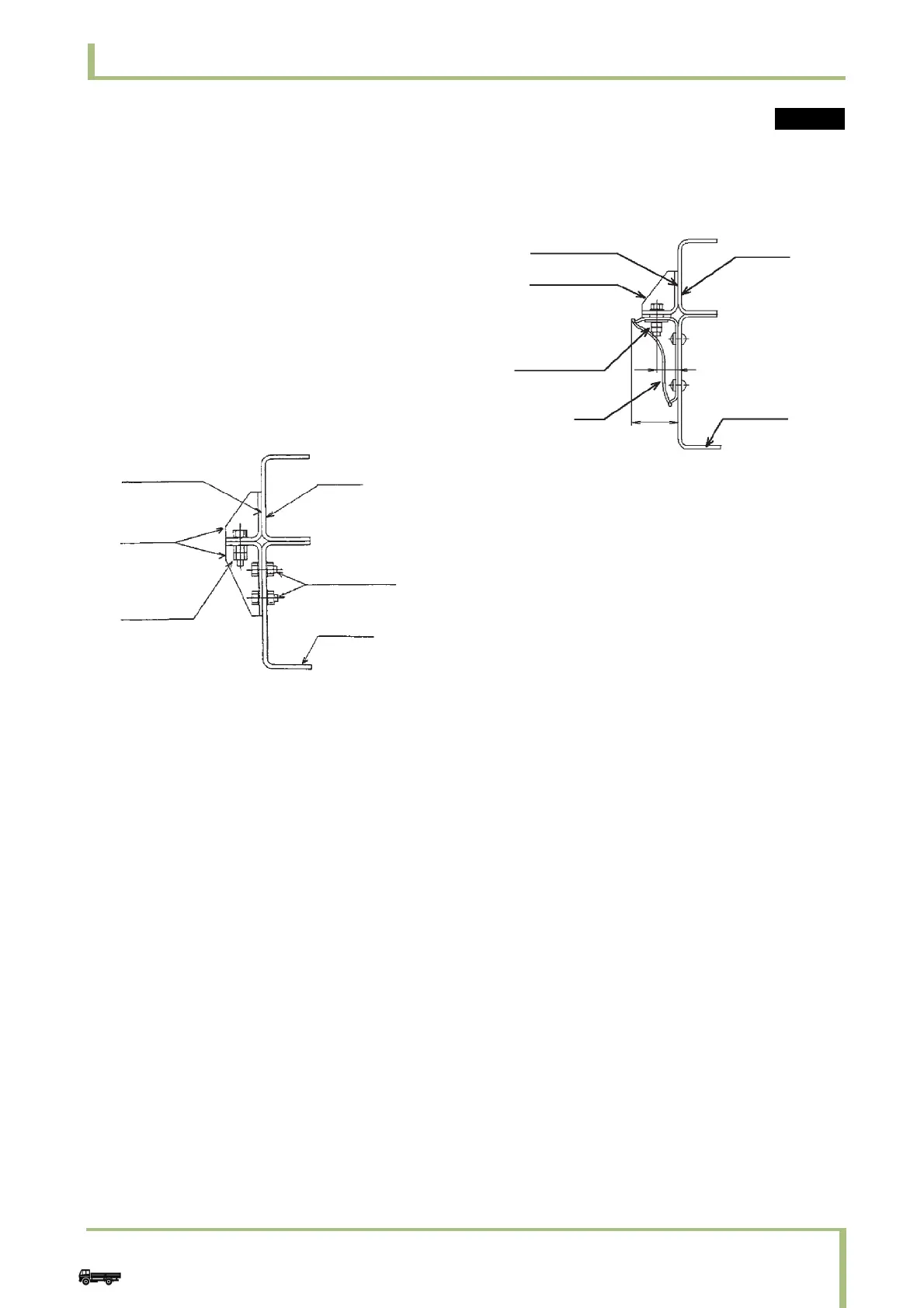

• As a maker option, the genuine rear body brackets
are available as shown below.
1 Attached by welding
2 Mounting bracket
3Use double nuts
4Mounting frame
5 Tighten the bolts and nuts in more than two locations.
6 Chassis frame
1 Attached by welding
2 Mounting bracket
3 Use double nuts With washer (more than
Ø32 mm)
4Genuine mounting bracket
5Mounting frame
6 Chassis frame
