132
7 Construction of bodies
7.2 Mounting frame
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

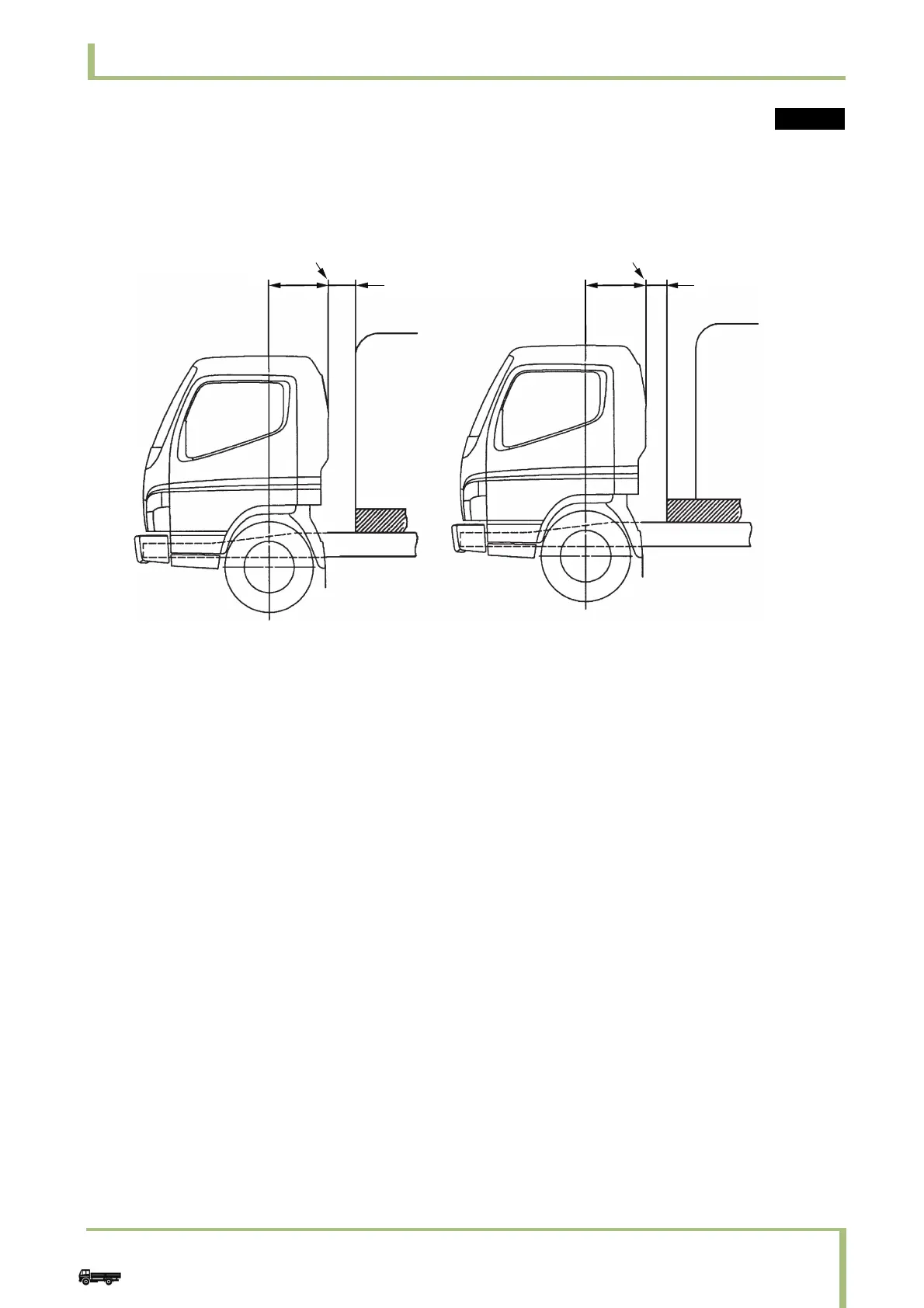

Position of mounting frame
• Install the mounting frame as shown in Fig. 1 to gradually reduce the stress concentrations in the front end.
The front end of the mounting frame should be installed as close to the rear of the cab as possible. Extend
the mounting frame as far toward the cab as possible when the rear body is installed far from the cab.
1525 mm
2CAB BACK
3 Extend the front end of the mounting frame as far
forward as possible; less than 300 mm
Cargo
