140
7 Construction of bodies
7.3 Mounting frame attachment
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

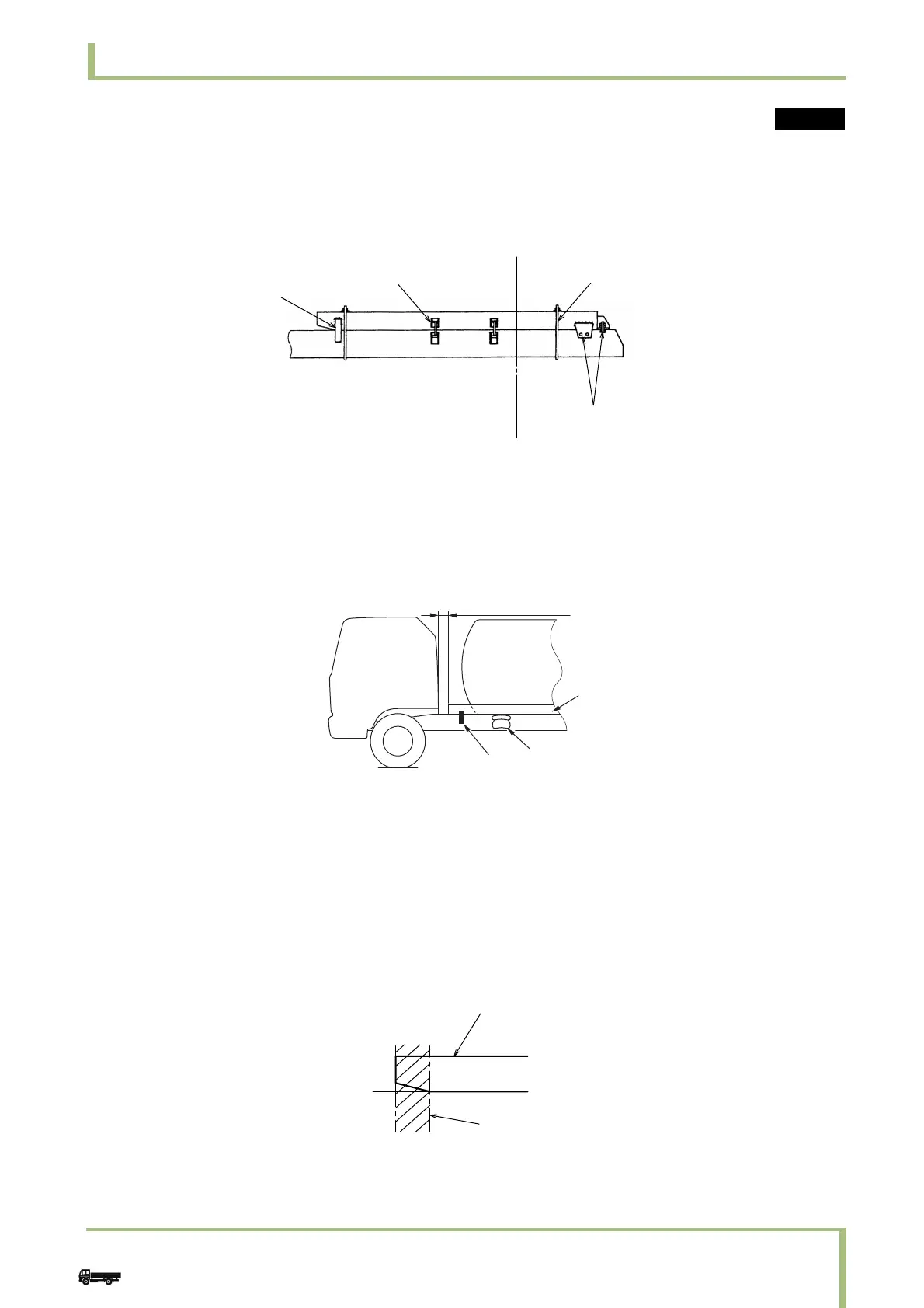

Precautions for fastening frames
• When fastening the mounting frame to the chassis frame using U-bolts and opposed brackets, use retainers
for preventing longitudinal and lateral movements together.
• Even if the distance between the cab back and body front end is larger, extend the mounting frame to near
the cab back and secure it at a position before a No.2 cross member with a fastener.
• When fastening with a U-bolt, ensure that ample spaces are left for running pipes, hoses, wires and
harnesses.
• Do not attach any fastener in the mounting frame front end section where the sectional shape is different
from the remaining part.
4
5
1
3
2
1 Retainer for suppressing lateral movements
2 Opposed bracket
3U-bolt
4 Retainer for suppressing longitudinal movements
(web or flange surface)
5 Trunnion center
1
3
4
2
1 Within 300 mm
2Mounting frame
3 No.2 cross member
4 Fastener (U-bolt)
1
2
1Mounting frame
2 Do not attach a fastener in this section.
Cargo
