7 Construction of bodies
7.3 Mounting frame attachment
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

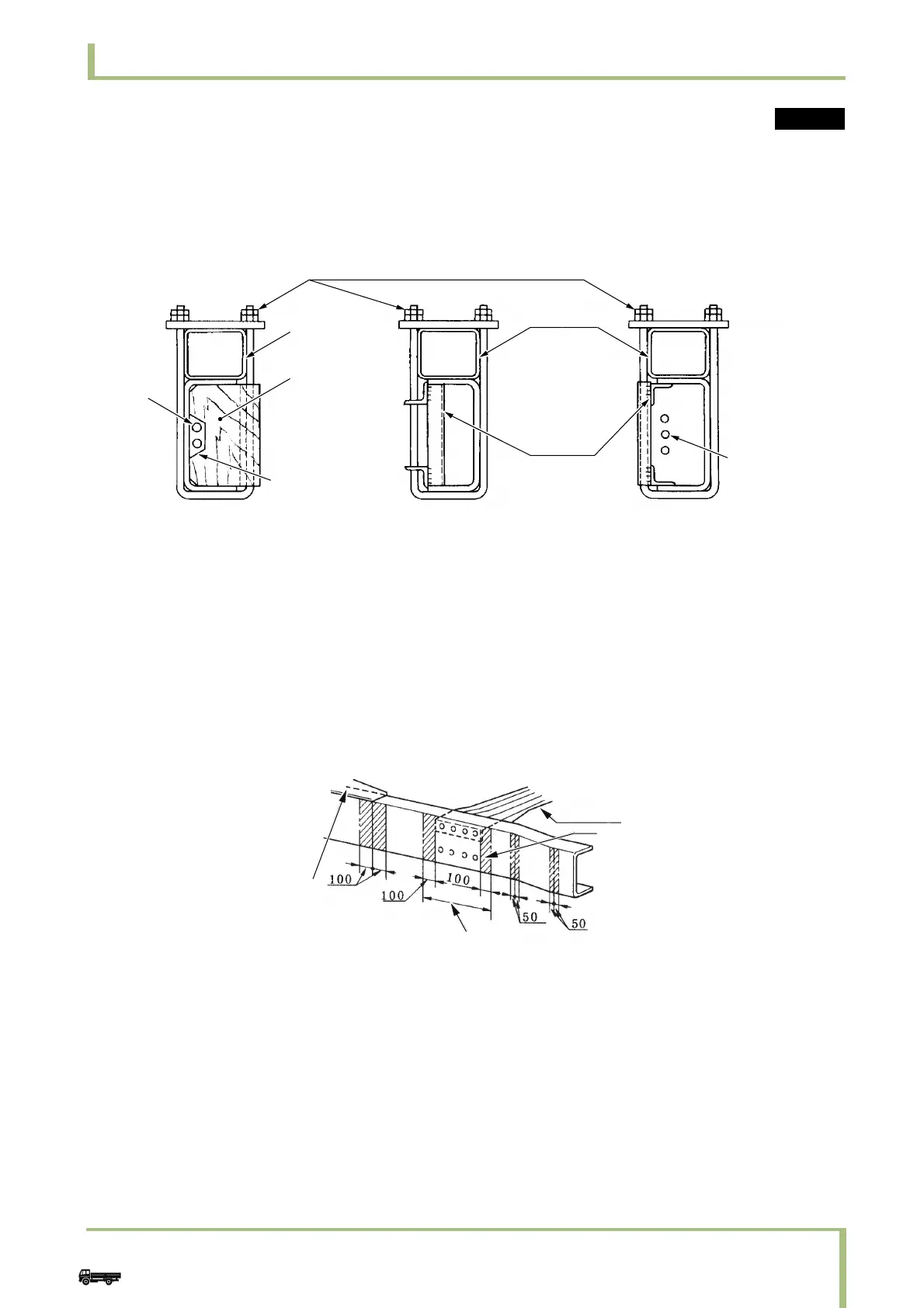

• When the mounting frame and chassis frame are combined with a U-bolt, insert a spacer in the chassis frame
at the combined position to prevent the side rail flanges from deforming. When attaching the U-bolt near a
hot component such as a muffler, use a metallic spacer, not a wooden spacer which can catch fire. Avoid
welding a metallic spacer to the chassis frame to hold it in position.
• Attaching opposed brackets to a chassis frame should be done with bolts. For the procedure, refer to
"6. Modifications to the basic vehicle" É 6.1.
• Do not use U-bolts or opposed brackets for cross member, stiffener and gusset attaching sections or near
the curved section of the chassis frame because these sections are likely to be subjected to stress
concentration.
1
N31.20-2138-00
2
5
5
9
4
2
3
8
7
6
1Use double nuts
2 Mounting frames
3 Spacer (metallic channel or pipe)
4 Spacer (wood)
5 Pipings
6 In case that pipings run near a flange end
7 When a metallic spacer is used
8 When a wooden spacer is used
9 Provide a notch for running pipings
1 Cross member
2 Gusset
3Stiffener
4 Do not attach fastener in this area
Cargo
