8.1 Electrical system
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version









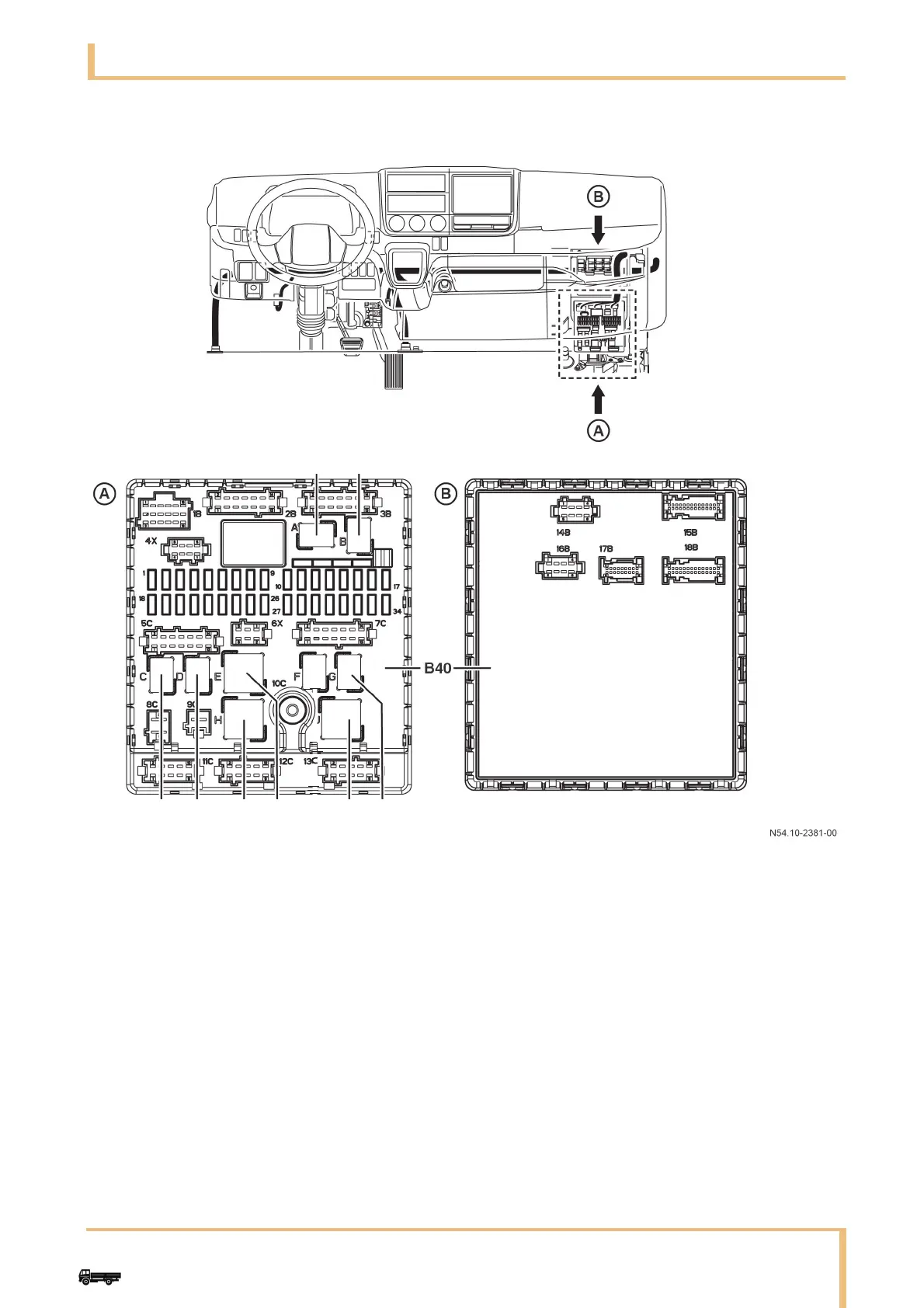

A: Front side
B: Back side
1A/C Blower relay
2Horn relay
3 A/C Comp. cond. relay
4 Acc relay
5 Ignition relay
6Engine relay
7 12 V / 24 V ignition relay*
8 12 V / 24 V Acc relay*
* The voltage is different depending on the specificati-on
of the vehicle
Vehicle with battery equalizer: 24 V
Vehicle without battery equalizer: 12 V
