154
8.2 Electric wiring
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
8.2.3 Connector code

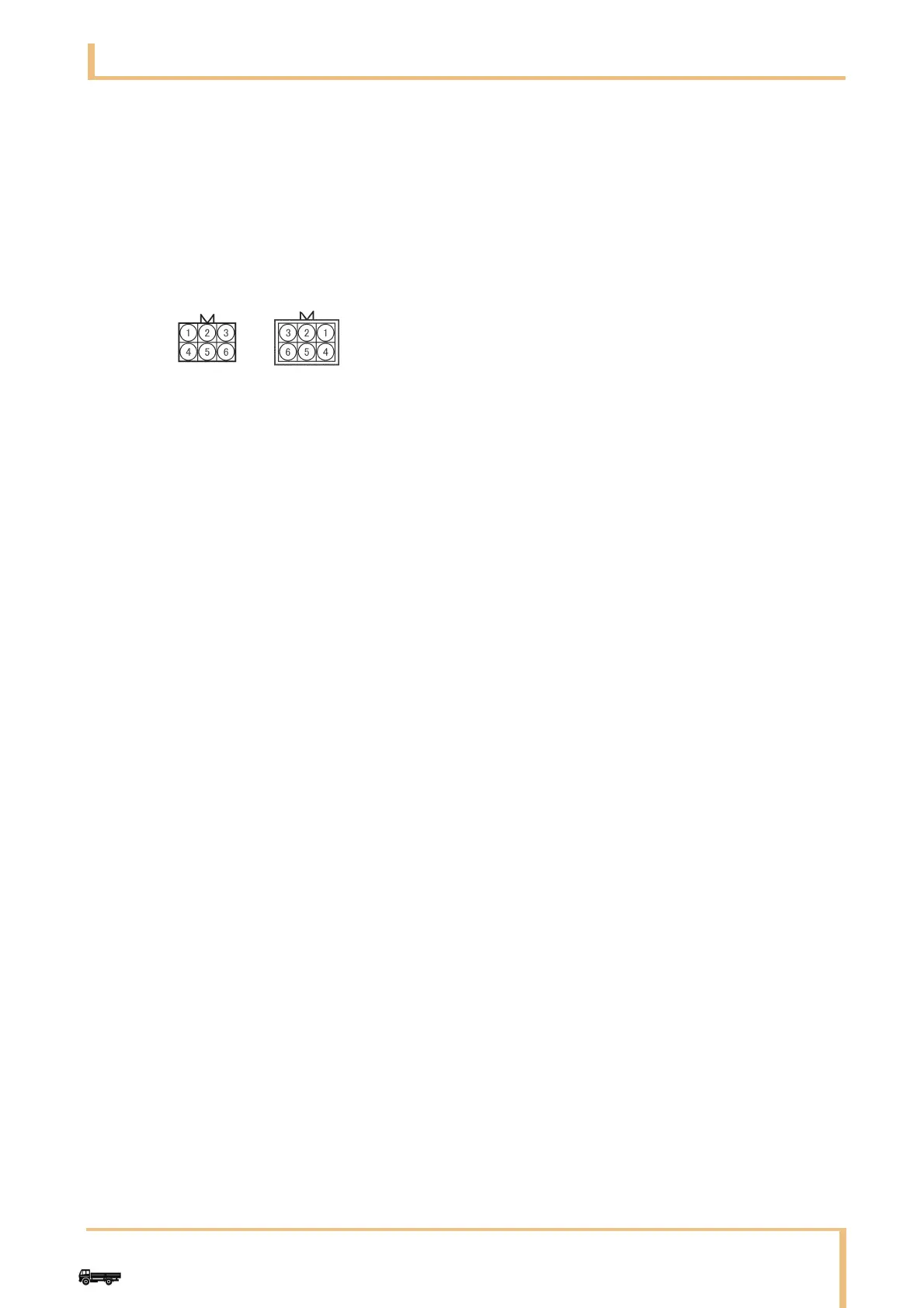

Connector pin numbers
Numbering of terminals
Female terminals: Numbering started from upper
left
Male terminal: Numbering started from upper right
8.2.4 Existing wiring and custom-built truck
body on chassis side
• Make sure that wiring is not caught in by
custom-built truck body.
• Make sure that wiring clear of sharp edges.
• When handling, do not pull wiring with excessive
force.
• Remove harness connector by the connector body.
Do not pull the harness.
• Make sure that wiring has a sufficient distance
from heating parts.
• After installing custom-built truck body, make sure
that associated wiring and parts can be inspected
and serviced without hindrance.
• When a buzzer is provided for custom-built truck
body, avoid shared use of chassis-side buzzer or
use of a buzzer that is the same in tone as the
chassis-side one.
1 Female connector
2 Male connector
