8.2 Electric wiring
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
• Use additional clips as required where the cable
may contact the edges of metal parts to prevent
damage to sheathing due to vibration-induced
contact. Alternatively, cover the metal edges with
a protector or wrap corrugate tube around the part
of the cable that contacts the metal edges.
• If a harness exists nearby, tape the cable along to
the harness. It is positively prohibitive to lay cables
along the brake piping (including brake hose).
Maintain clearances between cable and existing
harness.
Unit: mm
• For clearance between cable and chassies part,
see "4.4 Clearance for the basic vehicle and
bodies" É 4.4.
• Install harnesses or battery cables where they will
not be covered with accumulated dirt, snow, etc.,
iced nor damaged by flying stones. In an
unavoidable case, provide a metal shield to protect
the harness or cable.
• Do not connect cables with sheathing broken and
wires drawn out.
• When equipment is wired, water may run down the
cable into the equipment. Seal the through hole
firmly with a grommet or the like and install the
cable with its terminal upward.
• Route cables through places where they are not
splashed with water or covered with dust.
• Do not install cables onto the top and outer sides
of the frame. They may be damaged by feet put on
the frame or stones flying to the frame during
running.
• Install cables to motor generator and
transmission-mounted parts routing along existing
harnesses so that their relative movements can be
absorbed. Also, give cables a proper amount of
slack so that they do not contact with other parts.
• Relocation of batteries is prohibited.
• When cables are shortened, do not cut them short
but bind excess length of cable to existing harness
or the like bundled with vinyl type.
• Hold MWP water-proof connectors for rear
combination lamp, license lamp, side turn lamp,
etc. in place by fastening the connector body with
hook type plastic clips (MH056347 to MH056350)
or band clips.

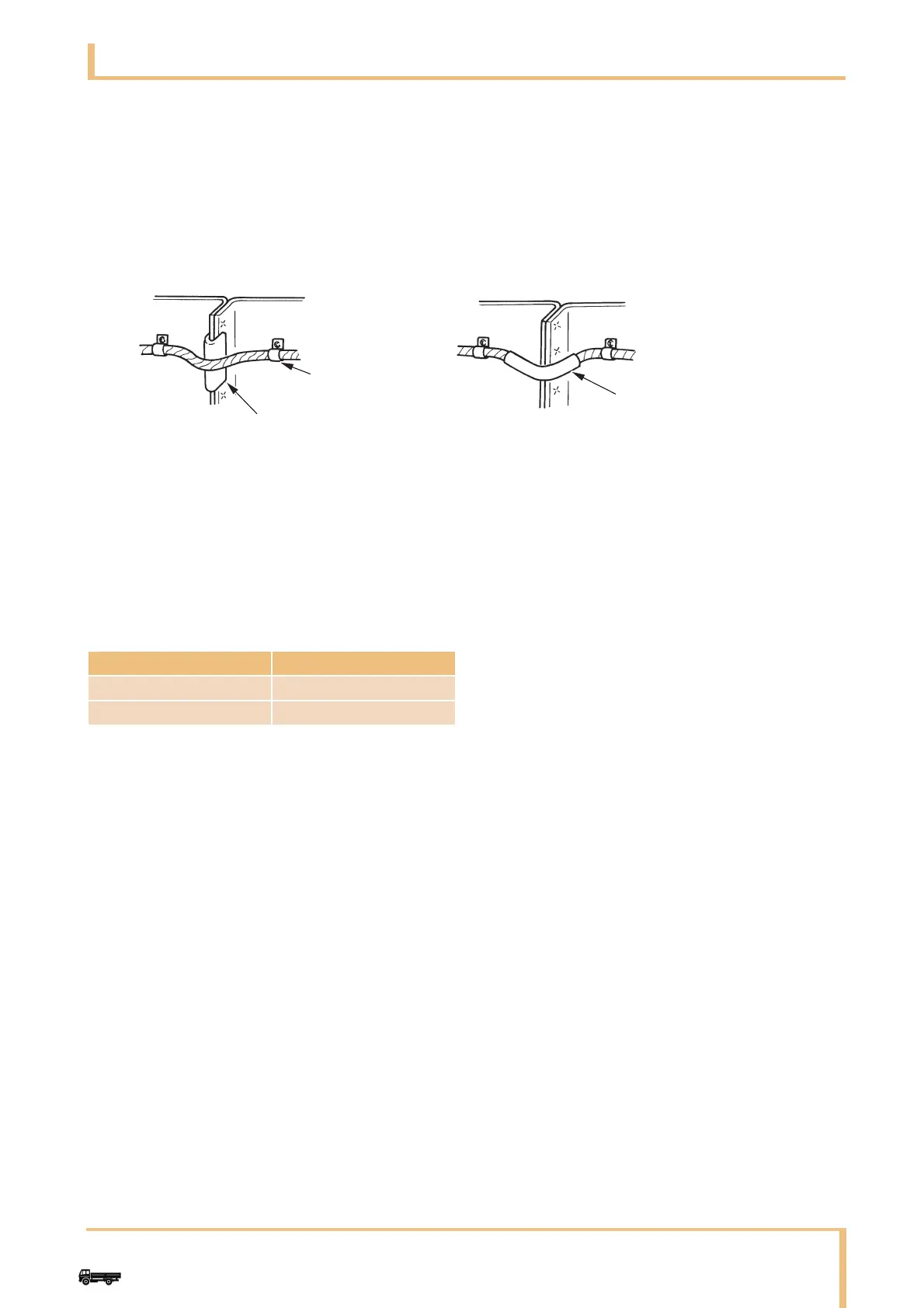

1Protector
2Fasten cable with clip
3Corrugated tube
Wiring method Minimum clearance
Parallel 10
Crossover 20
