157
8.2 Electric wiring
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
• When cable bands are cut off for convenience of
work, obtain necessary parts in accordance with
the list below and restore the cable bands to their
original state.
• For clipping, use coating tape, protective rubber or
plastic clip. Limit sticking and clasping clips to
auxiliary use.
Given below are the standard limits of spacing for
cable clamps.
Unit: mm

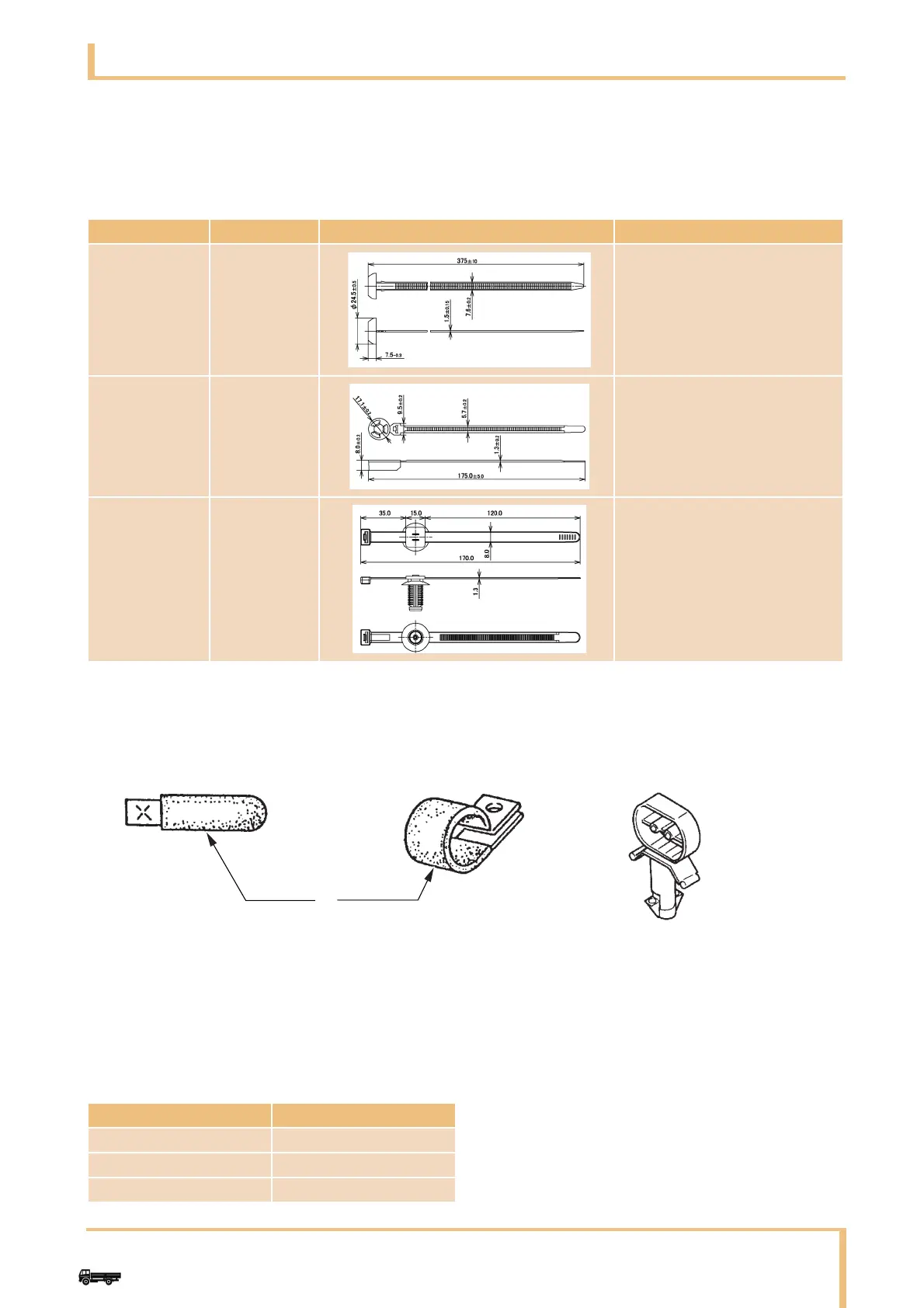

Part name Part No. Geometry Remarks
BAND, CLIP MK665242
Fixing tie: Hellermann Tyton,
BHT375M or equivalent
BAND, CLIP MK665243
Stud bolt tie: Hellermann Tyton,
T50SOSSBD-M10-HSW or
equivalent
BAND, CLIP MK665244
Fir tree mounting tie:
Hellermann Tyton,
CM170-FT11J or equivalent
1Flat clip
2Roll clip
3 Plastic clip
4 Vinyl tube or vinyl coating
Harness diameter Limit of spacing
Up to 5 Up to 300
5 to 10 400
10 to 20 500
