158
8.2 Electric wiring
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

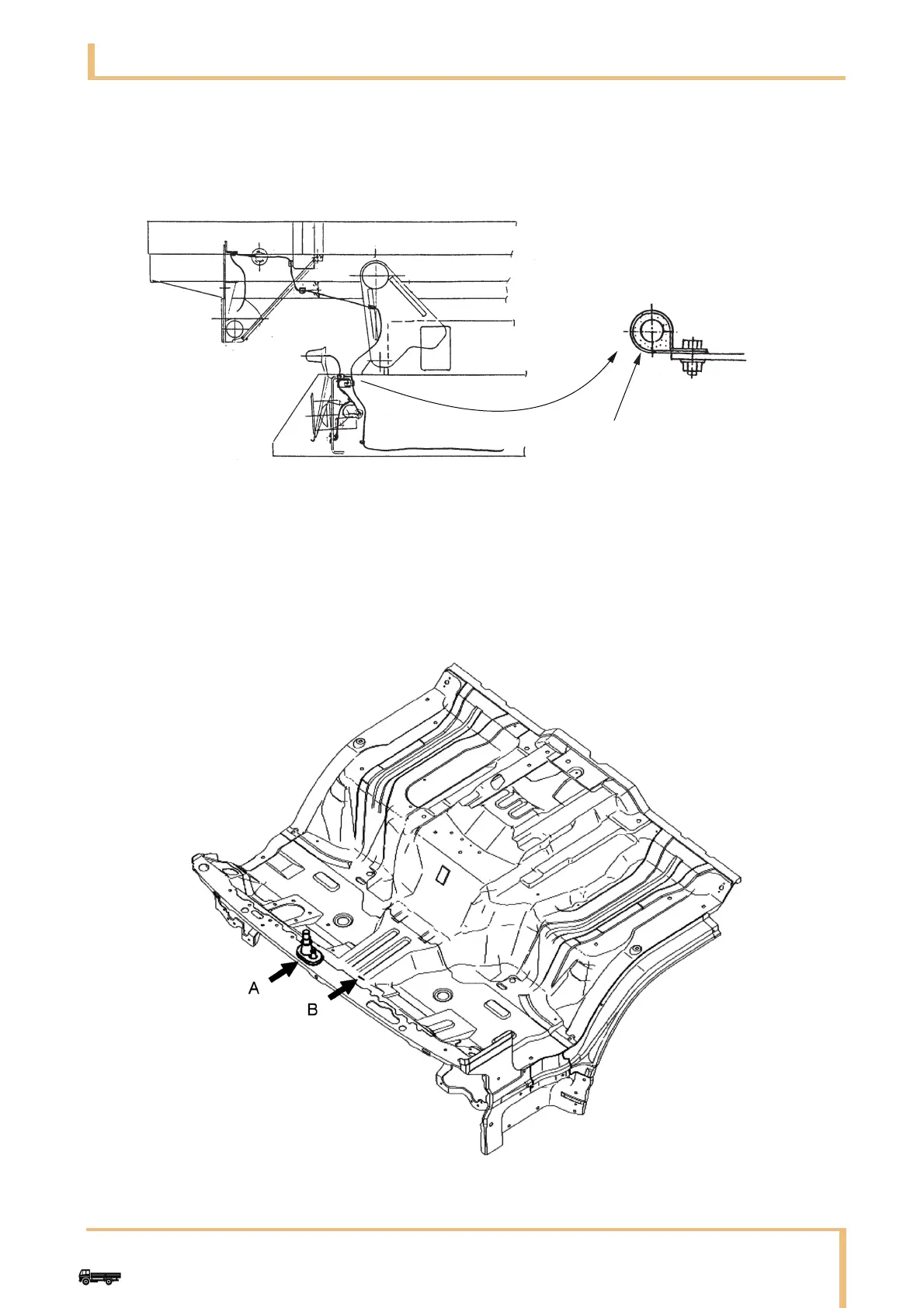

For cables to rotary portions of dump hinge and
other custom-built truck body parts and vibrating
bodies of transmission, etc., use solid rubber clips.
• When passing electrical wiring through the cab
floor, use the grommets in the area A and B shown
below.
1 Mitsubishi part number
MC021037 (
φ
25 mm)
MH022804 (
φ
12 mm) etc.
