8.2 Electric wiring
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

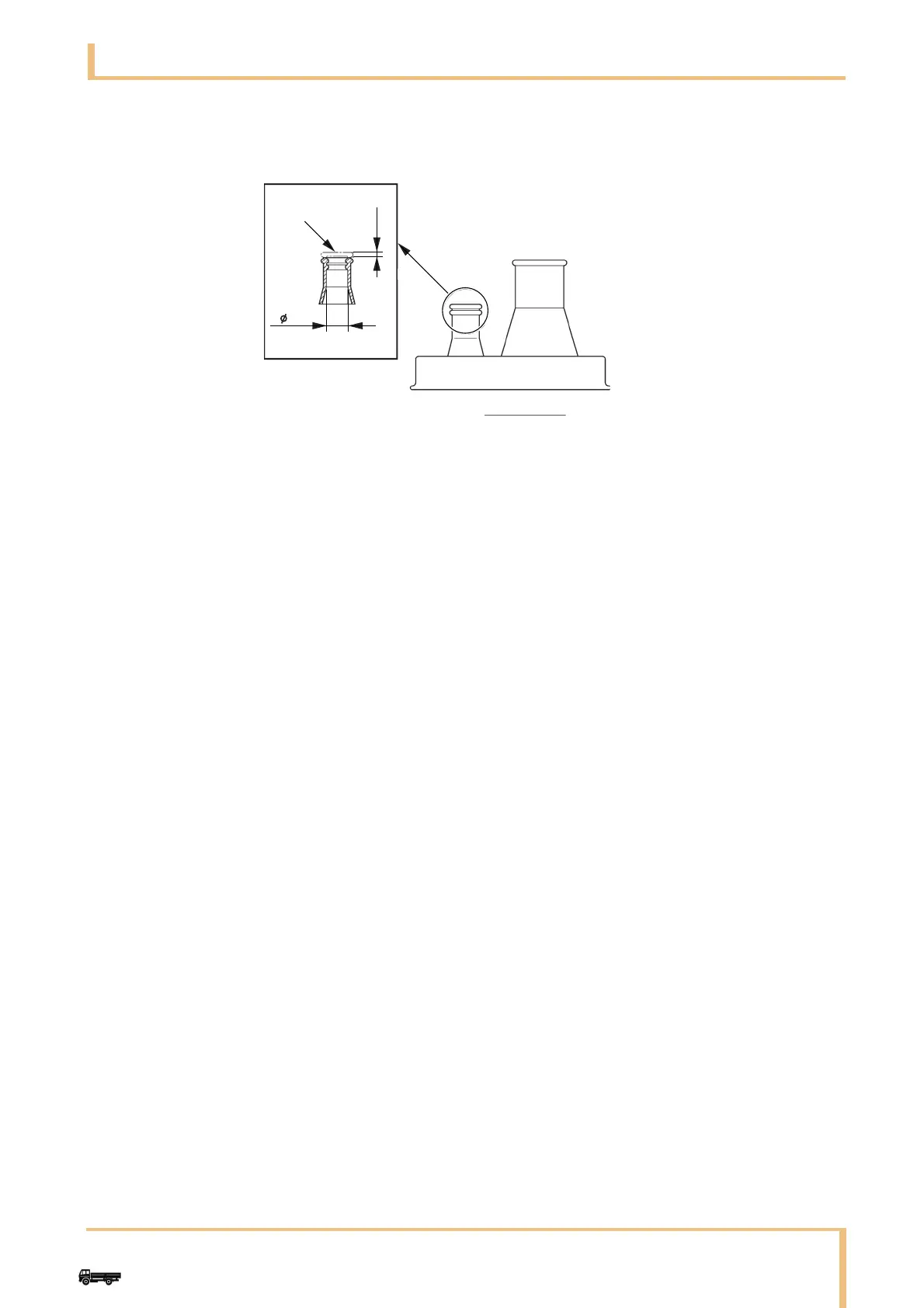

Let harness pass through the grommet cut as
shown below and then tape them.
Procedure for wire connection
• In the case of wire connection using plug and plug
receptacle, use the plug receptacle on the power
supply side, so that if the plug and plug receptacle
should be separated, the disconnected wire is not
short-circuited even if it touches the vehicle body.
• When cable is extended, the extension cable
should be identical in sectional area and hue.
Connect the cable ends firmly by soldering or using
crimp type terminal and provide the joint with solid
insulating covering. Be sure not to connect cables
by twisting together. When soldering, do not use
hydrochloric acid.
Especially, when wires of chassis harnesses (all
harnesses outside of the cab) are extended,
properly protect joints against water and insulate
them.
