8.4 Power supply
8 Electrics/electronics
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version
Between battery terminal and fuse
24 V
1
2
4
3
5
6
7

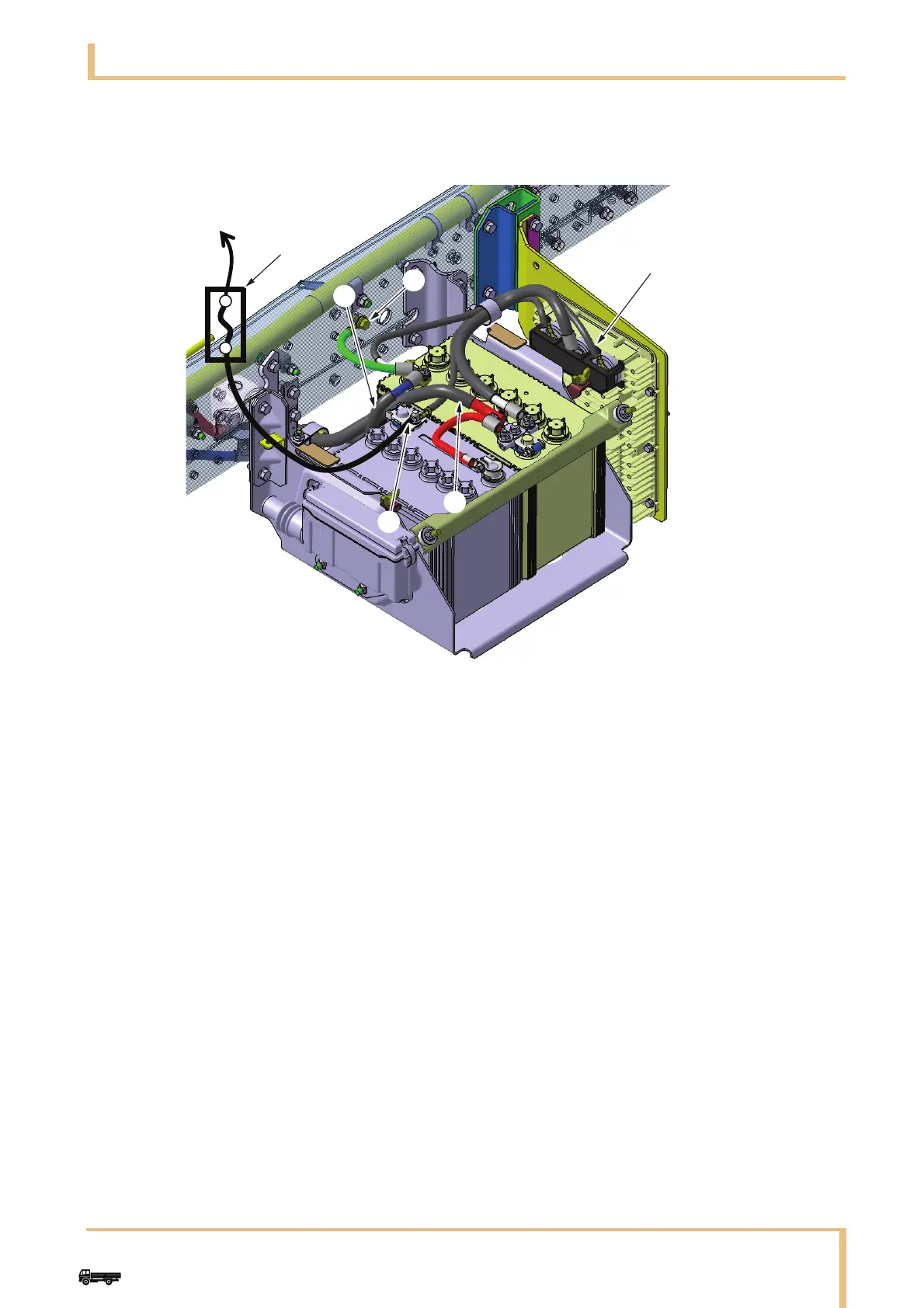

N54.15-2224-00
1 Addition on the built body
2 Additional fuse etc.
3Battery cable (–)
4 Ground point
5 Battery equalizer
6Battery cable (+)
7 Terminal for taking power on built body side, M8 screw
