4 Technical threshold values for planning
4.6 Vehicle body incline
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

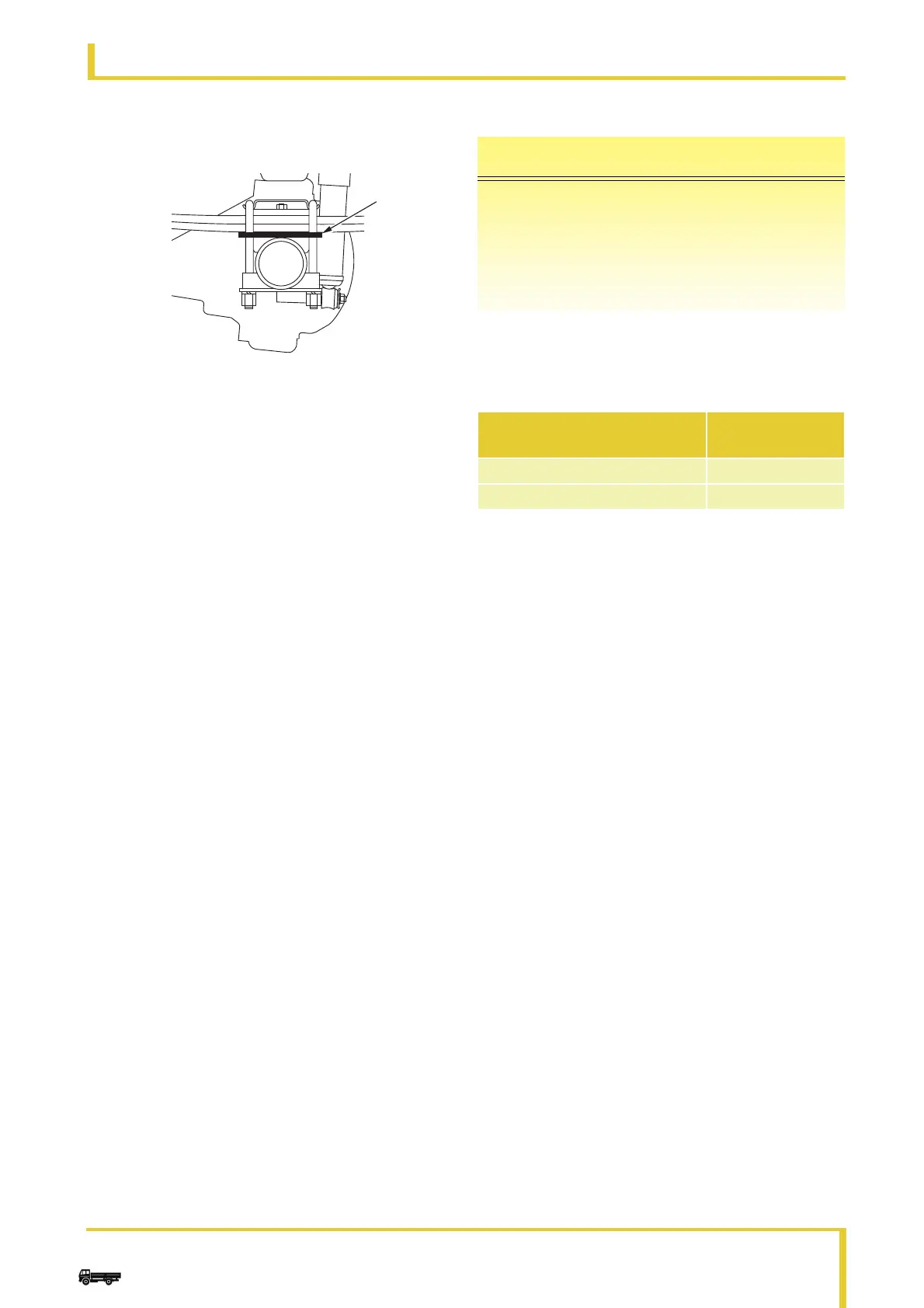

Over-slung vehicle
1 Spacer insertion position
Number of spacers to be inserted in order to
correct tilt
Unit: mm
Tilt
|Hf| or |Hr|
Number of
spacers
10 to 14 1
14 to 18 2
i Additional information
If the length of the center bolt is insufficient,
replace the bolt with one which is between one and
two sizes longer.
