5.5.6 Laminated glass
• When a repainted cab body is forced-dried, the
temperature should not exceed 100 °C and the
process must be completed within 60 minutes.
When using a temperature above 100 °C, cover the
glass surfaces with shields to prevent them from
being heated beyond 100 °C or remove the glass.
• Laminated glass is marked by a double slash (//) in
the lower left corner.
5.5.7 Painting the disc wheels
Disc wheels are sometimes painted in the specified
color in addition to the original paint on the wheels as
shipped by the wheel manufacturer. However, this
could lead to loose wheel nuts depending on the
thickness of the paint coating.
Prohibition of additional painting
• Do not apply additional painting to disc wheel
mounting surfaces, wheel nut seating surfaces and
wheel hub mounting surfaces. This makes the paint
coating thicker, which could lead to loose wheel
nuts. If additional painting has been applied,
remove it and clean the surface with a wire brush.

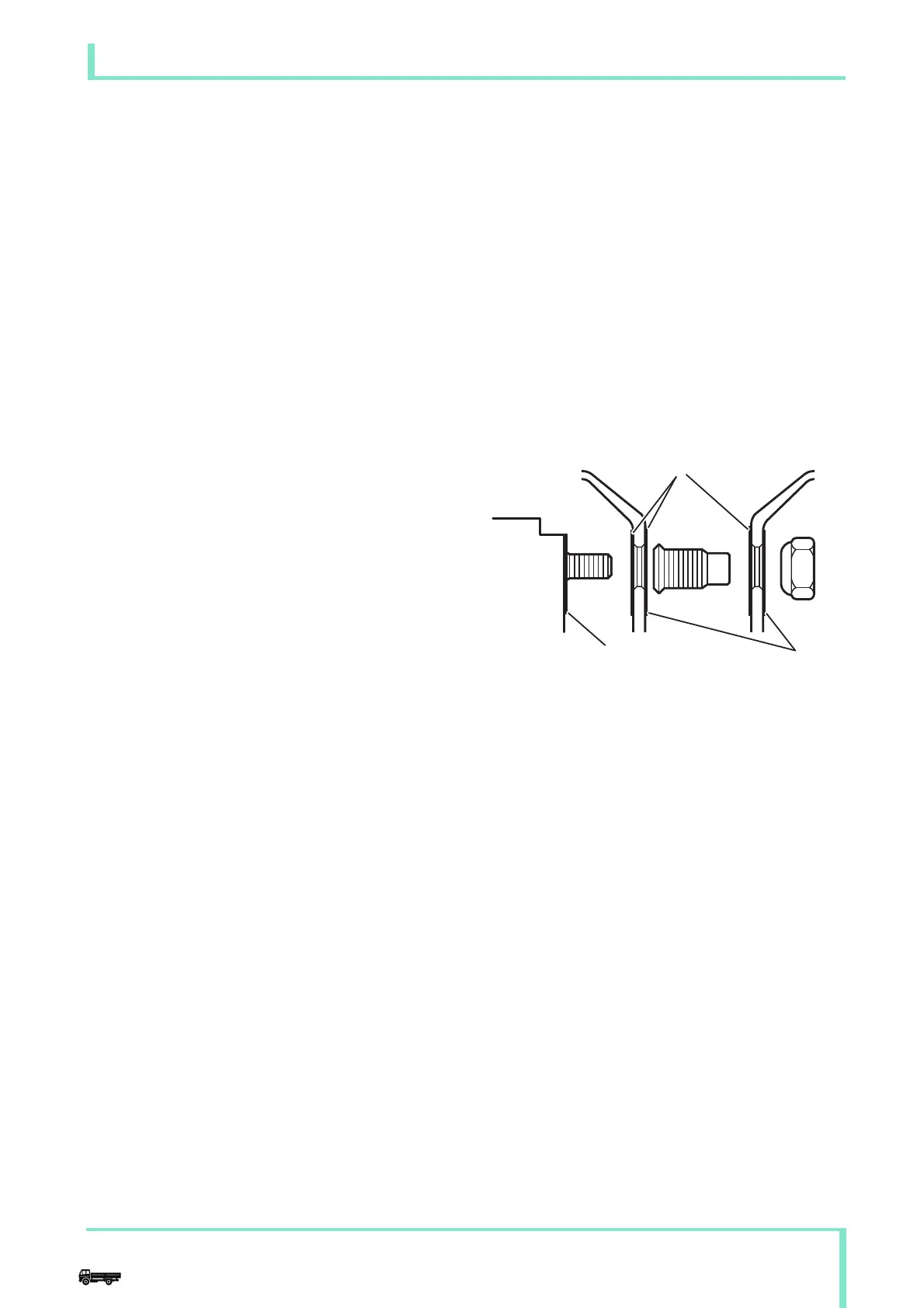

1 Disc wheel mounting surface
2 Wheel hub mounting surface
3 Wheel nut seating surface
• If you removed parts, securely reinstall them in
their original positions. If you peeled off labels,
obtain new labels and stick them in their original
locations.
Tire rotation
• If additional paint on a disc wheel mounting surface
becomes the mounting surface for the mating part
(wheel hub or wheel) as a result of tire rotation,
remove the paint on the wheel mounting surface
and wheel nut seating surface and clean the
surfaces with a wire brush before installing the disc
wheel. If it is installed without removing the paint,
the thick paint coating could lead to loose wheel
nuts.
