6 Modifications to the basic vehicle
6.6 Frame modifications
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

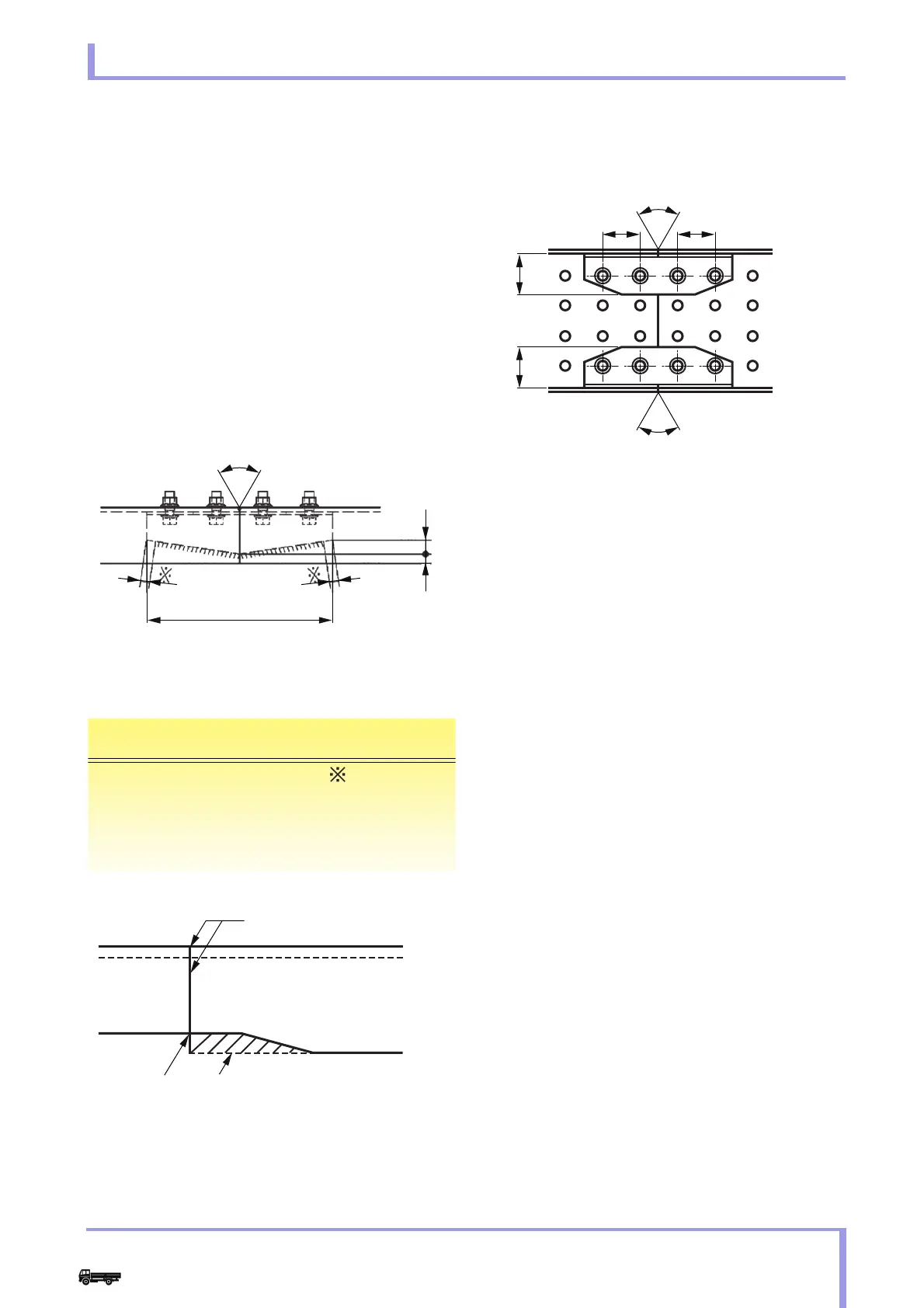

• Extending and shortening procedure
Comply with the reinforcement procedure illustrated
below.
The reinforcement member should be bolted at two
points each in the base metal and extension member.
Use M10 bolts (8T) and nuts (6T) and a tightening
torque of 60 to 80 N·m {6 to 8 kgf·m}.
Use utmost care about finishing the flange end face of
the side rail butt welded joint. Carefully finish it with a
grinder to ensure that the end face is free of undercut
or padding protrusions. Make also sure that there is
no step between the side rail and extension member.
Smoothly finish any steps.
i Additional information
The length of 20 mm marked with should not be
welded.
2
1
3
N31.00-2213-00
1 Finish surface with a grinder
2 Eliminate any steps
3 Finish end face with a grinder
N31.00-2214-00
60°
60°
55
50 50
55
