6 Modifications to the basic vehicle
6.6 Frame modifications
MITSUBISHI FUSO body/equipment mounting directives for FE Issue date: 20. 10. 2020
! Only print out complete sections from the current version

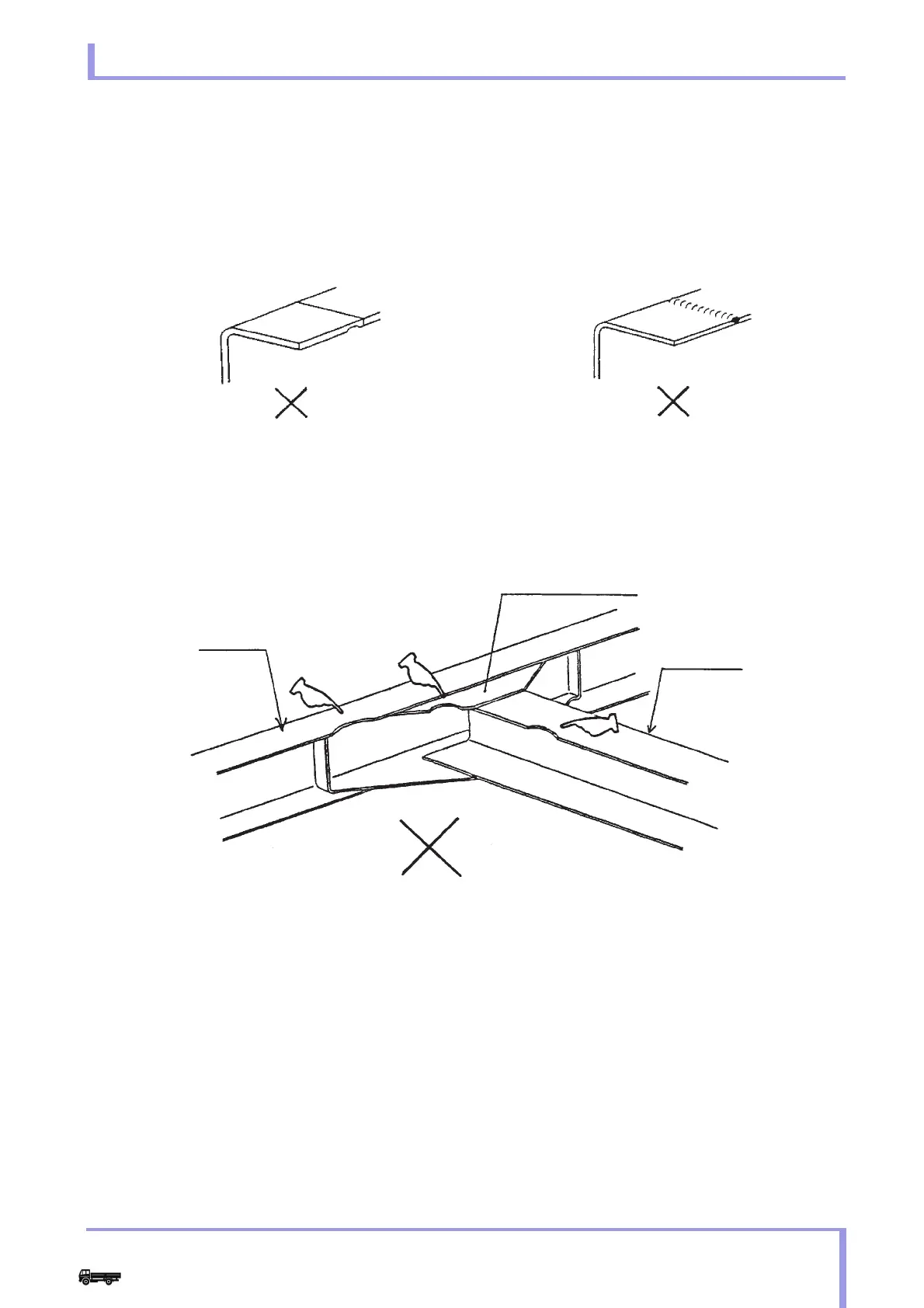

• Cautions for finishing the side rails.
Be especially careful when finishing the flange end
of the butt-welded side rails. Ensure a clean finish
by grinding the weld so it is free of undercut, pileup
or convex bead.
6.6.3 Others
Never drill or grind any notches in the side rail, cross
member flange, or cross member gusset.
Pile up
Not allowed
1
2
3
Notches are not allowed
1 Side rail
2 Cross member gusset
3 Cross member
