<Functions of Linkage Menu>
● Select the function name
and return to the Linkage
menu by touching the
RTN button. Or the
HOME/EXIT button is
pushed.

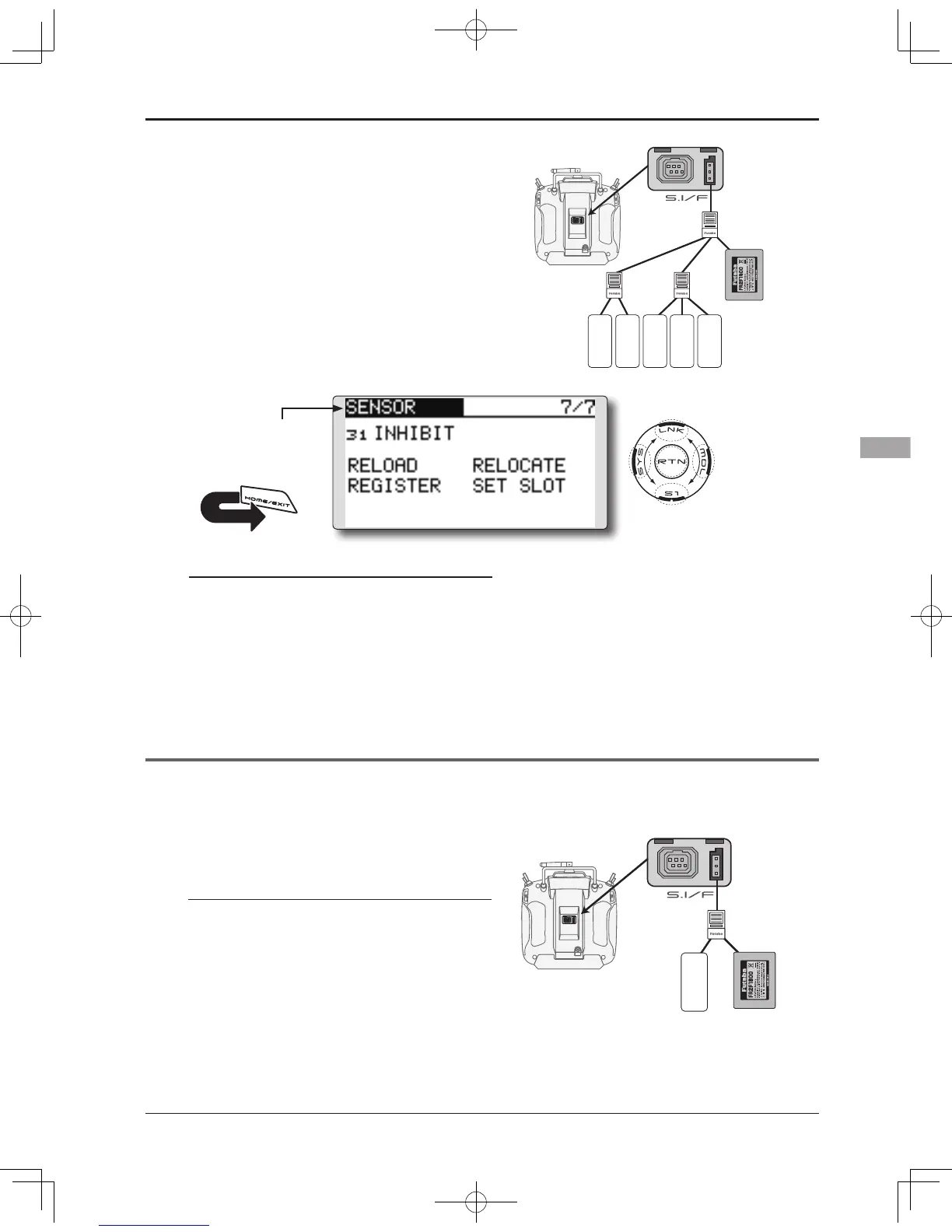

<SensorTouch™>
RETURN
● Call page 7 by touching the S1 button 6 times from
the [SENSOR] menu.
SENSOR : RELOAD
SENSOR : REGISTER
This page is set when using multiple telemetry sensors of the same type.
This page is set when using multiple telemetry sensors of the same type.
When using multiple sensors of the same type
the sensors must be registered in the transmitter.
Connect all the sensors to be used to the T14SG as
shown in the gure at the right and register them by
the following procedure. The ID of each sensor is
registered in the transmitter.
This function registers an additional sensor.
Connect the sensor as shown in the figure at the
right and register it by the following procedure.
The sensor ID is registered in the transmitter.
Allthesensorstobeusedareconnected.
SENSOR SENSOR
3-way hub
or Y-harnesses
Receivers
Battery
T14SG
SENSOR SENSOR SENSOR
3-way hub
or Y-harnesses
Receivers
Battery
T14SG
SENSOR
Reading all the sensors to be used
1. Connect all the sensors and receiver
batteries to be used to the T14SG through a
hub as shown in the gure above.
2. Move the cursor to “RELORD” on page 7 of
the [SENSOR] screen.
3. Touch the RTN button.
All the sensors are registered and can be
used.
Additional sensor registration
1. Connect the sensor and receiver battery
to be used to the T14SG through a hub as
shown in the gure at the right.
2. Move the cursor to “REGISTER” on page 7 of
the <Sensor> screen.
3. Touch the RTN button.
The sensor is registered and can be used.
*
When the number of slots needed in registration is
insufcient, an error is displayed and registration cannot be
performed. Disable unused slots or perform the following
relocate.
