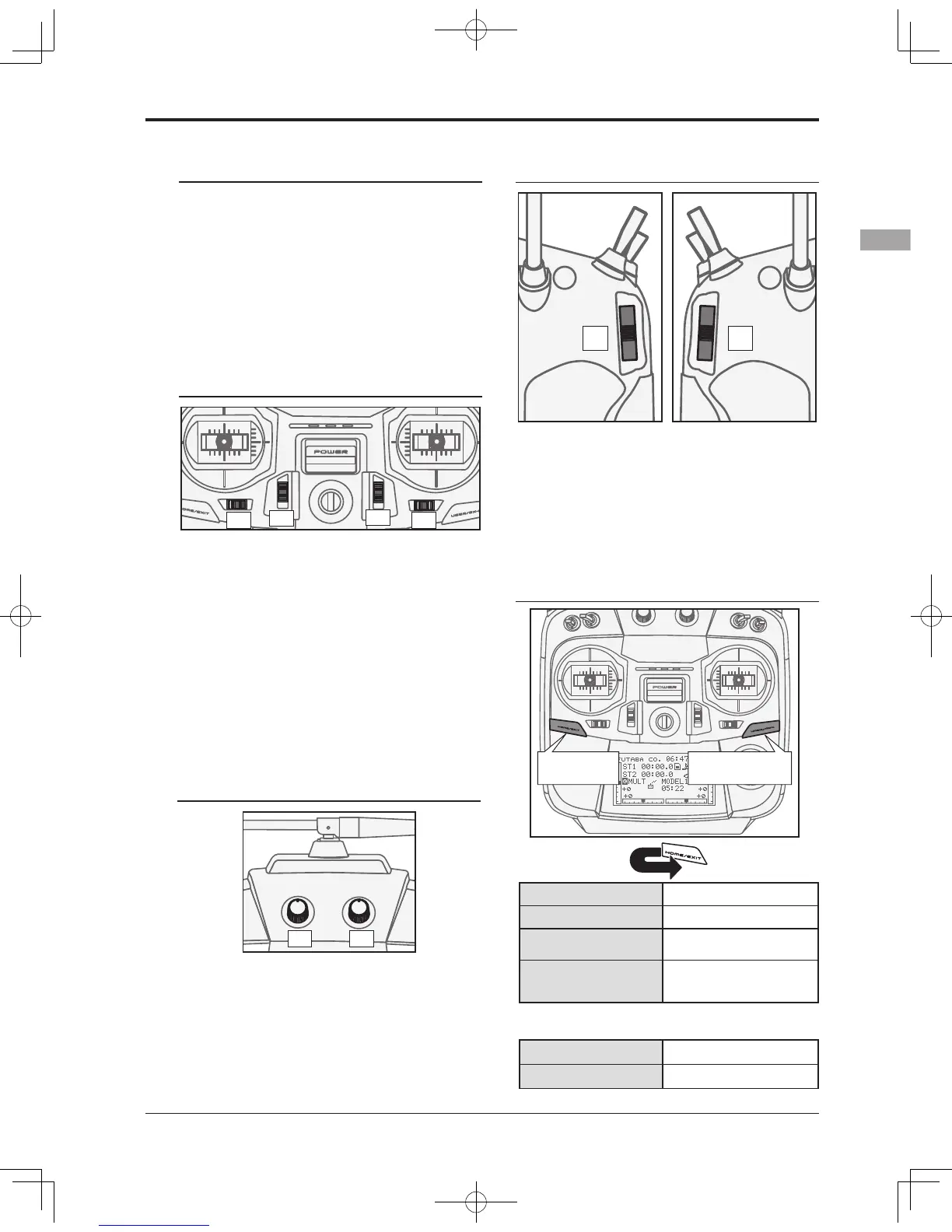

FUTABA 14SG S.Bus2 User Manual

15
<Before Use>
Switch (SA-SH)
(Switch Type)
• SA : 3 positions; Alternate; Short lever
• SB : 3 positions; Alternate; Long lever
• SC : 3 positions; Alternate; Long lever
• SD : 3 positions; Alternate; Short lever
• SE : 3 positions; Alternate; Short lever
• SF : 2 positions; Alternate; Long lever
• SG : 3 positions; Alternate; Short lever
• SH : 2 positions; Momentary; Long lever
*You can choose switch and set the ON/OFF-direction in the
setting screen of the mixing functions.
Slide Lever
RSLS
LS (Left), RS (right):
The slide lever LS and RS offer analog input.
*The T14SG transmitter beeps when the lever comes to the
center.
*You can select a slide lever and set the movement direction
on the setting screen of mixing functions.
HOME/EXIT and U.MENU/MON. Button
Volume
LD RD
Volume LD and RD:
The volume LD and RD knobs allow for analog
input.
*The T14SG transmitter beeps when the volume knob reaches
the center position.
*You can use each setting screen of the mixing functions to
select volumes and dene the direction of a movement.
Digital Trim
T1
T2
T3
T4
Digital Trim T1, T2, T3 and T4:
This transmitter is equipped with four (4) digital
trims. Each time you press a trim button, the trim
position moves one step. If you continue pressing it,
the trim position starts to move faster. In addition,
when the trim position returns to the center, the
tone will change. You can always monitor trim
positions by referencing the LCD screen.
*You can select the trim step amount and the display unit
on the home screen on the T1-T4 setting screen within the
linkage menu.
Note: The trim positions you have set will be stored in the
non-volatile memory and will remain there.
HOME/EXIT
Button
U.MENU/MON.
Button
RETURN
Press
Return to the previous screen
Press and hold Return to the Home screen
It pushes from HOME
screen.
To TELEMETRY display
Push and hold for one
(1) second from HOME
screen.
Key lock On or O󱐯
Press To SERVO MONITOR display
Press and hold To User Menu display
HOME/EXIT:
U.MENU/MON.:

FUTABA 14SG S.Bus2 Specifications

General

Channels	14
Frequency	2.4GHz
Telemetry	Yes
S.Bus2 Support	Yes
User Menu	Yes
Compatibility	FASST, FASSTest, S-FHSS
Display	LCD
Model Memory	30
