RUD to ELE
[Corresponding model type]: Airplane, general
This function is used when you want to mix
elevator operation with rudder operation. It is used
to correct undesirable tendencies when rudder is
applied in rolling maneuvers such as, knife edge
ight.
● Mixing during flight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
● Link mixing can be set: Links this mix to other mixes.

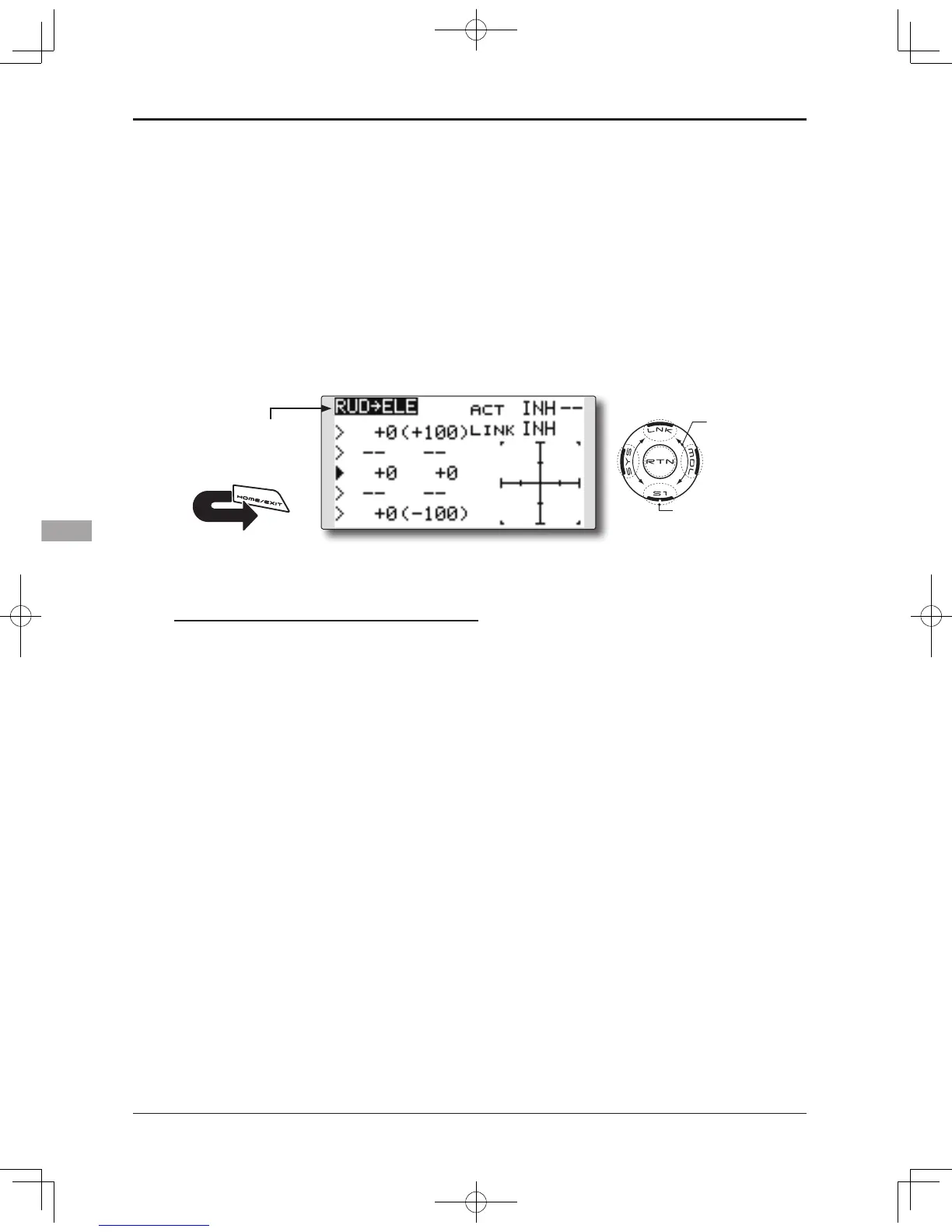

● Select [RUD to ELE] at the Model
menu and access the setup screen
shown below by touching the RTN
button.
Scrolling
● Moving cursor
● Selecting mode
● Adjusting value
● To next page
Setting method
●Activate the function
Move the cursor to the [ACT] item and touch
the RTN button to switch to the data input
mode. Select the ACT mode by scrolling the
touch sensor.
*The display blinks.
Touch the RTN button to activate the
function and return to the cursor mode. (ON
is displayed.)
When selecting a switch, move the cursor to
the [SW] item and touch the RTN button to
call the selection screen. Select the switch
and set its ON direction. (Always ON at "--"
setting)
*For a description of the switch selection method, see the
description at the back of this manual.
●5-point curve setting (airplane)
[Curve rate setting]
1. Move the cursor to the curve rate setting
item (left side) you want to adjust and touch
the RTN button to switch to the data input
mode.
Adjust the rate by scrolling the touch sensor.
Adjustment range: -100%~+100%
*When the RTN button is touched for one second, the rate is
reset to the initial value.)
Touch the RTN button to end the adjustment
and return to the cursor mode.
2. Repeat this procedure for each point.
[Moving curve point]
1. Move the cursor to the curve point setting
item you want to adjust and touch the RTN
button to switch to the data input mode.
Adjust the curve point by scrolling the touch
sensor.
Adjustment range: Up to 2.5% in front of the
adjoining point
*When the RTN button is touched for one second, the curve
position is reset to the initial value.)
Touch the RTN button to end the adjustment
and return to the cursor mode.
2. Repeat this procedure for each point.
[Deleting/returning curve point]
Move the cursor to the curve point setting
item you want to delete/return and touch
the RTN button for one second.
●Link mode setting
When selecting the link mixing, move the
cursor to the [LINK] item and touch the RTN
button to switch to the data input mode.
Select the ON mode by scrolling the touch
sensor.
*The display blinks.
Touch the RTN button to set the link mode
and return to the cursor mode.
To Next Page
