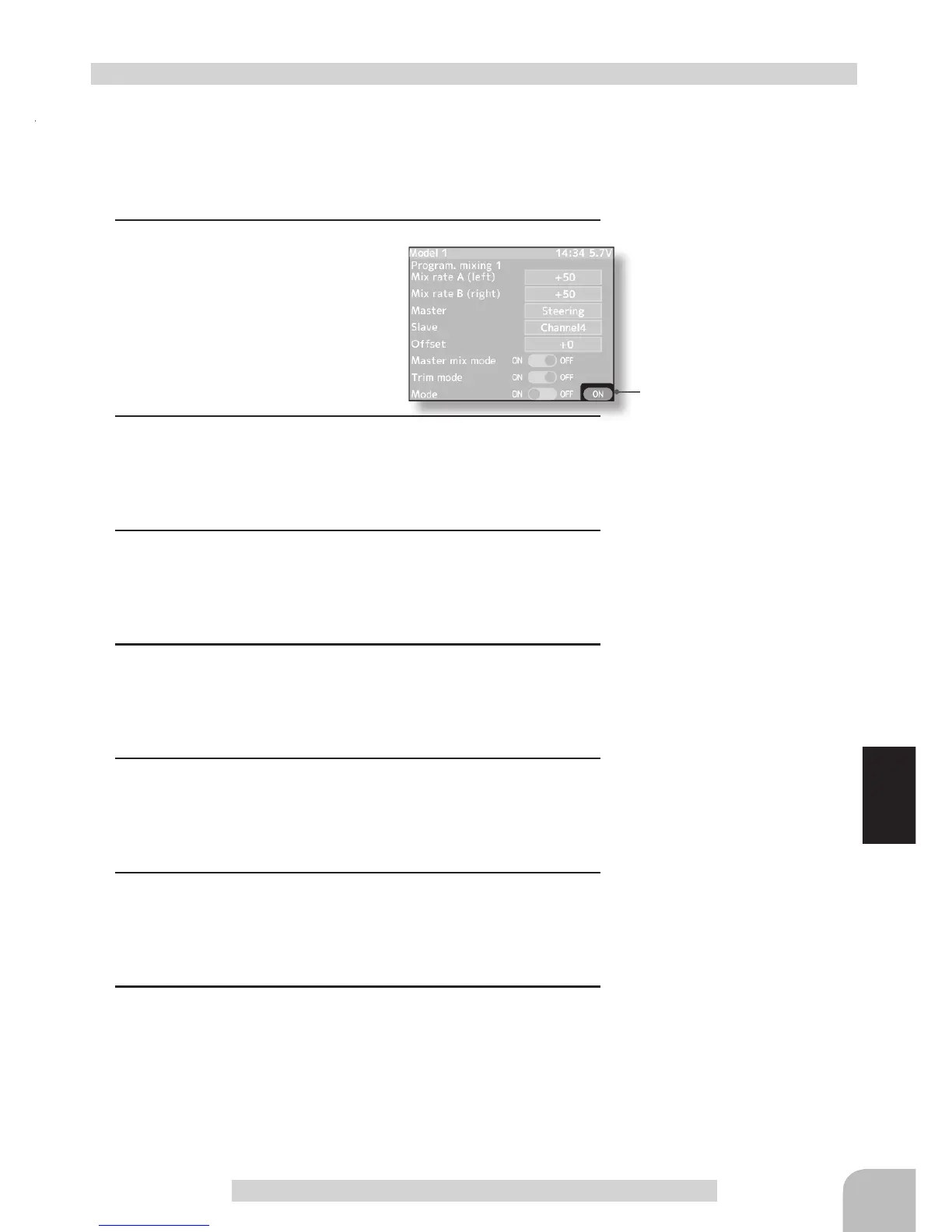

FUTABA 4PX - Program, Mixing (1, 2, 3, 4, 5 )

When mixing is active, ON
is displayed.
97
Function
Program, Mixing
Program mixing adjustment
Switch
Program mixing 1-5
Setup item selection
- Select by (JOG) button up or
down operation.
(Preparation)
- Use the function select switch function (page 99) to select the
switch. (as desired)
- Select the "Program mixing" by (JOG) button up or down op-
eration, and select the 1 to 5 by pressing the (JOG) button.
1
(Mixing function ON/OFF)
Select the setting item "Mode"
by (JOG) button up or down op-
eration. Press the (+) or (-) but-
ton and set the function to the
"ON" state.
"OFF" :Function OFF
"ON" :Function ON
2
(Master channel)
Select setup item "Master" by (JOG) button up or down op-
eration, and select the master channel by pressing the (+) or
(-) button.
3
(Slave channel)
Select setup item "Slave" by (JOG) button up or down opera-
tion, and select the slave channel by pressing the (+) or (-)
button.
4
(Left, forward or up side mixing amount adjustment)
Select the setting item "left", "forward ", or "up" by (JOG) but-
ton up or down operation. Use the (+) or (-) button and adjust
the right, brake, or down side mixing amount.
5
(Right, brake or down side mixing amount adjustment)
Select the setting item "right", "brake", or "down" bby (JOG)
button up or down operation. Use the (+) or (-) button and
adjust the right, brake, or down side mixing amount.
6
(Offset amount setup)
Select setup item "Offset" bby (JOG) button up or down op-
eration, and use the (+) and (-) button to adjust the offset
amount.
7
(Mixing mode setup)
Select setup item "Master mix mode" bby (JOG) button up or
down operation, and use the (+) and (-) button to adjust the
offset amount.right operation, and use the (+) or (-) button to
select the mixing mode.
"OFF" :Mixing proportional to master channel operation.
"ON" :Mixing by master channel another function considered.
Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Function ON/OFF (Mode)
ON, OFF
Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Master mix mode
ON, OFF
Setting buttons
- Use the (+) and (-) buttons to
make adjustments.
Channel selection (Master)
Steering, Throttle
Channel3, Channel4
Channel selection (Slave)
Channel1, Channel2
Channel3, Channel4
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Mixing amount
-100~0~+100
Initial value: +50
Adjustment buttons
- Use the (+) and (-) buttons to
make adjustments.
- Return to the initial value by
pressing the (+) and (-) buttons
simultaneously (approx. 1 sec).
Offset amount
-100~0~+100
Initial value: 0
