Galil DMC-21x3 User Manual

DMC-21x3 Accessories Chapter 15 Cables for AMP-20xxx• 95

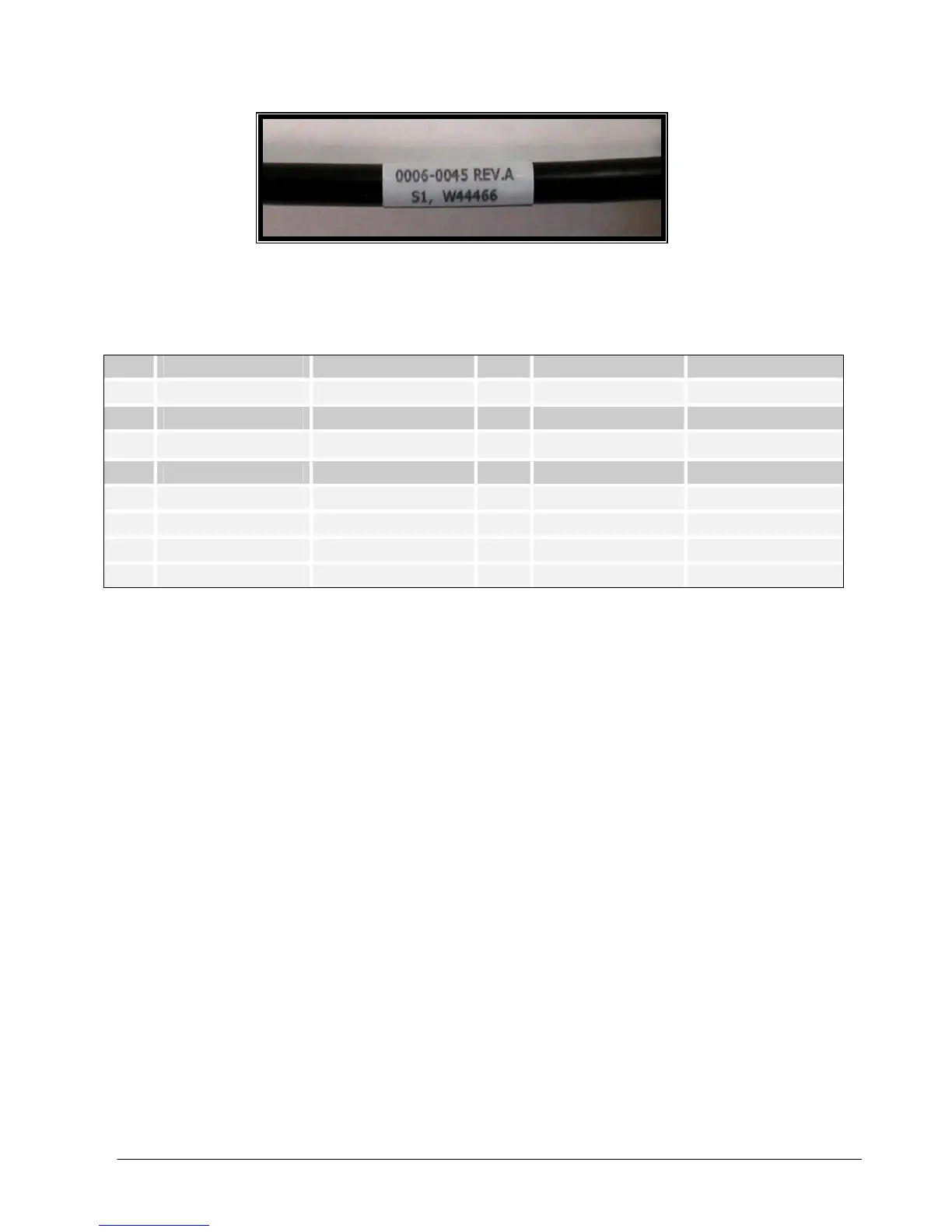

Fig 4. Cable-15 Part Number
For pinout color code information of this cable, see Table 4 below.
Table 4. Cable-15, Pinout Color-Code
Pin Description Cable Color (Stripe) Pin Description Cable Color (Stripe)
1 Index + Black 9 Aux A- Green
2 Main B+ Black (White) 10 Hall U Blue
3 Main A+ Brown 11 Aux A+ Purple
4 Aux B+ Brown (White) 12 Aux B- Silver
5 GND Red 13 Hall V White
6 Index - Red (White) 14 Hall W Pink
7 Main B- Orange 15 5V Light Green
8 Main A- Yellow
