Gantner e Series User Manual

e.bloxx A6-2CF
CONFIGURATION
HB_EBLOXX-A62CF_E_V19.doc 41
Gantner Instruments Test & Measurement GmbH
Example: The linearization facility is helpful to improve e.g. the measurements with inductive transducer or to do a
linearism of the relations between the required and the measured quantity (level by weight).

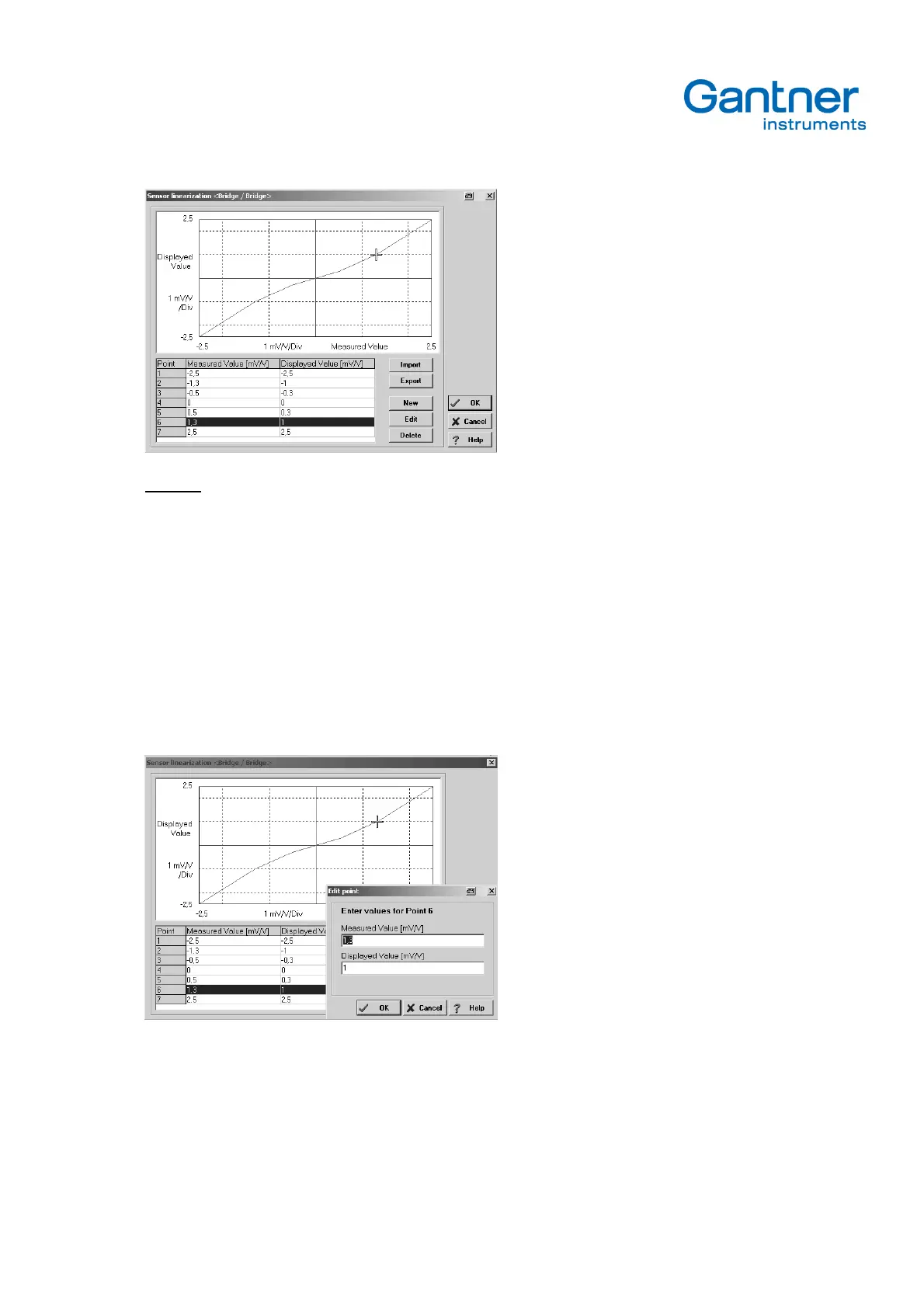

Setting of the Linearization Characteristic
The definition of the characteristic can be done in three different methods:
Editing of discrete pairs of values
Import of pairs of values
Measuring (Teach in mode) the characteristic be loading the sensor or using a calibration unit
• Editing of discrete values
The existing pairs of values will be edit after Click on New in the window New point or use the button Edit to reach the
window Edit point.
