have unique sets in case of interrupting the linearization process. A changing of the name of the new sensor can be
done by copying as usually.
The linearization can be done in the basic unit mV/V or in any other unit:
Measuring mV/V, displaying mV/V
Measuring mV/V, displaying kN, bar, mm, kg…
With the function “Export” it is possible to save measured values in a Excel file.
Column "Type of"
Use this column to select half- or full bridge and measure without or with sense leads (3-/4- or 5-/6 wire). For quarter
bridge measurement select half bridge and use the terminal B 14.
At LVDT sensors there is no selection in this column.

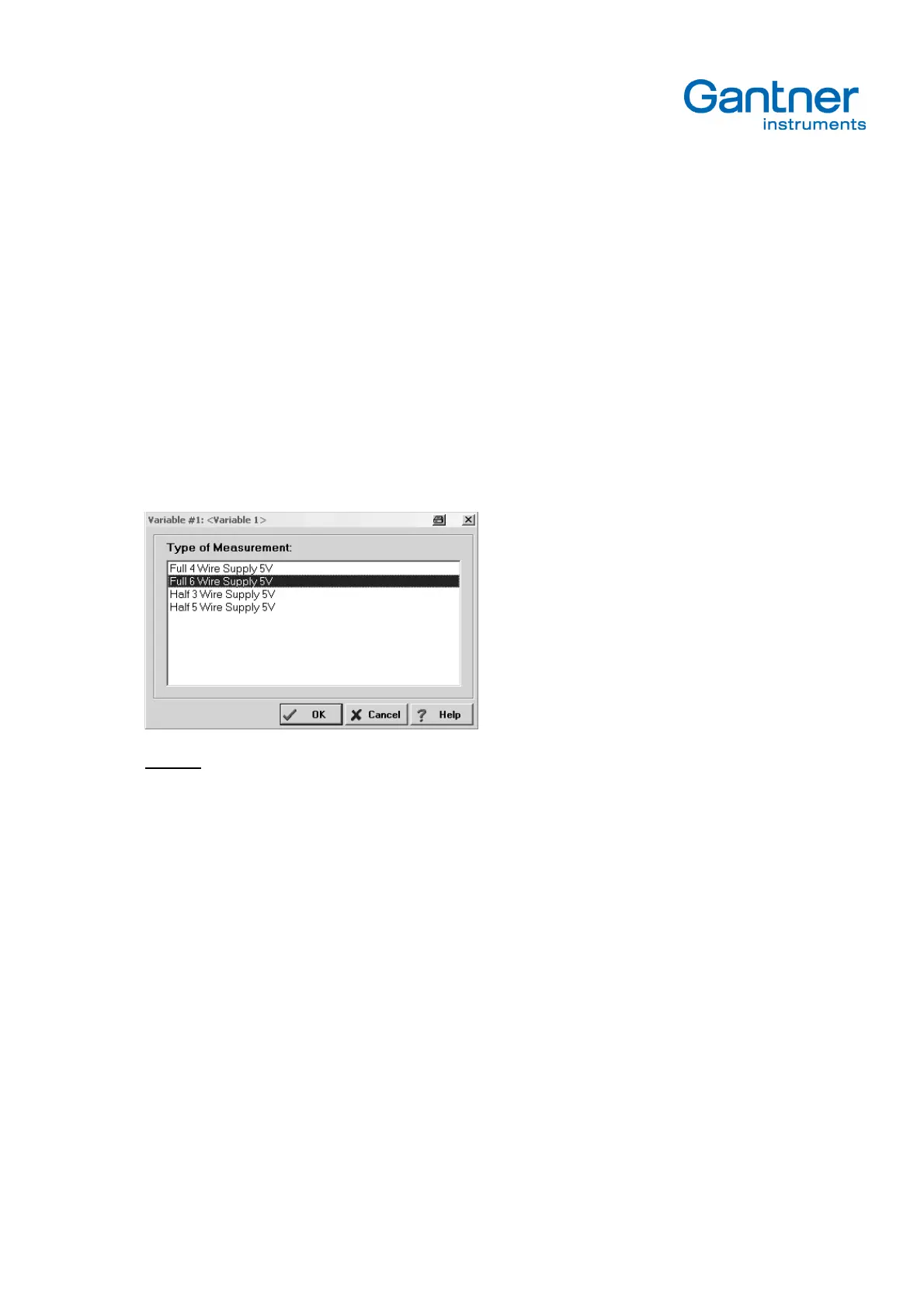

Example: Full bridge 6 wire connection (incl. Sense leads)
Column "Connection"
In this column the connection of the transducer at the e.bloxx A6-2CF is shown.
Column "Terminals"
This column is not relevant in this line. The terminals are shown in the column "Connection".
Column "Format/Adjustment"
The field shows the format, the unit, the number of digits and the position of the decimal point. In further pop-up menus
the following functions are available:
- Scaling and calibration
- Strain gauge calculator
- Zeroing release
- Tarring release
- Data Type
- Direction
Note: Use the given order to set up the module.
