Split Screen (SPLIT) Function

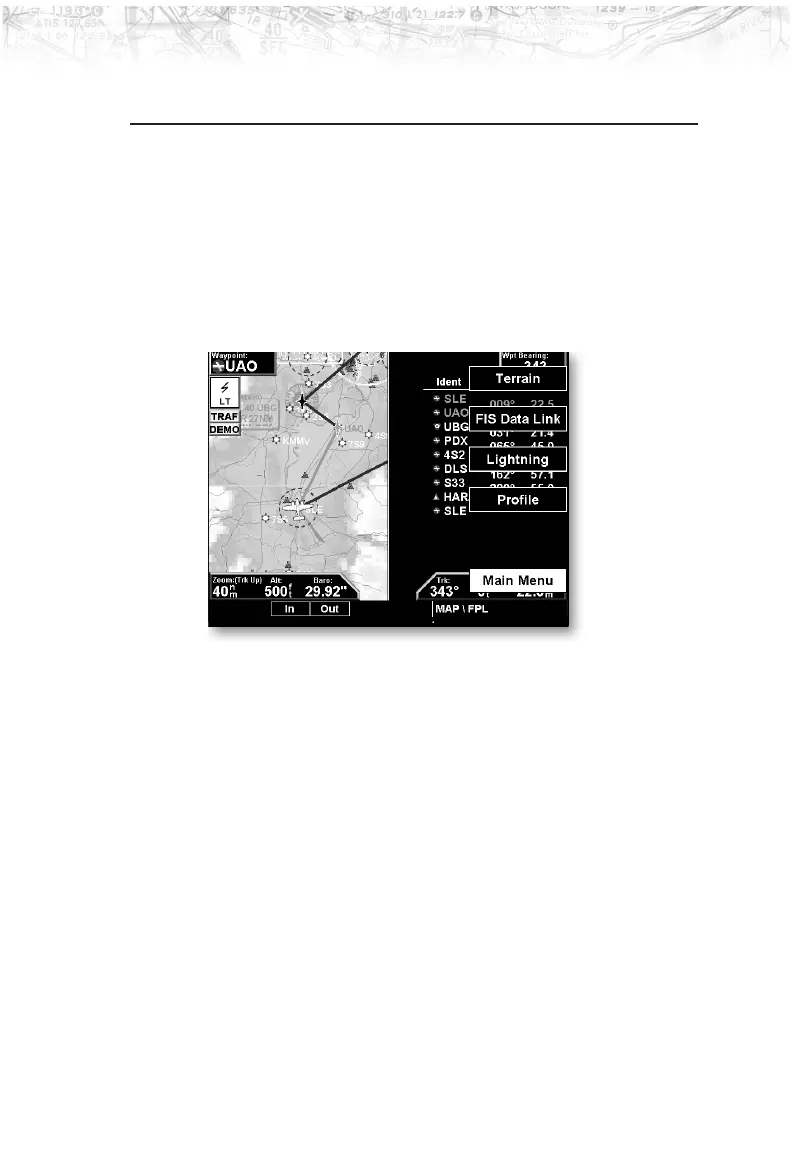

The Split Screen capability allows you to display up to
two enabled functions side by side. Press the
LINE
SELECT
key next to the desired map to highlight the
selection. When two functions are displayed, you must
first deselect a highlighted selection before selecting
another function. Review the Limitations section on page
iv for the limitations that apply to the data displayed on
the moving map.
A vertical profile may be optionally selected to be shown
on the lower portion of the display. The profile view is
only available when there is no TAWS sensor enabled and
the Terrain function is based on the internal terrain
database. The profile display is always oriented in the
Track-Up mode, where the depicted terrain is a
cross-section of the terrain just below the aircraft’s current
track. Obstacles are not shown on the profile display and
the aircraft current altitude is provided next to the
ownship symbol. The altitude scale adjusts automatically
with the aircraft altitude. The zoom scale and map
orientation are displayed in the upper right corner of the
profile display.
43
Detailed Operation
To Next Page
