JF-240UV User Manual
108

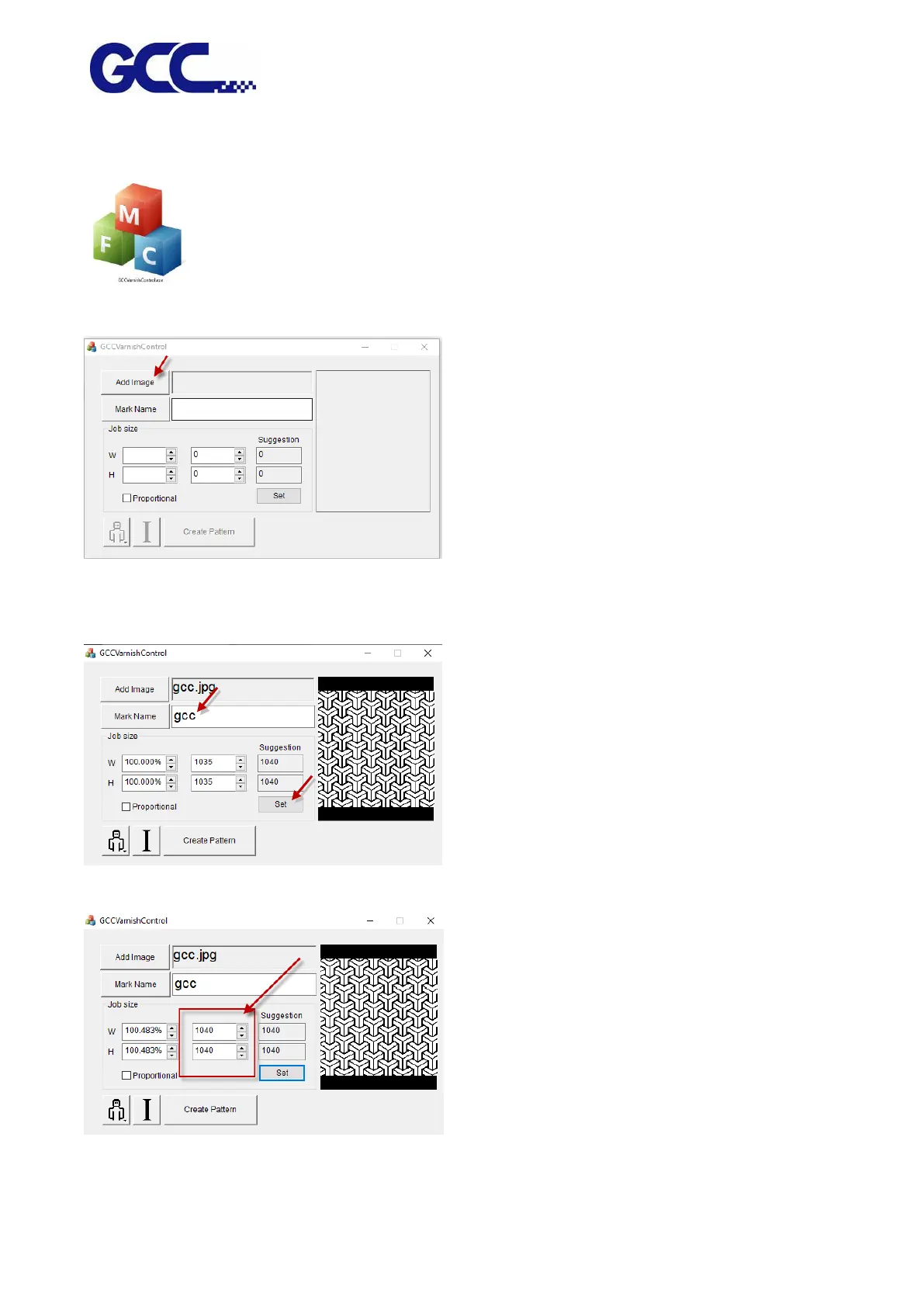

Step 1 Open the “GCCVarnishControl” file folder from the installation disc and click
GCCVarnishControl.exe
Step 2 Click “Add Image” and select the file you want to use to create the varnish pattern.
Step 3 Name the file in Mark Name and click Set.
Step 4 GCC VarnishControl will generate the pattern automatically.
Step 5 Click “Create Pattern” to save the varnish pattern. The pattern file will be saved to the
