Chapter 5: Advanced setup
TruVision DVR 10 User Manual 77
Option Description
PTZ type Specifies the PTZ protocols. See Appendix D “PTZ protocols” on page
101 for a list of PTZ types.
Note: If you select the Pelco-P protocol, define the PTZ address plus or
minus 1 the Camera ID. For example, if the camera ID is 2, the TVR 10
PTZ address should be set as 3.
Preset setup Displays the Preset Setup screen.
Preset tour setup Displays the Preset Tour Setup screen.
Shadow tour setup Displays the Shadow Tour Setup screen.
PTZ types
For a list of support PTZ types, see
Appendix D “PTZ protocols” on page 101.
Configuring the PTZ protocols for GE Security cameras
Before the PTZ cameras are assembled in their housings, set their protocol and
address DIP switches for the TVR 10. for the different GE Security’s PTZ camera
configurations. See Table 22 below for different GE Security PTZ camera settings.
If you are using PTZ cameras from another company, please refer to their
configuration instructions.

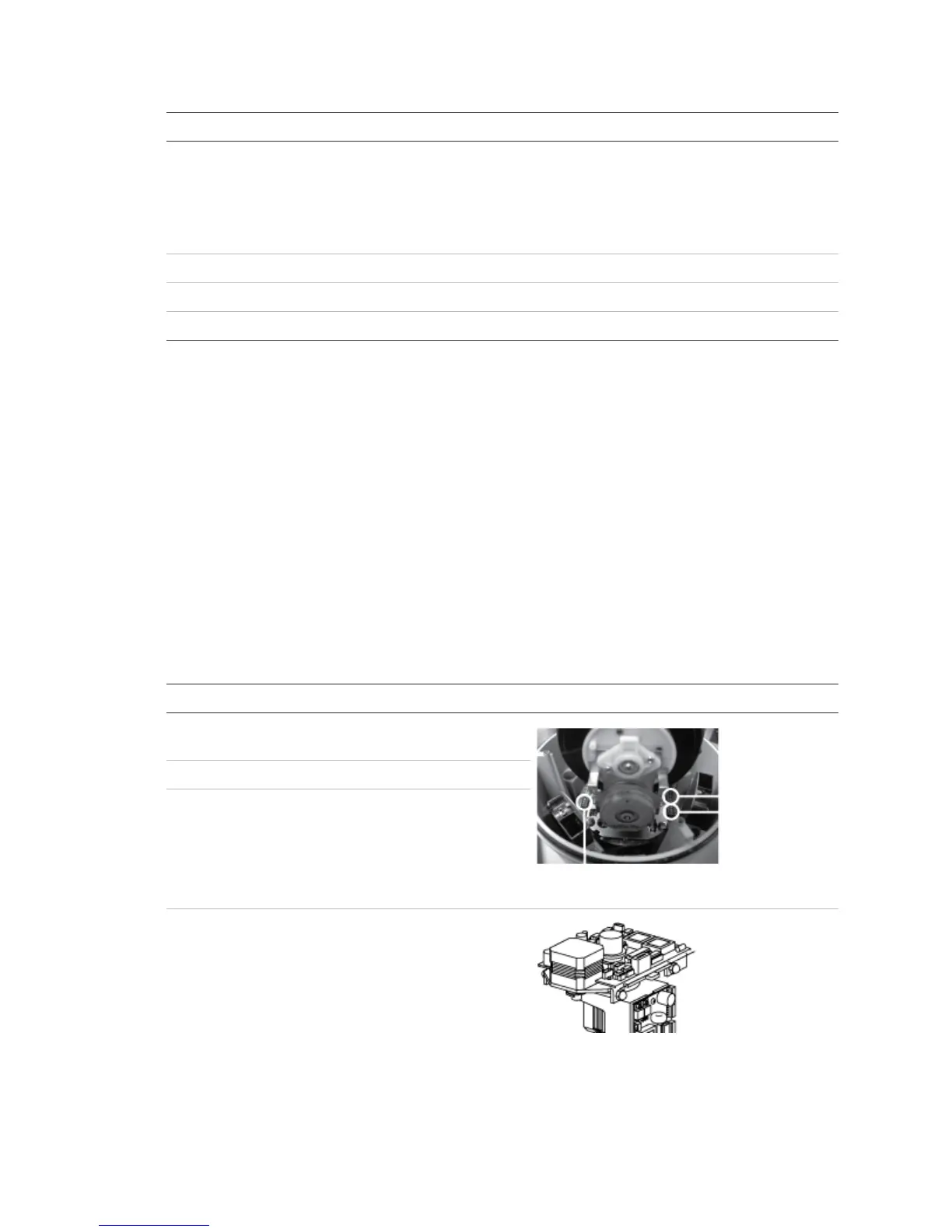

Table 22: Configuring GE Security PTZ cameras
Camera Switch setting
TruVision Dome
16 PTZ
Protocol switches 1011
Address switches 0000
Baud rate 0000
Protocol switches
Cyberdome Protocol switches Auto
Address
switches
Baud
switches
