Chapter 5: Advanced setup
76 TruVision DVR 10 User Manual
PTZ settings
Use the PTZ screen, shown as Figure 30 below, to define PTZ functions for cameras
connected to your TVR 10. An RS-485 port is available at the TVR 10 back panel for
PTZ control. You can define RS-485 settings to match your PTZ protocol such as:
• PTZ parameters (including baud rate, data bits, stop bits, parity, and flow control)
• PTZ protocol
• PTZ address
• Preset parameters
• Preset tour
• Shadow tour
To display the PTZ screen, click PTZ on the main menu.

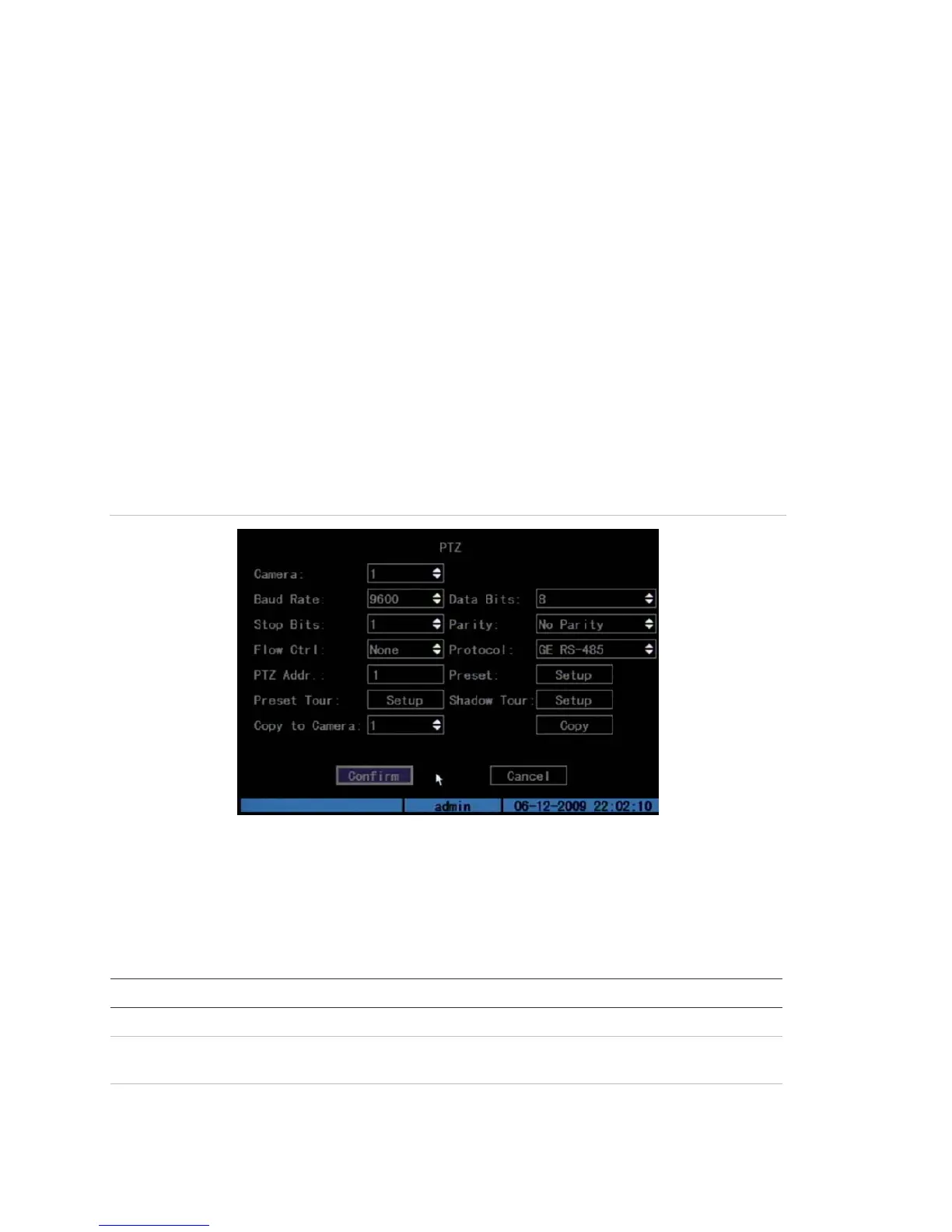

Figure 30: PTZ screen
PTZ screen options
Table 21 below describes the PTZ screen options.
Table 21: PTZ screen options
Option Description
Select camera Selects a PTZ camera.
PTZ parameters Parameters include: baud rate, data bit, stop bit, parity, and flow
control. These parameters must be the same as the PTZ protocols.
PTZ address Specifies the PTZ address. Each PTZ has a different address.
