GFK-0356Q Chapter 3 Baseplates 3-21
3

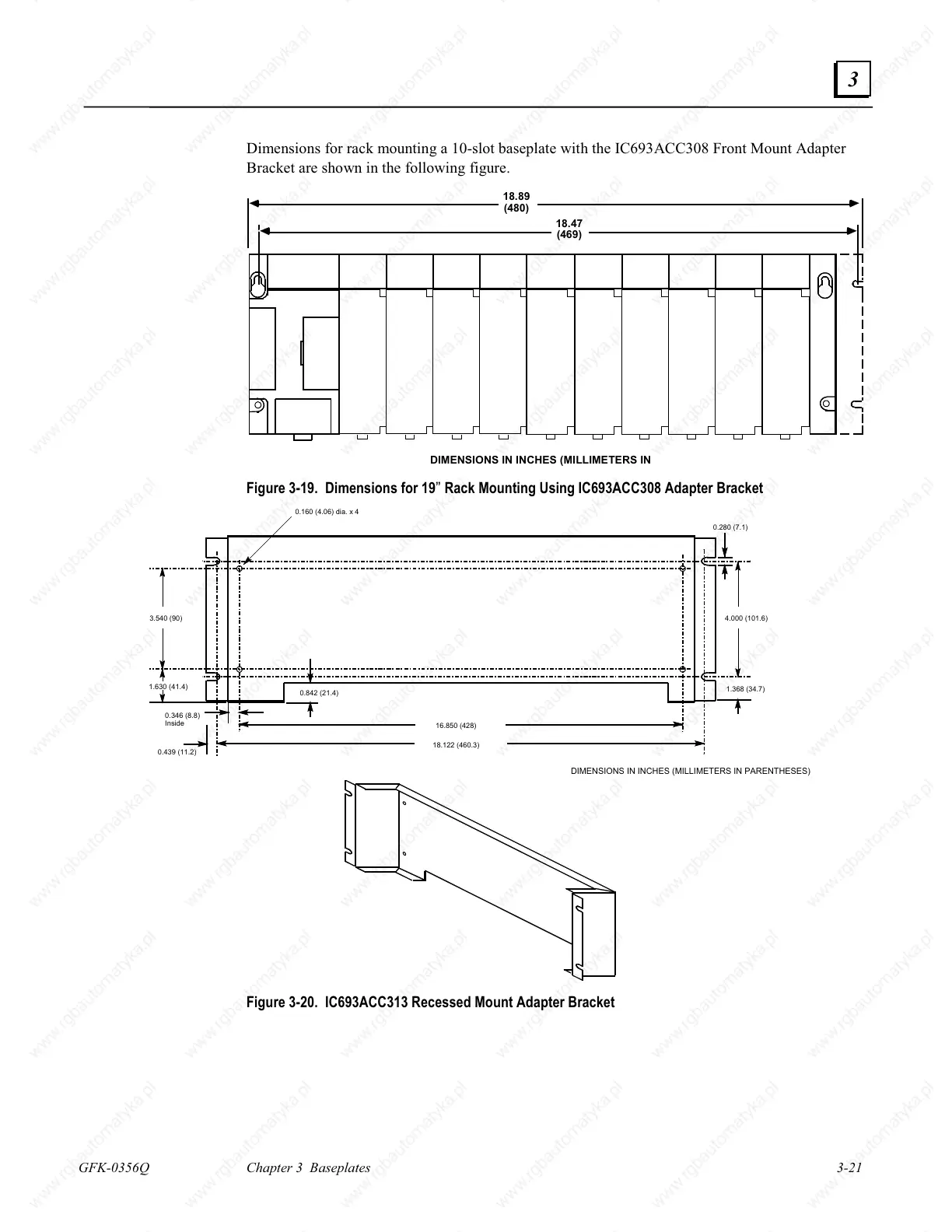

Dimensions for rack mounting a 10-slot baseplate with the IC693ACC308 Front Mount Adapter
Bracket are shown in the following figure.
DIMENSIONS IN INCHES (MILLIMETERS IN
18.89
(480)
18.47
(469)
Figure 3-19. Dimensions for 19 Rack Mounting Using IC693ACC308 Adapter Bracket
0.160 (4.06) dia. x 4
0.842 (21.4)
0.346 (8.8)
Inside
1.630 (41.4)
16.850 (428)
18.122 (460.3)
3.540 (90)
4.000 (101.6)
0.280 (7.1)
1.368 (34.7)
0.439 (11.2)
DIMENSIONS IN INCHES (MILLIMETERS IN PARENTHESES)
Figure 3-20. IC693ACC313 Recessed Mount Adapter Bracket
