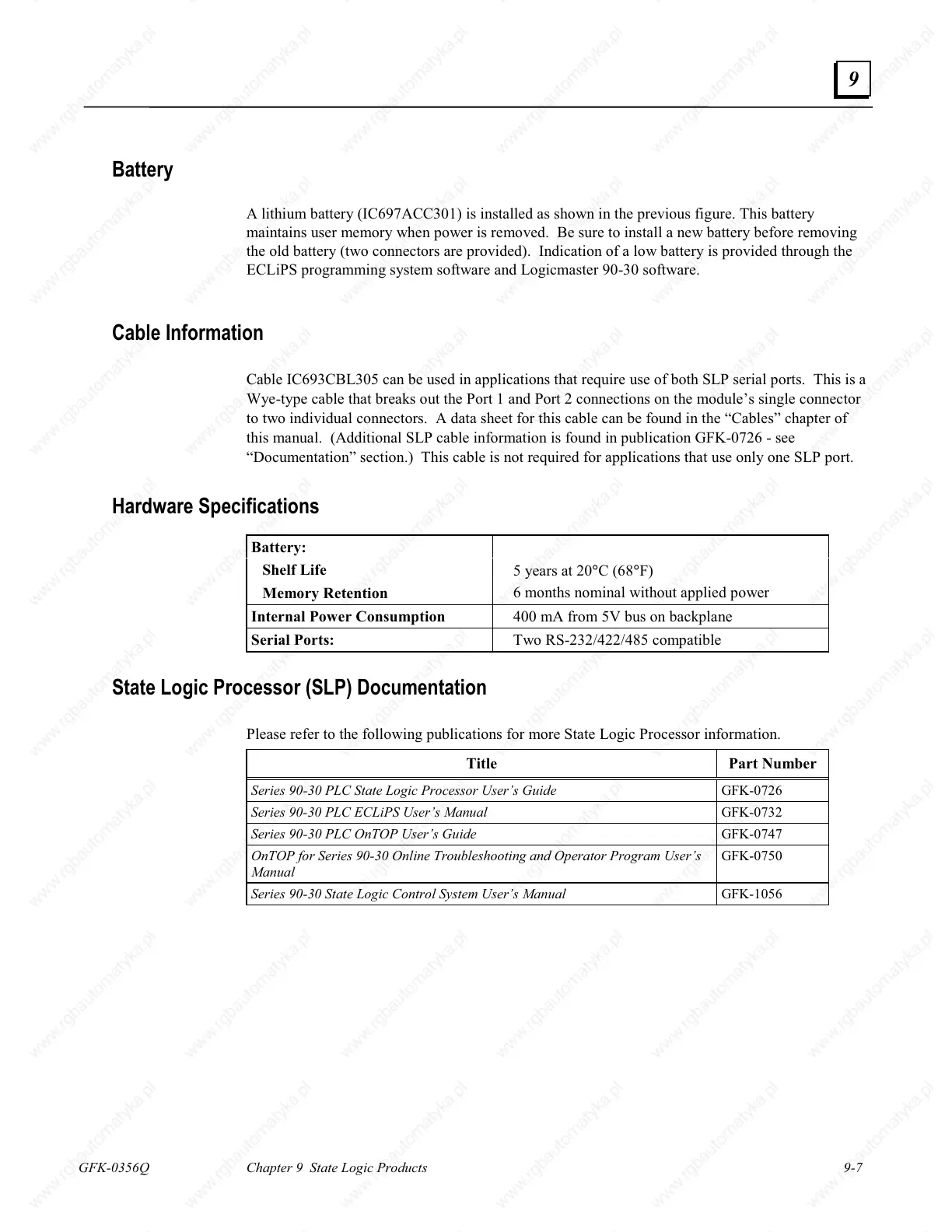

GFK-0356Q Chapter 9 State Logic Products 9-7
9
Battery
A lithium battery (IC697ACC30) is installed as shown in the previous figure. This battery
maintains user memory when power is removed. Be sure to install a new battery before removing
the old battery (two connectors are provided). Indication of a low battery is provided through the
ECLiPS programming system software and Logicmaster 90-30 software.
Cable Information
Cable IC693CBL305 can be used in applications that require use of both SLP serial ports. This is a
Wye-type cable that breaks out the Port and Port 2 connections on the module’s single connector
to two individual connectors. A data sheet for this cable can be found in the “Cables” chapter of
this manual. (Additional SLP cable information is found in publication GFK-0726 - see
“Documentation” section.) This cable is not required for applications that use only one SLP port.
Hardware Specifications
Battery:
Shelf Life
5 years at 20°C (68°F)
Memory Retention
6 months nominal without applied power
Internal Power Consumption
400 mA from 5V bus on backplane
Serial Ports:
Two RS-232/422/485 compatible
State Logic Processor (SLP) Documentation
Please refer to the following publications for more State Logic Processor information.
Title Part Number
Series 90-30 PLC State Logic Processor User’s Guide
GFK-0726
Series 90-30 PLC ECLiPS User’s Manual
GFK-0732
Series 90-30 PLC OnTOP User’s Guide
GFK-0747
OnTOP for Series 90-30 Online Troubleshooting and Operator Program User’s
Manual
GFK-0750
Series 90-30 State Logic Control System User’s Manual
GFK-056
