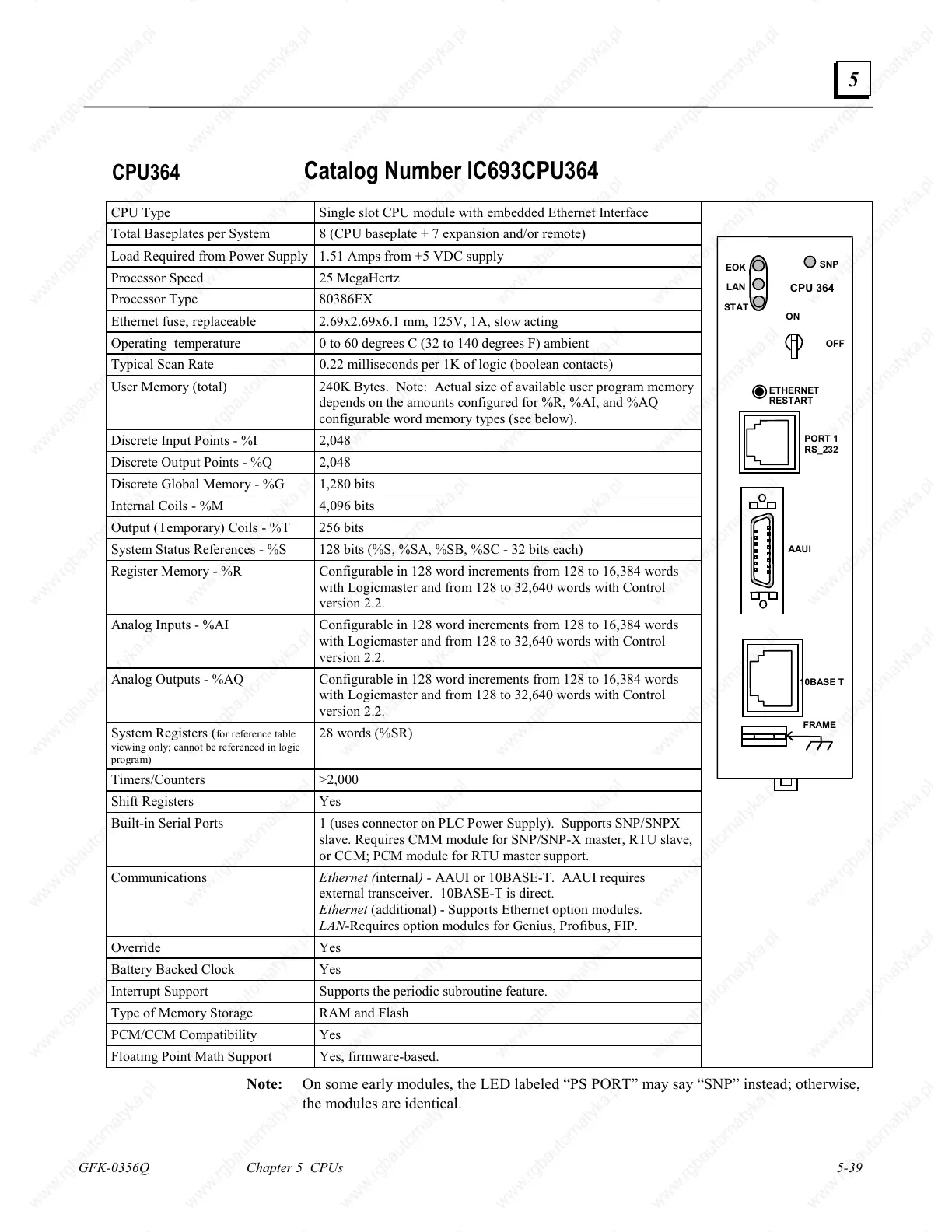

GE 90*-30 PLC Series Installation And Hardware Manual

GFK-0356Q Chapter 5 CPUs 5-39
5
CPU364
Catalog Number IC693CPU364
CPU Type Single slot CPU module with embedded Ethernet Interface
Total Baseplates per System 8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply 1.51 Amps from +5 VDC supply
Processor Speed 25 MegaHertz
Processor Type 80386EX
Ethernet fuse, replaceable 2.69x2.69x6.1 mm, 125V, 1A, slow acting
Operating temperature 0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate 0.22 milliseconds per 1K of logic (boolean contacts)
User Memory (total) 240K Bytes. Note: Actual size of available user program memory
depends on the amounts configured for %R, %AI, and %AQ
configurable word memory types (see below).
Discrete Input Points - %I 2,048
Discrete Output Points - %Q 2,048
Discrete Global Memory - %G 1,280 bits
Internal Coils - %M 4,096 bits
Output (Temporary) Coils - %T 256 bits
System Status References - %S 128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R Configurable in 128 word increments from 128 to 16,384 words
with Logicmaster and from 128 to 32,640 words with Control
version 2.2.
Analog Inputs - %AI Configurable in 128 word increments from 128 to 16,384 words
with Logicmaster and from 128 to 32,640 words with Control
version 2.2.
Analog Outputs - %AQ Configurable in 128 word increments from 128 to 16,384 words
with Logicmaster and from 128 to 32,640 words with Control
version 2.2.
System Registers (
for reference table
viewing only; cannot be referenced in logic
program)
28 words (%SR)
Timers/Counters >2,000
Shift Registers Yes
Built-in Serial Ports 1 (uses connector on PLC Power Supply). Supports SNP/SNPX
slave. Requires CMM module for SNP/SNP-X master, RTU slave,
or CCM; PCM module for RTU master support.
Communications
Ethernet (
internal
)
- AAUI or 10BASE-T. AAUI requires
external transceiver. 10BASE-T is direct.
Ethernet
(additional) - Supports Ethernet option modules.
LAN
-Requires option modules for Genius, Profibus, FIP.
Override Yes
Battery Backed Clock Yes
Interrupt Support Supports the periodic subroutine feature.
Type of Memory Storage RAM and Flash
PCM/CCM Compatibility Yes
Floating Point Math Support Yes, firmware-based.
CPU 364
SNP
RS_232
PORT 1
AAUI
EOK
LAN
FRAME
STAT
ETHERNET
RESTART
10BASE T
ON
OFF
Note: On some early modules, the LED labeled “PS PORT” may say “SNP” instead; otherwise,
the modules are identical.
