5-34 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
5

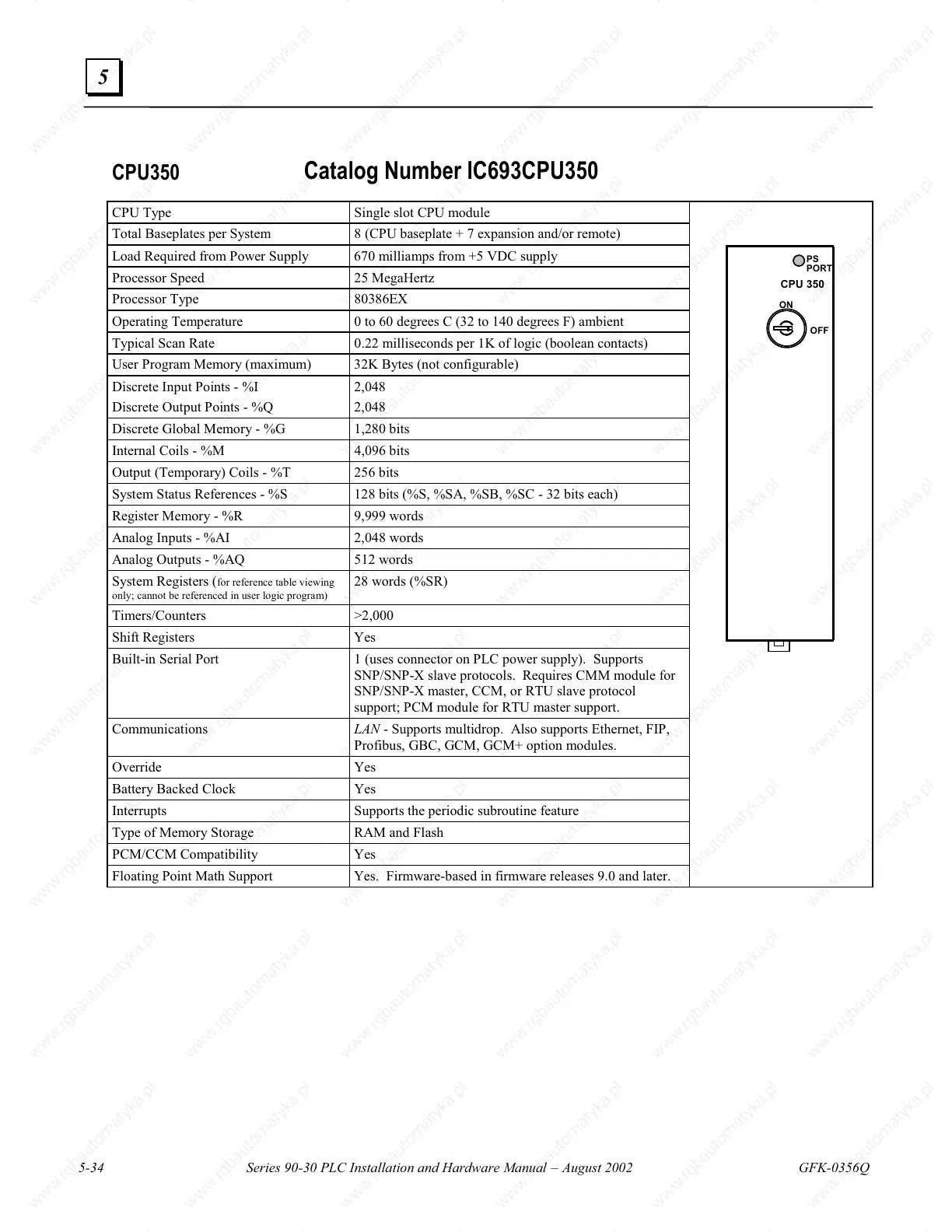

CPU350
Catalog Number IC693CPU350
CPU Type Single slot CPU module
Total Baseplates per System 8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply 670 milliamps from +5 VDC supply
Processor Speed 25 MegaHertz
Processor Type 80386EX
Operating Temperature 0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate 0.22 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum) 32K Bytes (not configurable)
Discrete Input Points - %I 2,048
Discrete Output Points - %Q 2,048
Discrete Global Memory - %G 1,280 bits
Internal Coils - %M 4,096 bits
Output (Temporary) Coils - %T 256 bits
System Status References - %S 128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R 9,999 words
Analog Inputs - %AI 2,048 words
Analog Outputs - %AQ 512 words
System Registers (
for reference table viewing
only; cannot be referenced in user logic program)
28 words (%SR)
Timers/Counters >2,000
Shift Registers Yes
Built-in Serial Port 1 (uses connector on PLC power supply). Supports
SNP/SNP-X slave protocols. Requires CMM module for
SNP/SNP-X master, CCM, or RTU slave protocol
support; PCM module for RTU master support.
Communications
LAN
- Supports multidrop. Also supports Ethernet, FIP,
Profibus, GBC, GCM, GCM+ option modules.
Override Yes
Battery Backed Clock Yes
Interrupts Supports the periodic subroutine feature
Type of Memory Storage RAM and Flash
PCM/CCM Compatibility Yes
Floating Point Math Support Yes. Firmware-based in firmware releases 9.0 and later.
CPU 350
PORT
ON
OFF
PS
