Cables

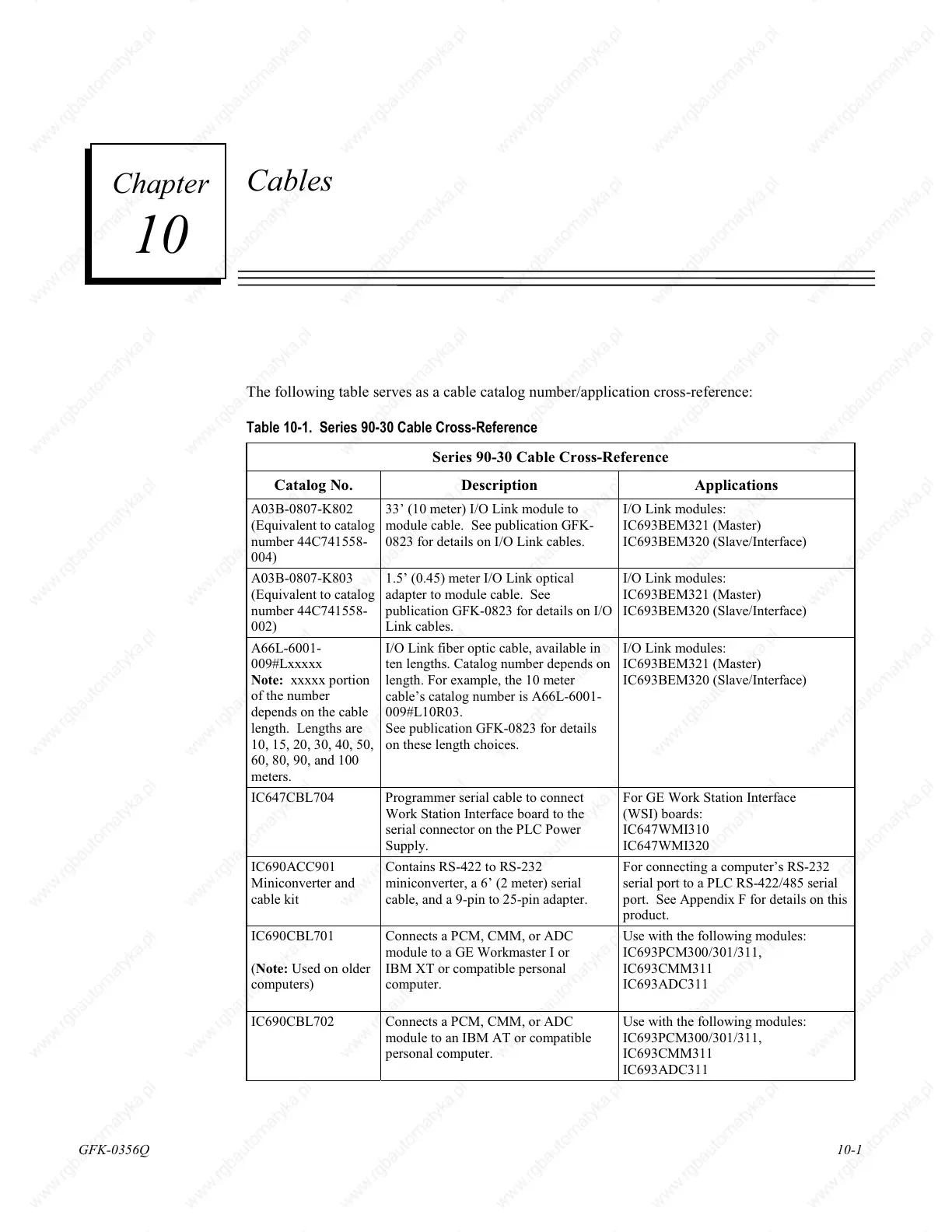

The following table serves as a cable catalog number/application cross-reference:
Table 10-1. Series 90-30 Cable Cross-Reference
Series 90-30 Cable Cross-Reference
Catalog No. Description Applications
A03B-0807-K802
(Equivalent to catalog
number 44C741558-
004)
33’ (10 meter) I/O Link module to
module cable. See publication GFK-
0823 for details on I/O Link cables.
I/O Link modules:
IC693BEM321 (Master)
IC693BEM320 (Slave/Interface)
A03B-0807-K803
(Equivalent to catalog
number 44C741558-
002)
1.5’ (0.45) meter I/O Link optical
adapter to module cable. See
publication GFK-0823 for details on I/O
Link cables.
I/O Link modules:
IC693BEM321 (Master)
IC693BEM320 (Slave/Interface)
A66L-6001-
009#Lxxxxx
Note: xxxxx portion
of the number
depends on the cable
length. Lengths are
10, 15, 20, 30, 40, 50,
60, 80, 90, and 100
meters.
I/O Link fiber optic cable, available in
ten lengths. Catalog number depends on
length. For example, the 10 meter
cable’s catalog number is A66L-6001-
009#L10R03.
See publication GFK-0823 for details
on these length choices.
I/O Link modules:
IC693BEM321 (Master)
IC693BEM320 (Slave/Interface)
IC647CBL704 Programmer serial cable to connect
Work Station Interface board to the
serial connector on the PLC Power
Supply.
For GE Work Station Interface
(WSI) boards:
IC647WMI310
IC647WMI320
IC690ACC901
Miniconverter and
cable kit
Contains RS-422 to RS-232
miniconverter, a 6’ (2 meter) serial
cable, and a 9-pin to 25-pin adapter.
For connecting a computer’s RS-232
serial port to a PLC RS-422/485 serial
port. See Appendix F for details on this
product.
IC690CBL701
(Note: Used on older
computers)
Connects a PCM, CMM, or ADC
module to a GE Workmaster I or
IBM XT or compatible personal
computer.
Use with the following modules:
IC693PCM300/301/311,
IC693CMM311
IC693ADC311
IC690CBL702 Connects a PCM, CMM, or ADC
module to an IBM AT or compatible
personal computer.
Use with the following modules:
IC693PCM300/301/311,
IC693CMM311
IC693ADC311
