10-2 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
10

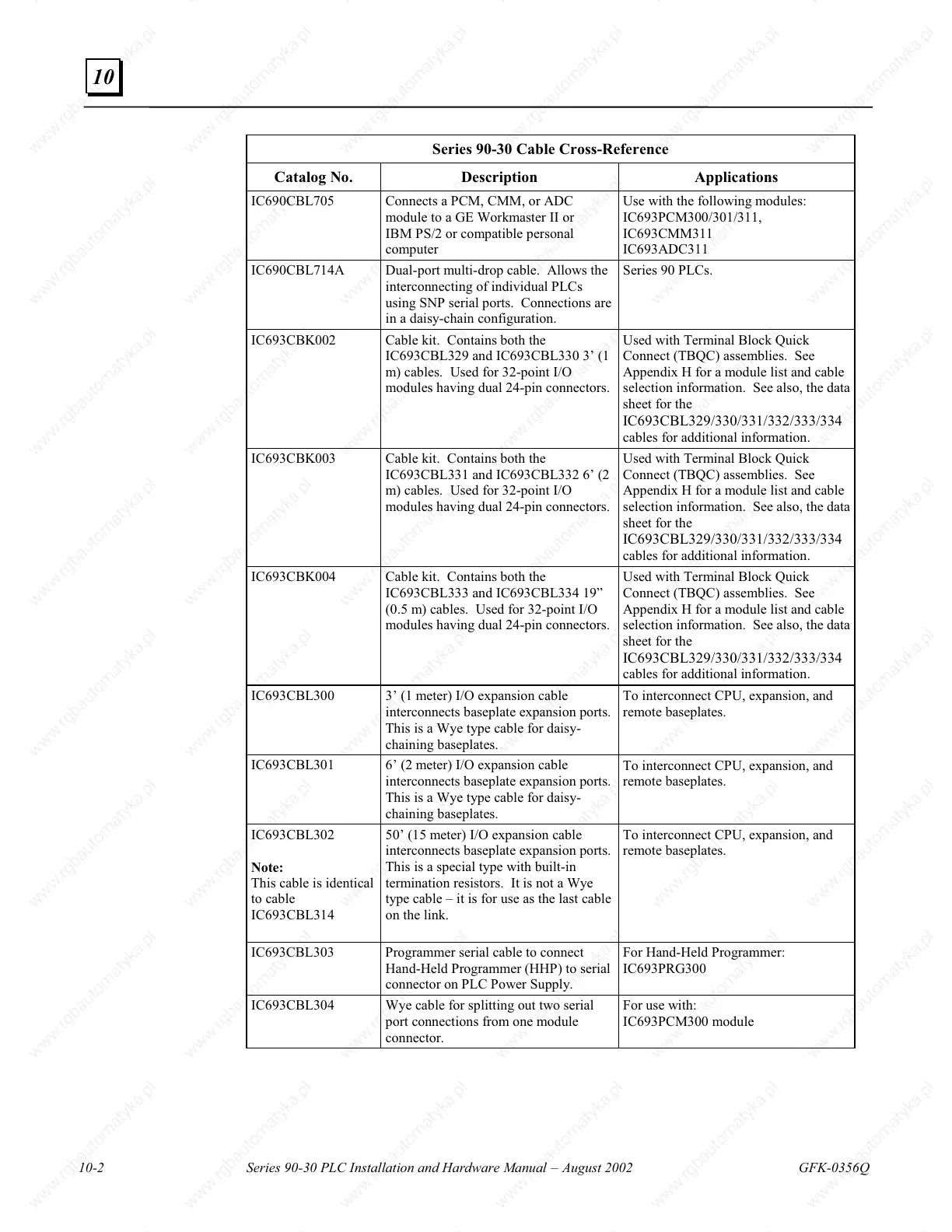

Series 90-30 Cable Cross-Reference
Catalog No. Description Applications
IC690CBL705 Connects a PCM, CMM, or ADC
module to a GE Workmaster II or
IBM PS/2 or compatible personal
computer
Use with the following modules:
IC693PCM300/301/311,
IC693CMM311
IC693ADC311
IC690CBL714A Dual-port multi-drop cable. Allows the
interconnecting of individual PLCs
using SNP serial ports. Connections are
in a daisy-chain configuration.
Series 90 PLCs.
IC693CBK002 Cable kit. Contains both the
IC693CBL329 and IC693CBL330 3’ (1
m) cables. Used for 32-point I/O
modules having dual 24-pin connectors.
Used with Terminal Block Quick
Connect (TBQC) assemblies. See
Appendix H for a module list and cable
selection information. See also, the data
sheet for the
IC693CBL329/330/331/332/333/334
cables for additional information.
IC693CBK003 Cable kit. Contains both the
IC693CBL331 and IC693CBL332 6’ (2
m) cables. Used for 32-point I/O
modules having dual 24-pin connectors.
Used with Terminal Block Quick
Connect (TBQC) assemblies. See
Appendix H for a module list and cable
selection information. See also, the data
sheet for the
IC693CBL329/330/331/332/333/334
cables for additional information.
IC693CBK004 Cable kit. Contains both the
IC693CBL333 and IC693CBL334 19”
(0.5 m) cables. Used for 32-point I/O
modules having dual 24-pin connectors.
Used with Terminal Block Quick
Connect (TBQC) assemblies. See
Appendix H for a module list and cable
selection information. See also, the data
sheet for the
IC693CBL329/330/331/332/333/334
cables for additional information.
IC693CBL300 3’ (1 meter) I/O expansion cable
interconnects baseplate expansion ports.
This is a Wye type cable for daisy-
chaining baseplates.
To interconnect CPU, expansion, and
remote baseplates.
IC693CBL301 6’ (2 meter) I/O expansion cable
interconnects baseplate expansion ports.
This is a Wye type cable for daisy-
chaining baseplates.
To interconnect CPU, expansion, and
remote baseplates.
IC693CBL302
Note:
This cable is identical
to cable
IC693CBL314
50’ (15 meter) I/O expansion cable
interconnects baseplate expansion ports.
This is a special type with built-in
termination resistors. It is not a Wye
type cable – it is for use as the last cable
on the link.
To interconnect CPU, expansion, and
remote baseplates.
IC693CBL303 Programmer serial cable to connect
Hand-Held Programmer (HHP) to serial
connector on PLC Power Supply.
For Hand-Held Programmer:
IC693PRG300
IC693CBL304 Wye cable for splitting out two serial
port connections from one module
connector.
For use with:
IC693PCM300 module
