7-6 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
7
Wiring Methods for 32-Point Discrete I/O Modules
Modules with Single 50-Pin Connector
Three choices are available for connecting these modules.
Ŷ Connect to a Weidmuller #92263 terminal block using one of the two GE
“extension”
cables (see next figure). Cable IC693CBL306 is 3 feet (meter) long. Cable IC693CBL307 is
6 feet (2 meters) long. Chapter 0, “Cables,” has details on these cables.
Ŷ Connect to a user-supplied terminal block/strip or I/O field devices using one of the two GE
“interface” cables. These cables have a 50-pin connector on one end that plugs into the
module, and stripped, tinned leads on the other for wiring to a terminal block/strip or I/O field
devices. Cable IC693CBL308 is 3 feet ( meter) long, and cable IC693CBL309 is 6 feet (2
meters) long. These cables are useful if you have to run your wiring through conduit that is
too small for a connector to fit through.
Ŷ Build a custom length cable. This is required if you need a cable longer than 6 feet (2 meters).
See the IC693CBL308/309 data sheet in Chapter 0 for pin-out details.
1234
56789
10
11
12 13 14 15 16 17 18 19 20 21 22 23 24 25
26
27 28 29
30
31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
Series 90-30 PLC
End
View
Top
View
50-Pin, 32-Point
I/O Module
a44838A
IC693CBL306/30
Extension Cable
Weidmuller 912263
Terminal Block
Mounts on
DIN-Rail
1
50

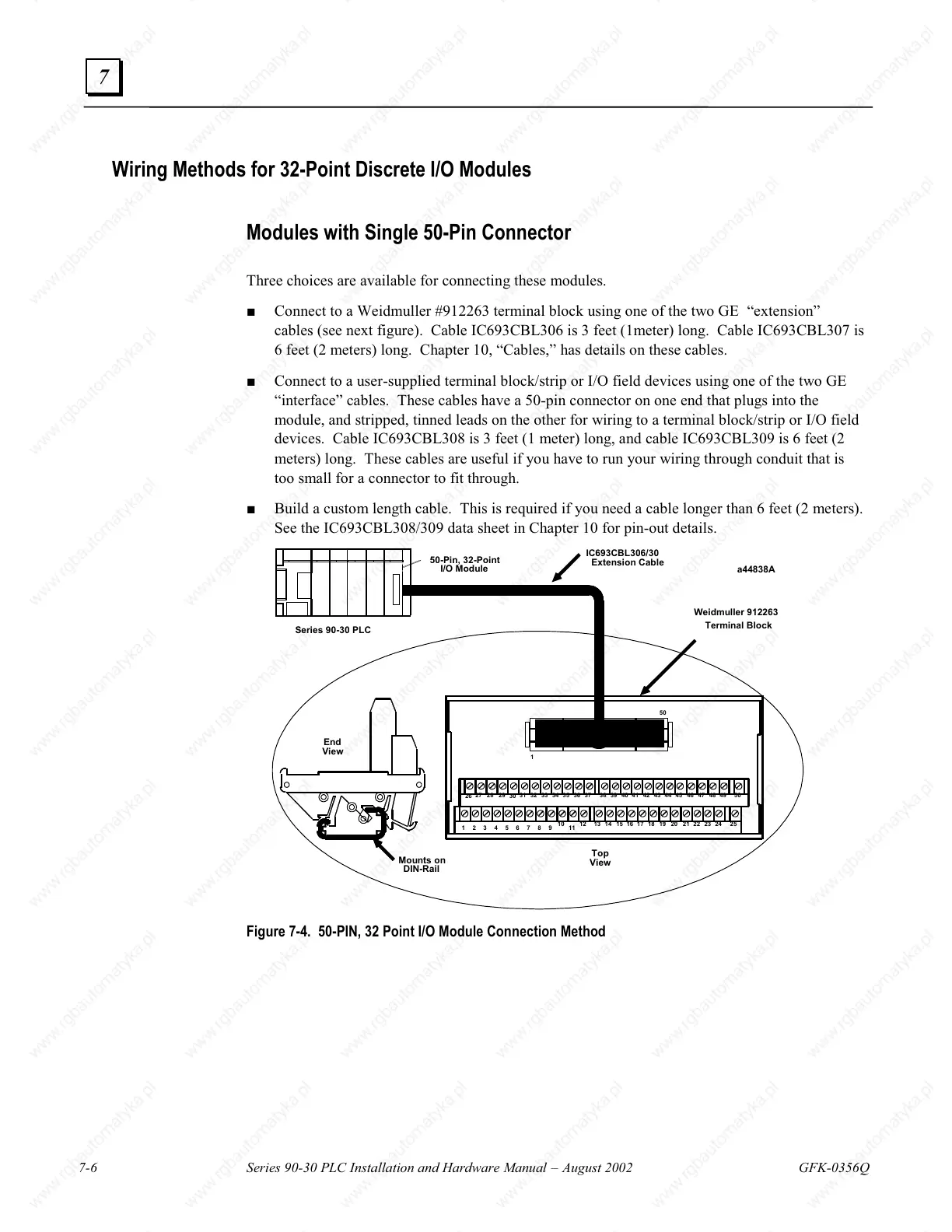

Figure 7-4. 50-PIN, 32 Point I/O Module Connection Method
