GFK-0356Q Chapter 3 Baseplates 3-7
3

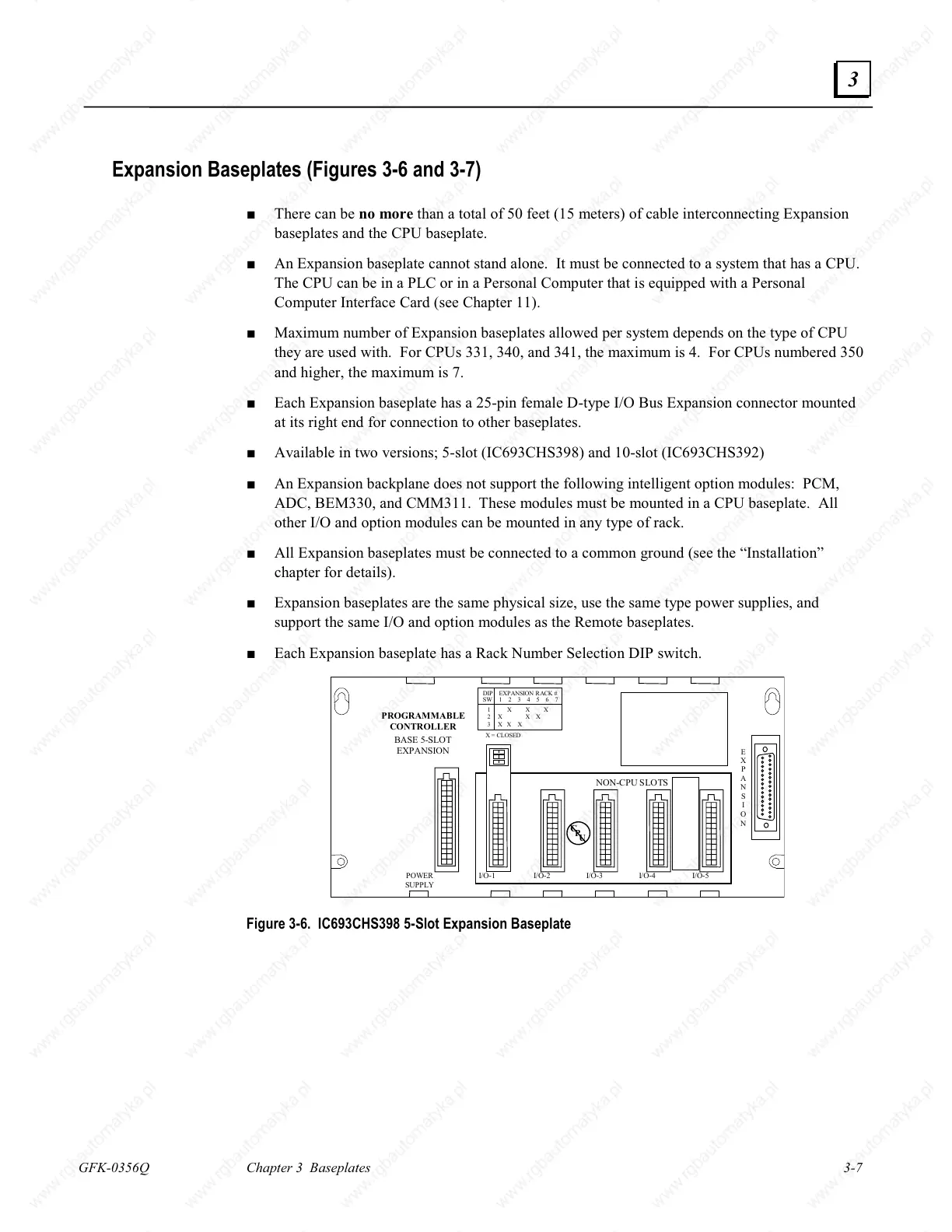

Expansion Baseplates (Figures 3-6 and 3-7)
Ŷ There can be no more than a total of 50 feet (15 meters) of cable interconnecting Expansion
baseplates and the CPU baseplate.
Ŷ An Expansion baseplate cannot stand alone. It must be connected to a system that has a CPU.
The CPU can be in a PLC or in a Personal Computer that is equipped with a Personal
Computer Interface Card (see Chapter 11).
Ŷ Maximum number of Expansion baseplates allowed per system depends on the type of CPU
they are used with. For CPUs 331, 340, and 341, the maximum is 4. For CPUs numbered 350
and higher, the maximum is 7.
Ŷ Each Expansion baseplate has a 25-pin female D-type I/O Bus Expansion connector mounted
at its right end for connection to other baseplates.
Ŷ Available in two versions; 5-slot (IC693CHS398) and 10-slot (IC693CHS392)
Ŷ An Expansion backplane does not support the following intelligent option modules: PCM,
ADC, BEM330, and CMM311. These modules must be mounted in a CPU baseplate. All
other I/O and option modules can be mounted in any type of rack.
Ŷ All Expansion baseplates must be connected to a common ground (see the “Installation”
chapter for details).
Ŷ Expansion baseplates are the same physical size, use the same type power supplies, and
support the same I/O and option modules as the Remote baseplates.
Ŷ Each Expansion baseplate has a Rack Number Selection DIP switch.
PROGRAMMABLE
CONTROLLER
BASE 5-SLOT
EXPANSION
I/O-2 I/O-3 I/O-4 I/O-5I/O-1
POWER
SUPPLY
ON-CPU SLOTS
C
P
U
E
X
P
A
N
S
I
O
N
EXPANSION RACK #
1 2 3 4 5 6 7
DIP
SW
1
2
3
X = CLOSED
Figure 3-6. IC693CHS398 5-Slot Expansion Baseplate
