GFK-0356Q Chapter 10 Cables 10-51
10

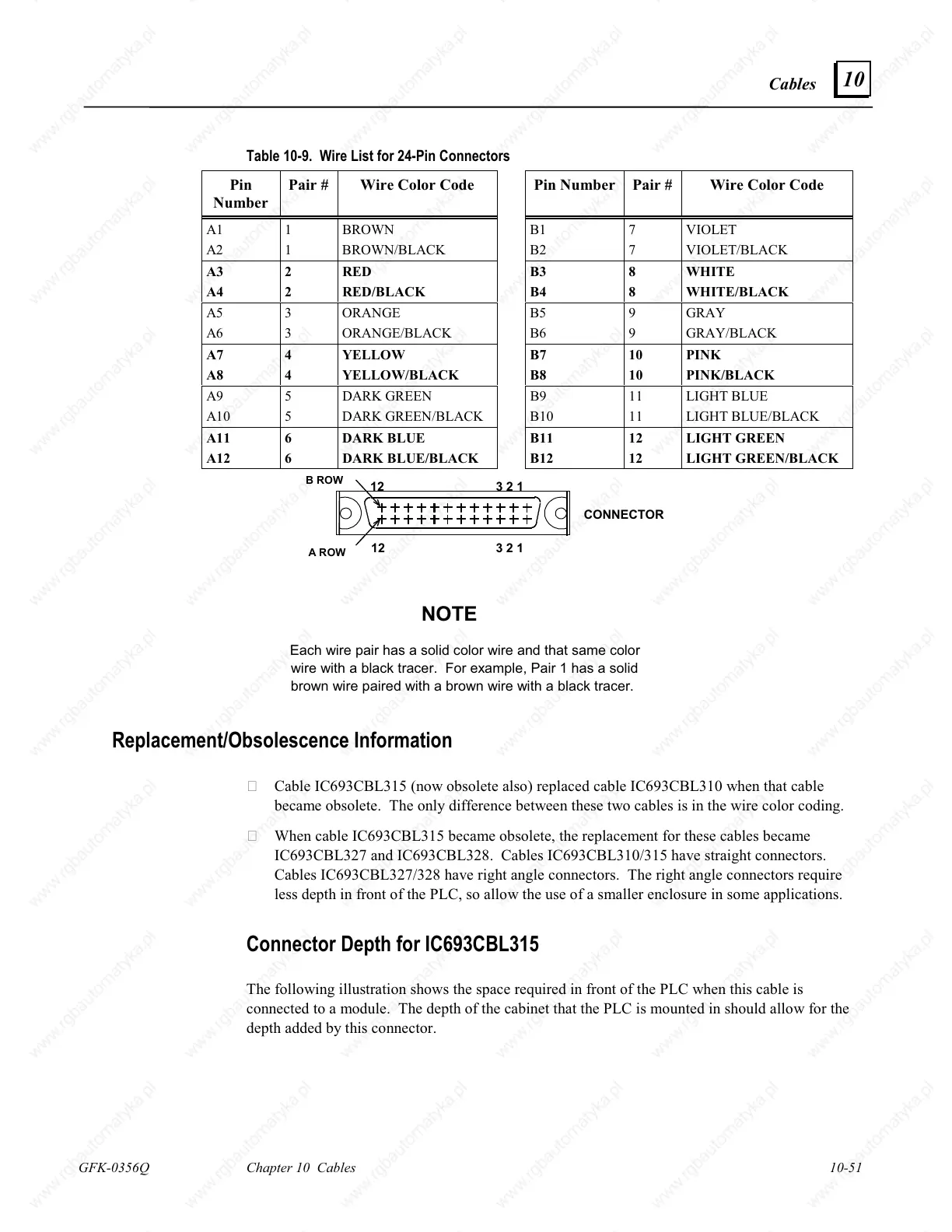

Table 10-9. Wire List for 24-Pin Connectors
Pin
Number
Pair # Wire Color Code Pin Number Pair # Wire Color Code
A1 1 BROWN B1 7 VIOLET
A2 1 BROWN/BLACK B2 7 VIOLET/BLACK
A3 2 RED B3 8 WHITE
A4 2 RED/BLACK B4 8 WHITE/BLACK
A5 3 ORANGE B5 9 GRAY
A6 3 ORANGE/BLACK B6 9 GRAY/BLACK
A7 4 YELLOW B7 10 PINK
A8 4 YELLOW/BLACK B8 10 PINK/BLACK
A9 5 DARK GREEN B9 11 LIGHT BLUE
A10 5 DARK GREEN/BLACK B10 11 LIGHT BLUE/BLACK
A11 6 DARK BLUE B11 12 LIGHT GREEN
A12 6 DARK BLUE/BLACK B12 12 LIGHT GREEN/BLACK
CONNECTOR
3 2 1
12
12
3 2 1
B ROW
A ROW
NOTE
Each wire pair has a solid color wire and that same color
wire with a black tracer. For example, Pair 1 has a solid
brown wire paired with a brown wire with a black tracer.
Replacement/Obsolescence Information
 Cable IC693CBL315 (now obsolete also) replaced cable IC693CBL310 when that cable
became obsolete. The only difference between these two cables is in the wire color coding.
 When cable IC693CBL315 became obsolete, the replacement for these cables became
IC693CBL327 and IC693CBL328. Cables IC693CBL310/315 have straight connectors.
Cables IC693CBL327/328 have right angle connectors. The right angle connectors require
less depth in front of the PLC, so allow the use of a smaller enclosure in some applications.
Connector Depth for IC693CBL315
The following illustration shows the space required in front of the PLC when this cable is
connected to a module. The depth of the cabinet that the PLC is mounted in should allow for the
depth added by this connector.
