GE 90*-30 PLC Series Installation And Hardware Manual

Cables
GFK-0356Q Chapter 10 Cables 10-65
10

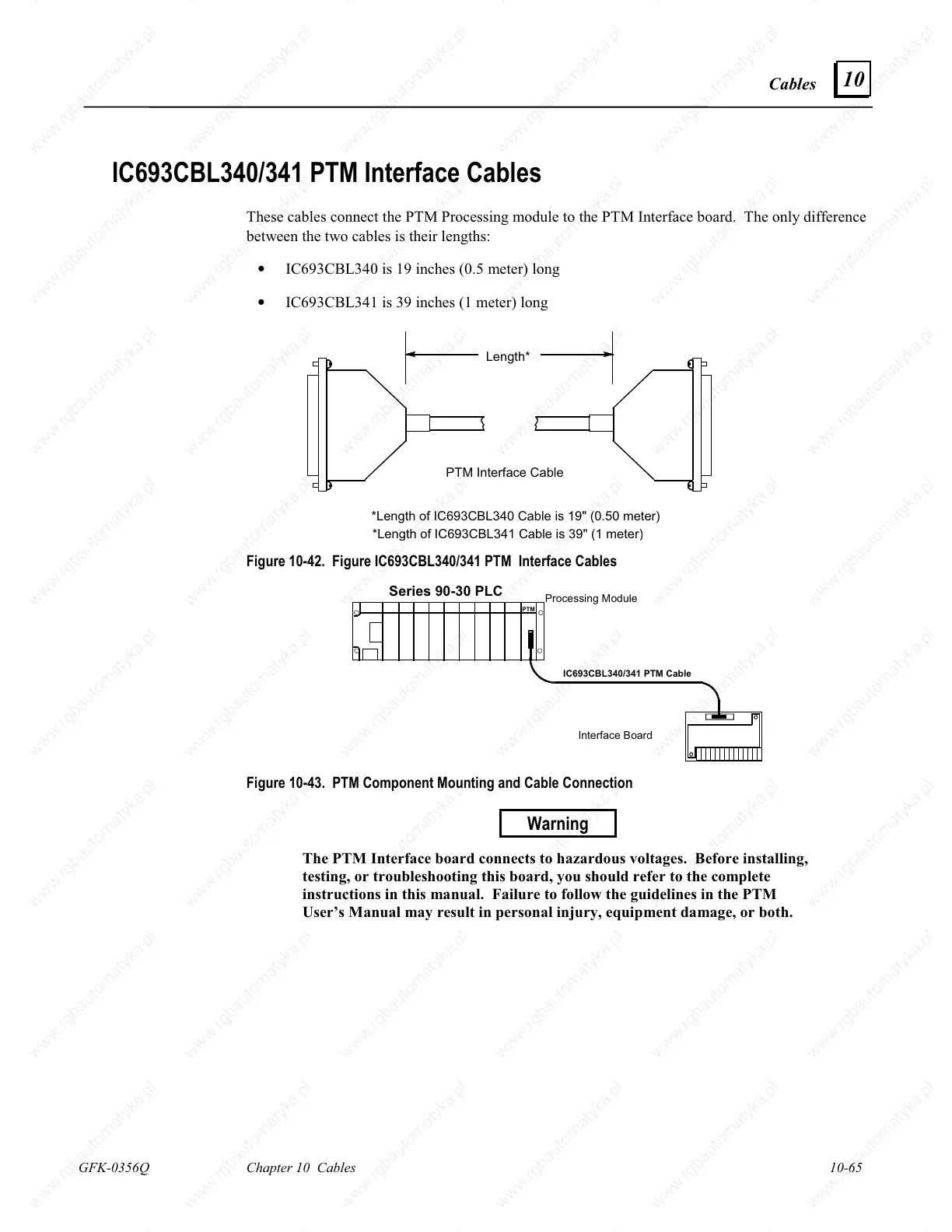

IC693CBL340/341 PTM Interface Cables
These cables connect the PTM Processing module to the PTM Interface board. The only difference
between the two cables is their lengths:
• IC693CBL340 is 19 inches (0.5 meter) long
• IC693CBL341 is 39 inches (1 meter) long
Length*
*Length of IC693CBL340 Cable is 19" (0.50 meter)
*Len
g
th of IC693CBL341 Cable is 39"
(
1 meter
)
PTM Interface Cable
Figure 10-42. Figure IC693CBL340/341 PTM Interface Cables
Series 90-30 PLC
PTM
IC693CBL340/341 PTM Cable
Interface Board
Processing Module
Figure 10-43. PTM Component Mounting and Cable Connection
Warning
The PTM Interface board connects to hazardous voltages. Before installing,
testing, or troubleshooting this board, you should refer to the complete
instructions in this manual. Failure to follow the guidelines in the PTM
User’s Manual may result in personal injury, equipment damage, or both.
