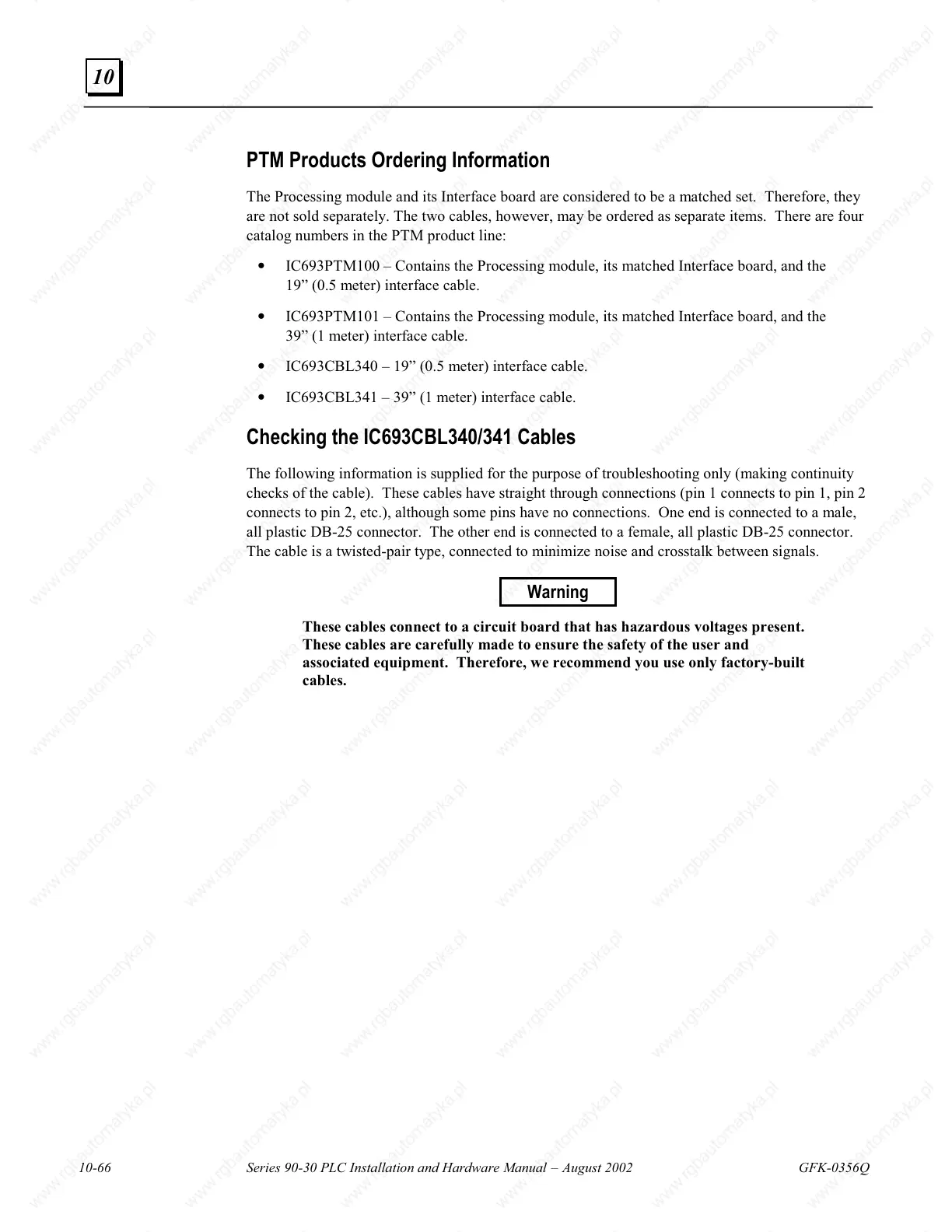

10-66 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
10
PTM Products Ordering Information
The Processing module and its Interface board are considered to be a matched set. Therefore, they
are not sold separately. The two cables, however, may be ordered as separate items. There are four
catalog numbers in the PTM product line:
• IC693PTM100 – Contains the Processing module, its matched Interface board, and the
19” (0.5 meter) interface cable.
• IC693PTM101 – Contains the Processing module, its matched Interface board, and the
39” (1 meter) interface cable.
• IC693CBL340 – 19” (0.5 meter) interface cable.
• IC693CBL341 – 39” (1 meter) interface cable.
Checking the IC693CBL340/341 Cables
The following information is supplied for the purpose of troubleshooting only (making continuity
checks of the cable). These cables have straight through connections (pin 1 connects to pin 1, pin 2
connects to pin 2, etc.), although some pins have no connections. One end is connected to a male,
all plastic DB-25 connector. The other end is connected to a female, all plastic DB-25 connector.
The cable is a twisted-pair type, connected to minimize noise and crosstalk between signals.
Warning
These cables connect to a circuit board that has hazardous voltages present.
These cables are carefully made to ensure the safety of the user and
associated equipment. Therefore, we recommend you use only factory-built
cables.
