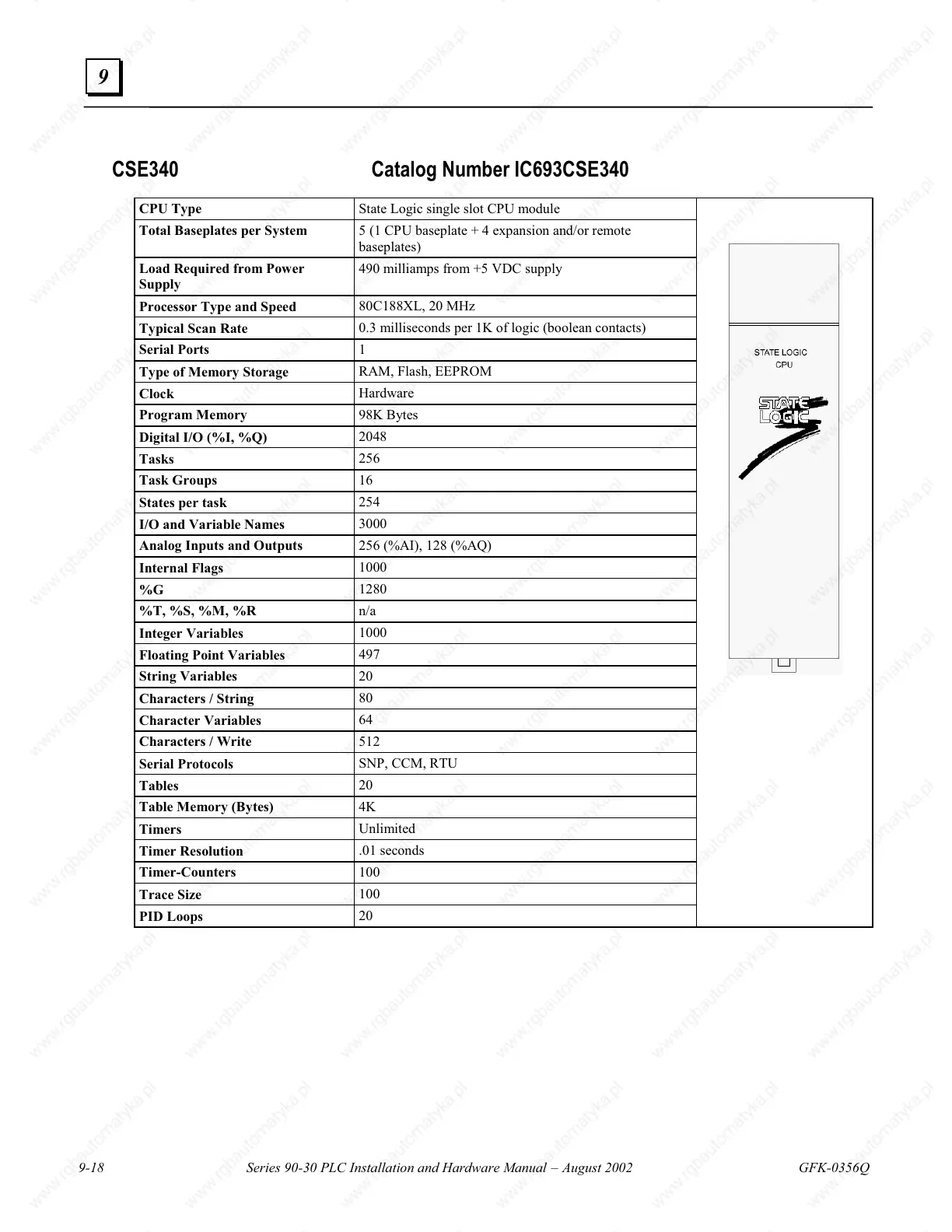

9-18 Series 90-30 PLC Installation and Hardware Manual
–
August 2002 GFK-0356Q
9
CSE340 Catalog Number IC693CSE340
CPU Type
State Logic single slot CPU module
Total Baseplates per System
5 ( CPU baseplate + 4 expansion and/or remote
baseplates)
Load Required from Power
Supply
490 milliamps from +5 VDC supply
Processor Type and Speed
80C88XL, 20 MHz
Typical Scan Rate
0.3 milliseconds per K of logic (boolean contacts)
Serial Ports

Type of Memory Storage
RAM, Flash, EEPROM
Clock
Hardware
Program Memory
98K Bytes
Digital I/O (%I, %Q)
2048
Tasks
256
Task Groups
6
States per task
254
I/O and Variable Names
3000
Analog Inputs and Outputs
256 (%AI), 28 (%AQ)
Internal Flags
000
%G
280
%T, %S, %M, %R
n/a
Integer Variables
000
Floating Point Variables
497
String Variables
20
Characters / String
80
Character Variables
64
Characters / Write
52
Serial Protocols
SNP, CCM, RTU
Tables
20
Table Memory (Bytes)
4K
Timers
Unlimited
Timer Resolution
.0 seconds
Timer-Counters
00
Trace Size
00
PID Loops
20
