Cables
GFK-0356Q Chapter 10 Cables 10-63
10

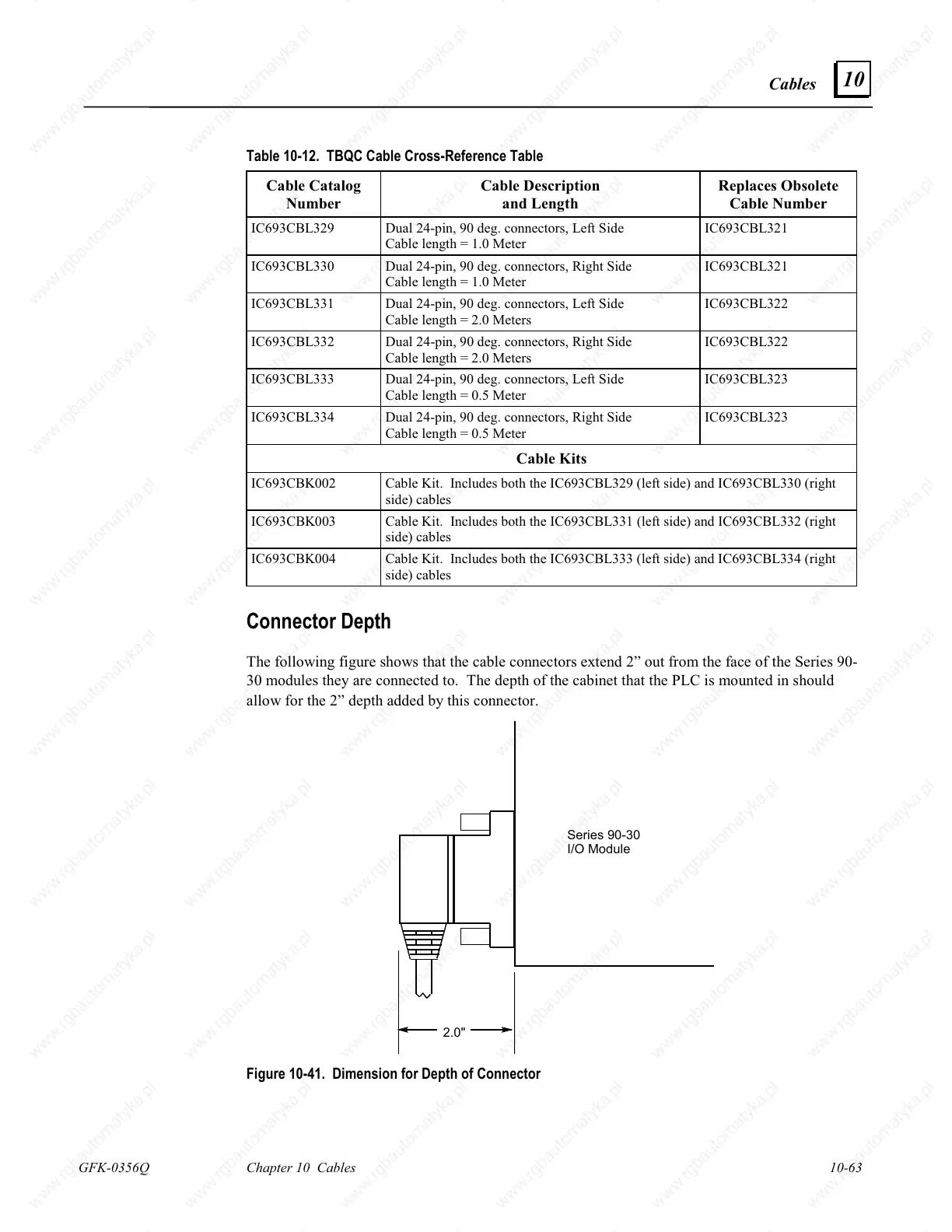

Table 10-12. TBQC Cable Cross-Reference Table
Cable Catalog
Number
Cable Description
and Length
Replaces Obsolete
Cable Number
IC693CBL329 Dual 24-pin, 90 deg. connectors, Left Side
Cable length = 1.0 Meter
IC693CBL321
IC693CBL330 Dual 24-pin, 90 deg. connectors, Right Side
Cable length = 1.0 Meter
IC693CBL321
IC693CBL331 Dual 24-pin, 90 deg. connectors, Left Side
Cable length = 2.0 Meters
IC693CBL322
IC693CBL332
Dual 24-pin, 90 deg. connectors, Right Side
Cable length = 2.0 Meters
IC693CBL322
IC693CBL333 Dual 24-pin, 90 deg. connectors, Left Side
Cable length = 0.5 Meter
IC693CBL323
IC693CBL334 Dual 24-pin, 90 deg. connectors, Right Side
Cable length = 0.5 Meter
IC693CBL323
Cable Kits
IC693CBK002 Cable Kit. Includes both the IC693CBL329 (left side) and IC693CBL330 (right
side) cables
IC693CBK003
Cable Kit. Includes both the IC693CBL331 (left side) and IC693CBL332 (right
side) cables
IC693CBK004 Cable Kit. Includes both the IC693CBL333 (left side) and IC693CBL334 (right
side) cables
Connector Depth
The following figure shows that the cable connectors extend 2” out from the face of the Series 90-
30 modules they are connected to. The depth of the cabinet that the PLC is mounted in should
allow for the 2” depth added by this connector.
2.0"
Series 90-30
I/O Module
Figure 10-41. Dimension for Depth of Connector
