GE 90*-30 PLC Series Installation And Hardware Manual

GFK-0356Q Chapter 4 Power Supplies 4-13
4

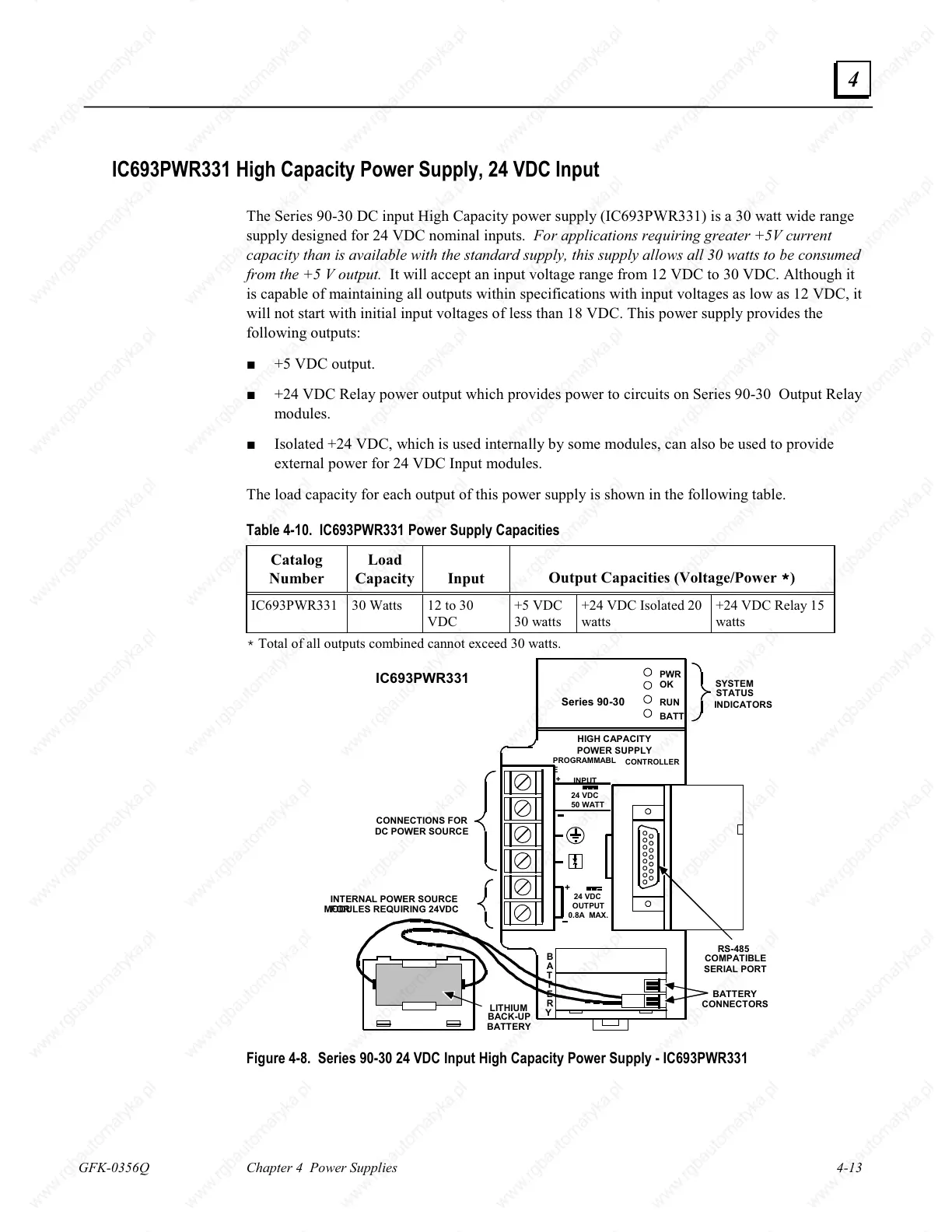

IC693PWR331 High Capacity Power Supply, 24 VDC Input
The Series 90-30 DC input High Capacity power supply (IC693PWR33) is a 30 watt wide range
supply designed for 24 VDC nominal inputs.
For applications requiring greater +5V current
capacity than is available with the standard supply, this supply allows all 30 watts to be consumed
from the +5 V output.
It will accept an input voltage range from 2 VDC to 30 VDC. Although it
is capable of maintaining all outputs within specifications with input voltages as low as 2 VDC, it
will not start with initial input voltages of less than 8 VDC. This power supply provides the
following outputs:
Ŷ +5 VDC output.
Ŷ +24 VDC Relay power output which provides power to circuits on Series 90-30 Output Relay
modules.
Ŷ Isolated +24 VDC, which is used internally by some modules, can also be used to provide
external power for 24 VDC Input modules.
The load capacity for each output of this power supply is shown in the following table.
Table 4-10. IC693PWR331 Power Supply Capacities
Catalog
Number
Load
Capacity Input
Output Capacities (Voltage/Power *)
IC693PWR33 30 Watts 2 to 30
VDC
+5 VDC
30 watts
+24 VDC Isolated 20
watts
+24 VDC Relay 5
watts
*
Total of all outputs combined cannot exceed 30 watts.
PROGRAMMABL
E
CONTROLLER
SYSTEM
STATUS
INDICATORS
+
PWR
OK
RUN
BATT
B
A
T
T
E
R
Y
LITHIUM
BACK-UP
BATTERY
BATTERY
CONNECTORS
RS-485
COMPATIBLE
SERIAL PORT
CONNECTIONS FOR
DC POWER SOURCE
INTERNAL POWER SOURCE
FOR
MODULES REQUIRING 24VDC
IC693PWR331
Series 90-30
POWER SUPPLY
24 VDC
OUTPUT
0.8A MAX.
HIGH CAPACITY
+
INPUT
24 VDC
50 WATT
Figure 4-8. Series 90-30 24 VDC Input High Capacity Power Supply - IC693PWR331
