Series 90-30 PLC Layout Example
1
2
3
4
8
6
7
5
9
10

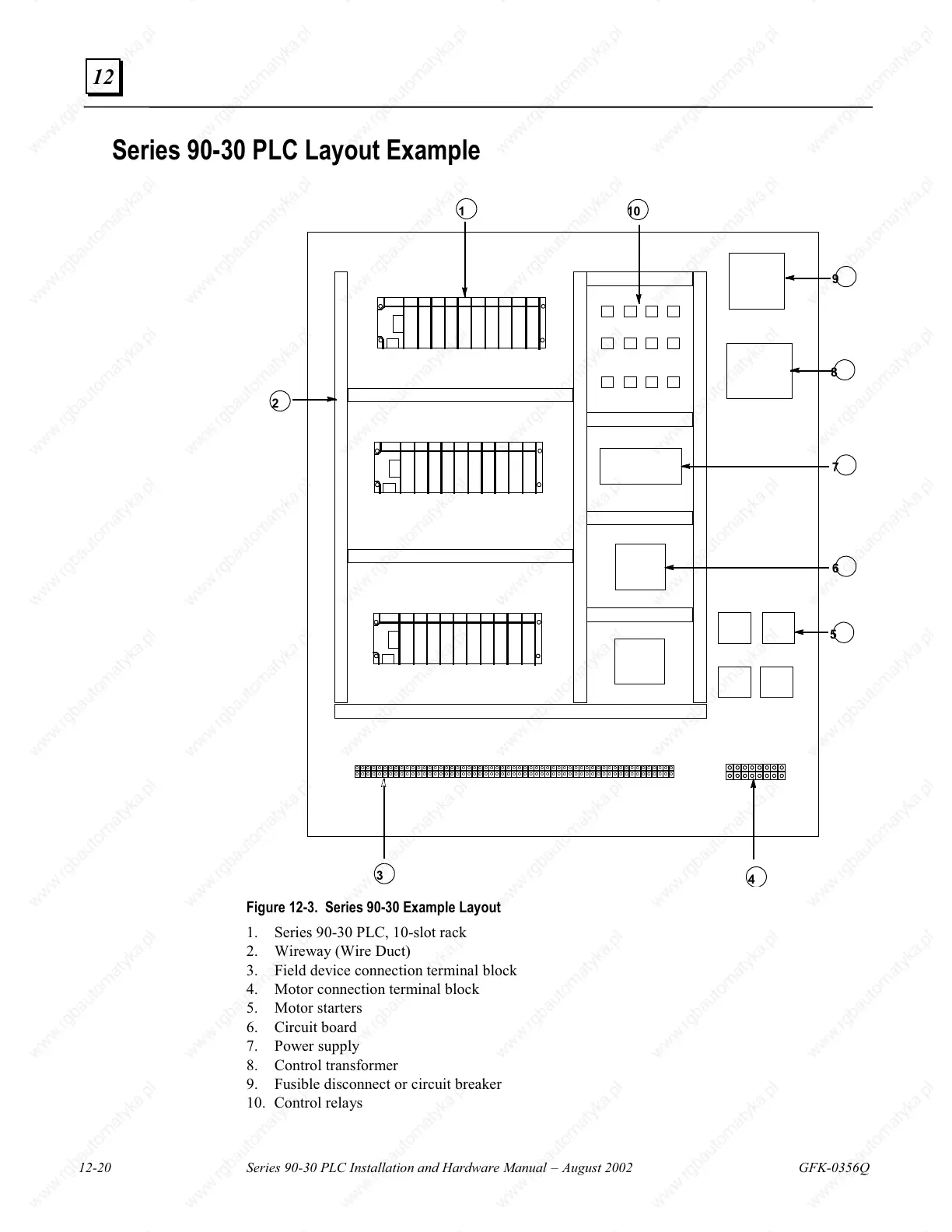

Figure 12-3. Series 90-30 Example Layout
1. Series 90-30 PLC, 10-slot rack
2. Wireway (Wire Duct)
3. Field device connection terminal block
4. Motor connection terminal block
5. Motor starters
6. Circuit board
7. Power supply
8. Control transformer
9. Fusible disconnect or circuit breaker
10. Control relays
