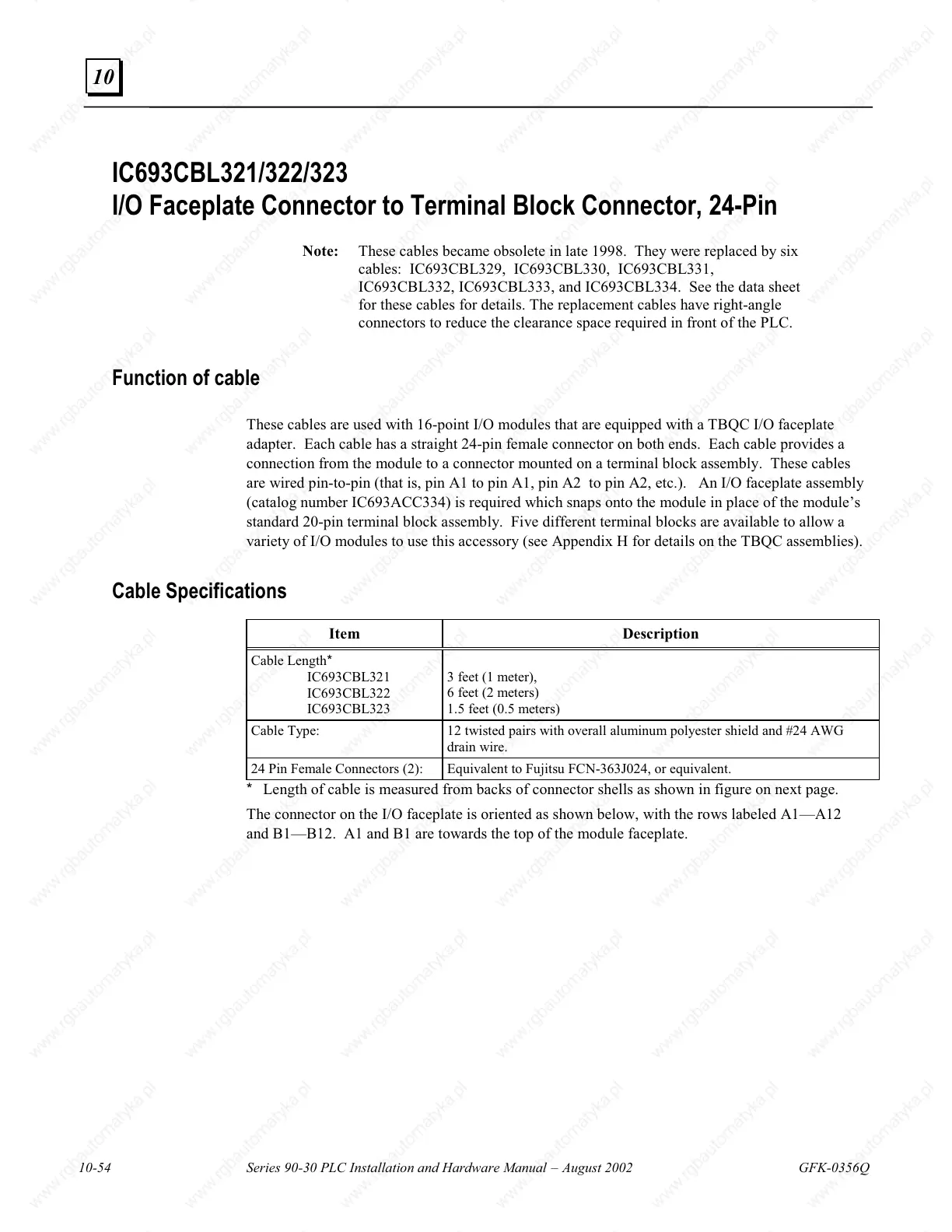

10-54 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
10
IC693CBL321/322/323
I/O Faceplate Connector to Terminal Block Connector, 24-Pin
Note: These cables became obsolete in late 1998. They were replaced by six
cables: IC693CBL329, IC693CBL330, IC693CBL331,
IC693CBL332, IC693CBL333, and IC693CBL334. See the data sheet
for these cables for details. The replacement cables have right-angle
connectors to reduce the clearance space required in front of the PLC.
Function of cable
These cables are used with 16-point I/O modules that are equipped with a TBQC I/O faceplate
adapter. Each cable has a straight 24-pin female connector on both ends. Each cable provides a
connection from the module to a connector mounted on a terminal block assembly. These cables
are wired pin-to-pin (that is, pin A1 to pin A1, pin A2 to pin A2, etc.). An I/O faceplate assembly
(catalog number IC693ACC334) is required which snaps onto the module in place of the module’s
standard 20-pin terminal block assembly. Five different terminal blocks are available to allow a
variety of I/O modules to use this accessory (see Appendix H for details on the TBQC assemblies).
Cable Specifications
Item Description
Cable Length*
IC693CBL321
IC693CBL322
IC693CBL323
3 feet (1 meter),
6 feet (2 meters)
1.5 feet (0.5 meters)
Cable Type: 12 twisted pairs with overall aluminum polyester shield and #24 AWG
drain wire.
24 Pin Female Connectors (2): Equivalent to Fujitsu FCN-363J024, or equivalent.
* Length of cable is measured from backs of connector shells as shown in figure on next page.
The connector on the I/O faceplate is oriented as shown below, with the rows labeled A1—A12
and B1—B12. A1 and B1 are towards the top of the module faceplate.
