Cables
GFK-0356Q Chapter 10 Cables 10-43
10

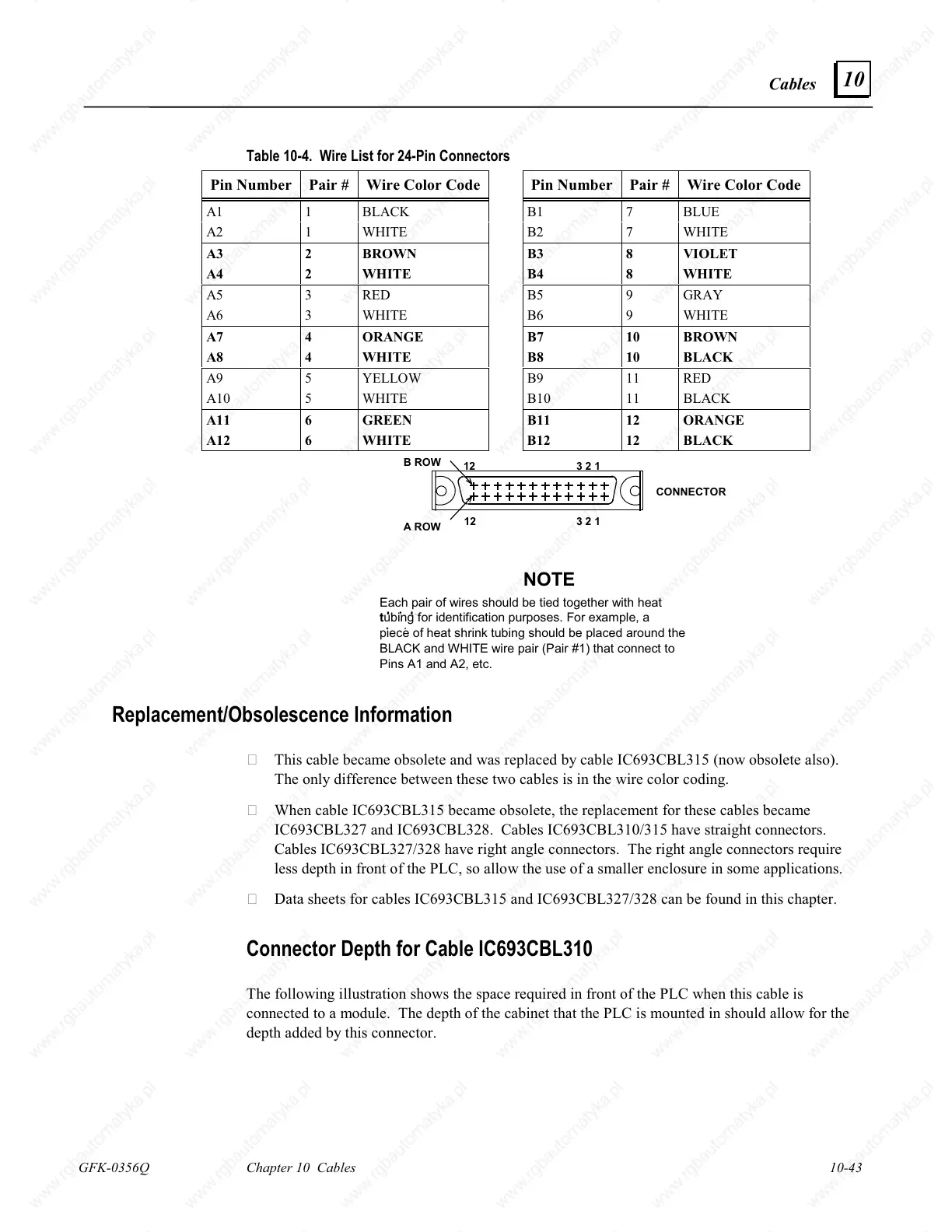

Table 10-4. Wire List for 24-Pin Connectors
Pin Number Pair # Wire Color Code Pin Number Pair # Wire Color Code
A1 1 BLACK B1 7 BLUE
A2 1WHITE B2 7WHITE
A3 2 BROWN B3 8 VIOLET
A4 2WHITE B4 8WHITE
A5 3RED B5 9GRAY
A6 3WHITE B6 9WHITE
A7 4 ORANGE B7 10 BROWN
A8 4 WHITE B8 10 BLACK
A9 5 YELLOW B9 11 RED
A10 5 WHITE B10 11 BLACK
A11 6 GREEN B11 12 ORANGE
A12 6 WHITE B12 12 BLACK
CONNECTOR
3 2 1
12
12
3 2 1
B ROW
A ROW
NOTE
Each pair of wires should be tied together with heat
ubing for identification purposes. For example, a
piece of heat shrink tubing should be placed around the
BLACK and WHITE wire pair (Pair #1) that connect to
Pins A1 and A2, etc.
Replacement/Obsolescence Information
 This cable became obsolete and was replaced by cable IC693CBL315 (now obsolete also).
The only difference between these two cables is in the wire color coding.
 When cable IC693CBL315 became obsolete, the replacement for these cables became
IC693CBL327 and IC693CBL328. Cables IC693CBL310/315 have straight connectors.
Cables IC693CBL327/328 have right angle connectors. The right angle connectors require
less depth in front of the PLC, so allow the use of a smaller enclosure in some applications.
 Data sheets for cables IC693CBL315 and IC693CBL327/328 can be found in this chapter.
Connector Depth for Cable IC693CBL310
The following illustration shows the space required in front of the PLC when this cable is
connected to a module. The depth of the cabinet that the PLC is mounted in should allow for the
depth added by this connector.
To Next Page
