GE 90*-30 PLC Series Installation And Hardware Manual

10-12 Series 90-30 PLC Installation and Hardware Manual – August 2002 GFK-0356Q
10

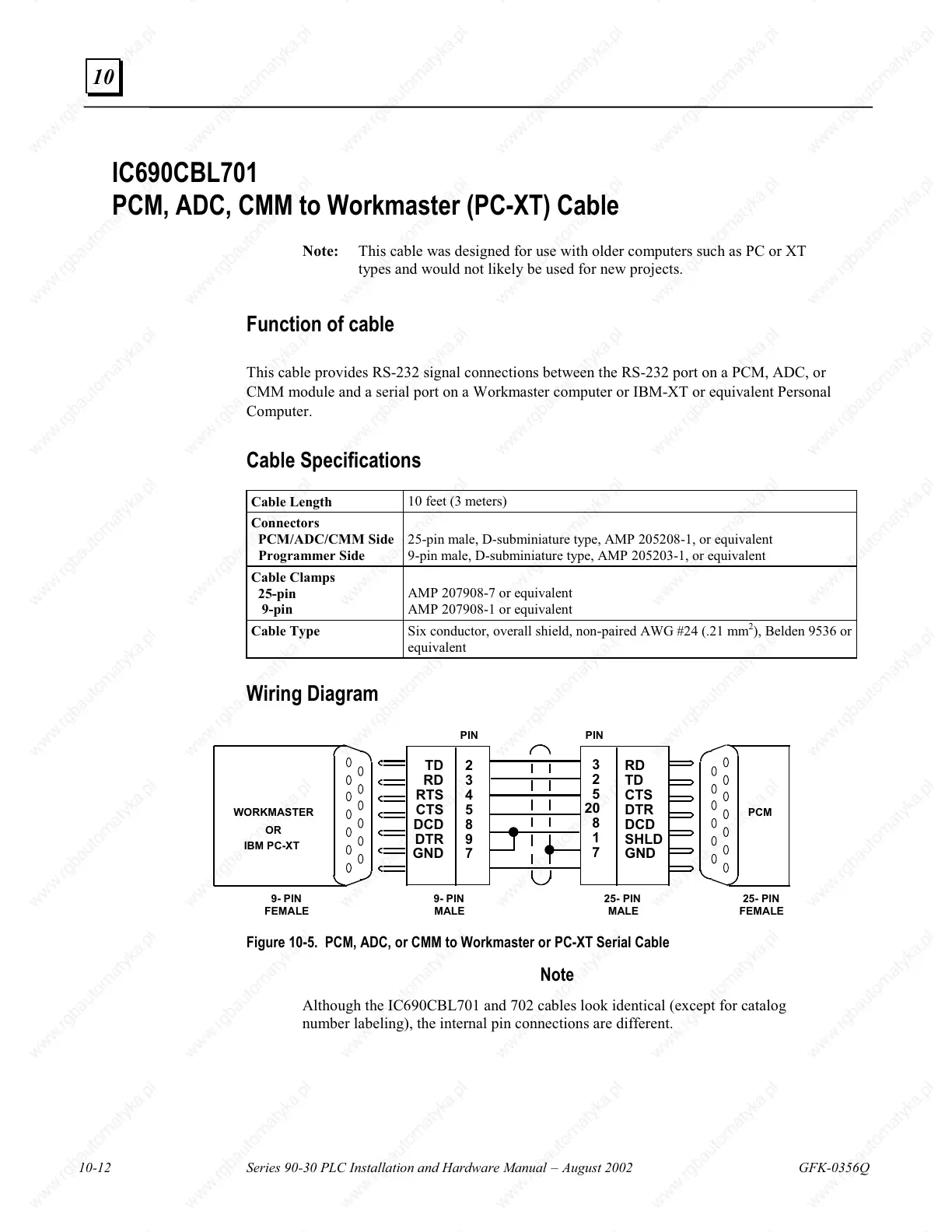

IC690CBL701
PCM, ADC, CMM to Workmaster (PC-XT) Cable
Note: This cable was designed for use with older computers such as PC or XT
types and would not likely be used for new projects.
Function of cable
This cable provides RS-232 signal connections between the RS-232 port on a PCM, ADC, or
CMM module and a serial port on a Workmaster computer or IBM-XT or equivalent Personal
Computer.
Cable Specifications
Cable Length
10 feet (3 meters)
Connectors
PCM/ADC/CMM Side
Programmer Side
25-pin male, D-subminiature type, AMP 205208-1, or equivalent
9-pin male, D-subminiature type, AMP 205203-1, or equivalent
Cable Clamps
25-pin
9-pin
AMP 207908-7 or equivalent
AMP 207908-1 or equivalent
Cable Type
Six conductor, overall shield, non-paired AWG #24 (.21 mm
2
), Belden 9536 or
equivalent
Wiring Diagram
2
3
4
5
8
9
7
TD
RD
RTS
CTS
DCD
DTR
GND
PIN
RD
TD
CTS
DTR
DCD
SHLD
GND
3
2
5
20
8
1
7
PIN
PCM
25- PIN
MALE
25- PIN
FEMALE
9- PIN
FEMALE
WORKMASTER
9- PIN
MALE
OR
IBM PC-XT
Figure 10-5. PCM, ADC, or CMM to Workmaster or PC-XT Serial Cable
Note
Although the IC690CBL701 and 702 cables look identical (except for catalog
number labeling), the internal pin connections are different.
