8-6 C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL
PROTECTION METHODS FOR CAPACITOR BANKS CHAPTER 8: APPLICATION OF SETTINGS
8

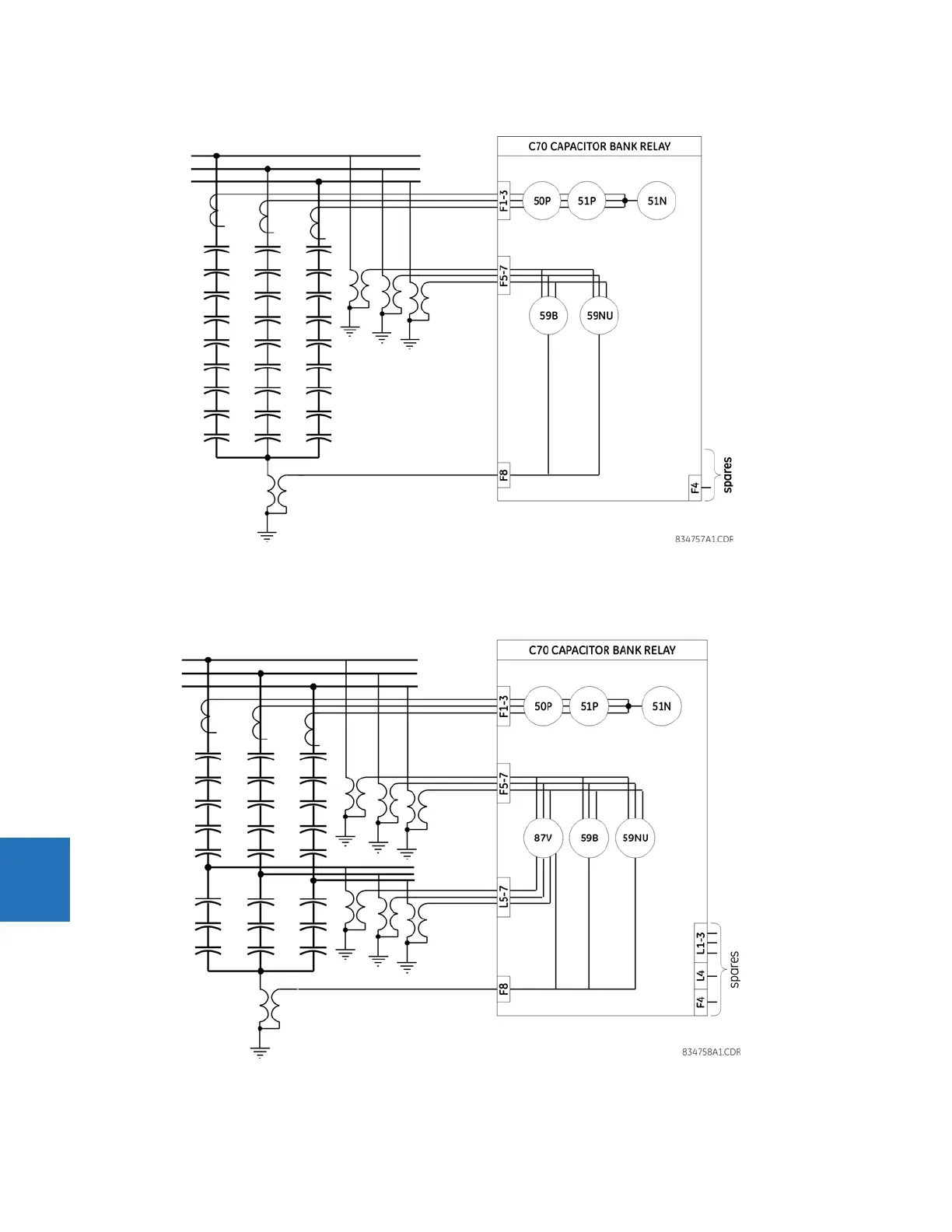

Figure 8-5: Single bank, ungrounded, no tap available
The following figure illustrates a single capacitor bank, ungrounded, with a tap. In this case, two CT/VT modules are
required.
Figure 8-6: Single bank, ungrounded, with a tap
