CHAPTER 8: APPLICATION OF SETTINGS PROTECTION METHODS FOR CAPACITOR BANKS
C70 CAPACITOR BANK PROTECTION AND CONTROL SYSTEM – INSTRUCTION MANUAL 8-7
8

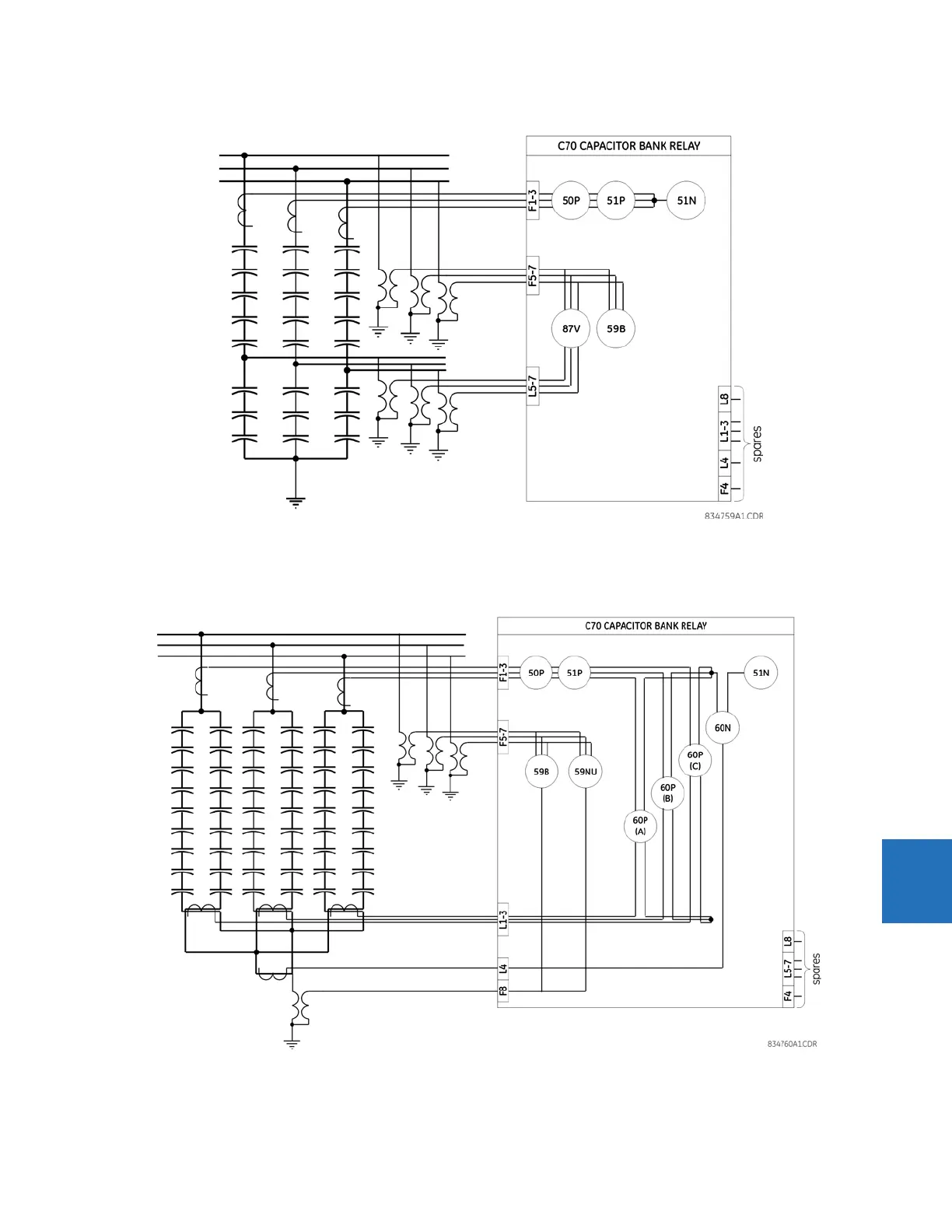

Figure 8-7: Single bank, grounded, with a tap
The following figure illustrates parallel capacitor banks, ungrounded, no tap available, and with current unbalance
protection. In this case, two CT/VT modules are required.
Figure 8-8: Parallel banks, ungrounded, no tap available, current unbalance protection
The following figure illustrates parallel capacitor banks, grounded, no tap available, and with current unbalance protection.
In this case, two CT/VT modules are required.
